Power Seat Switch: Service and Repair



AR91.29-P-0003RT Remove/Install Seat Adjustment Switch Unit On Front Seat

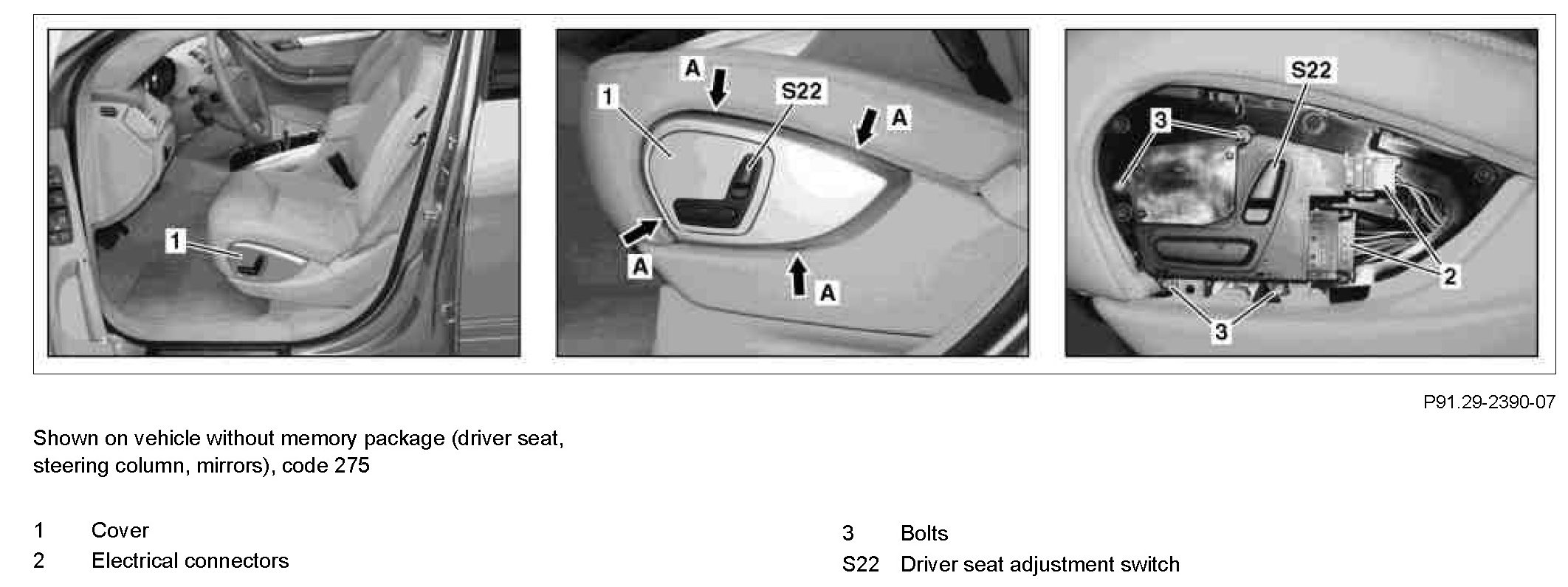

Component Identification:

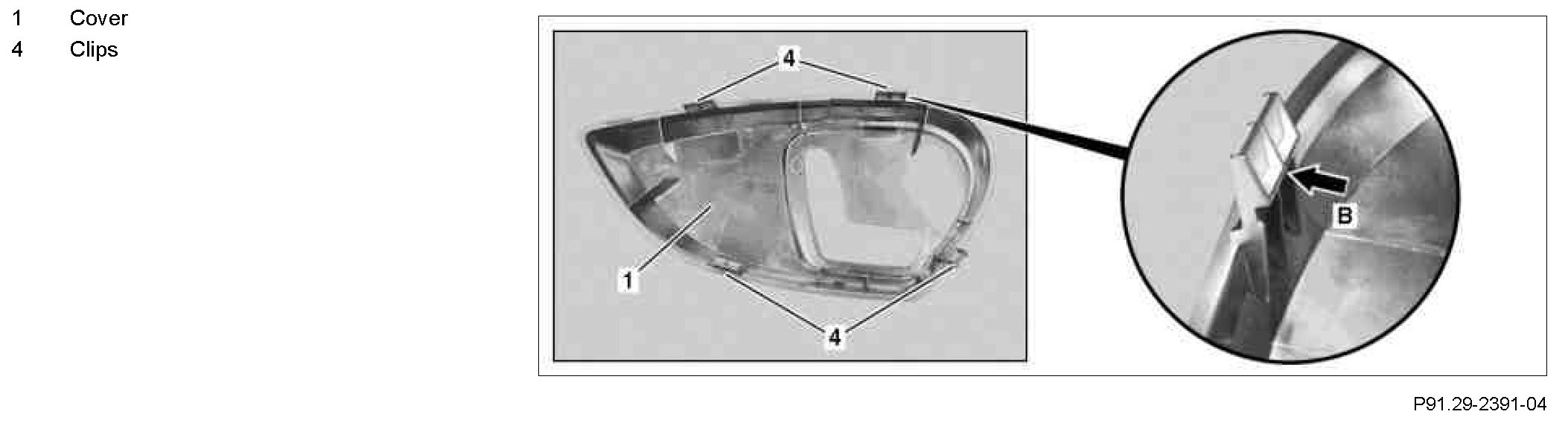

Component Identification:

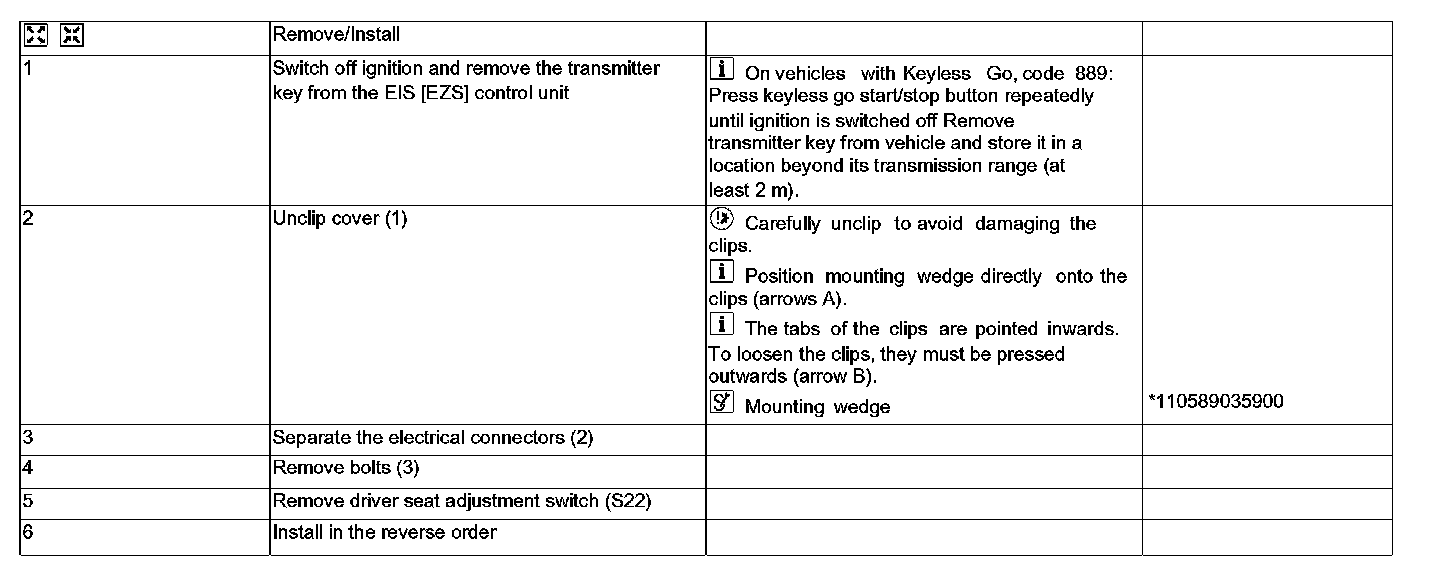

Steps 1 - 6:

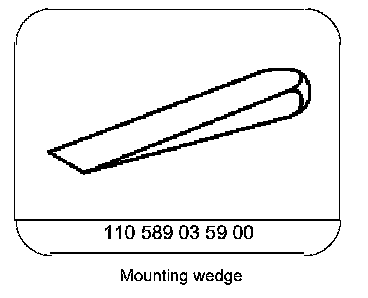

Special Tools:
