AR91.60-P-0750RT Remove/Install Frontal Acceleration Sensor



AR91.60-P-0750RT Remove/Install Frontal Acceleration Sensor

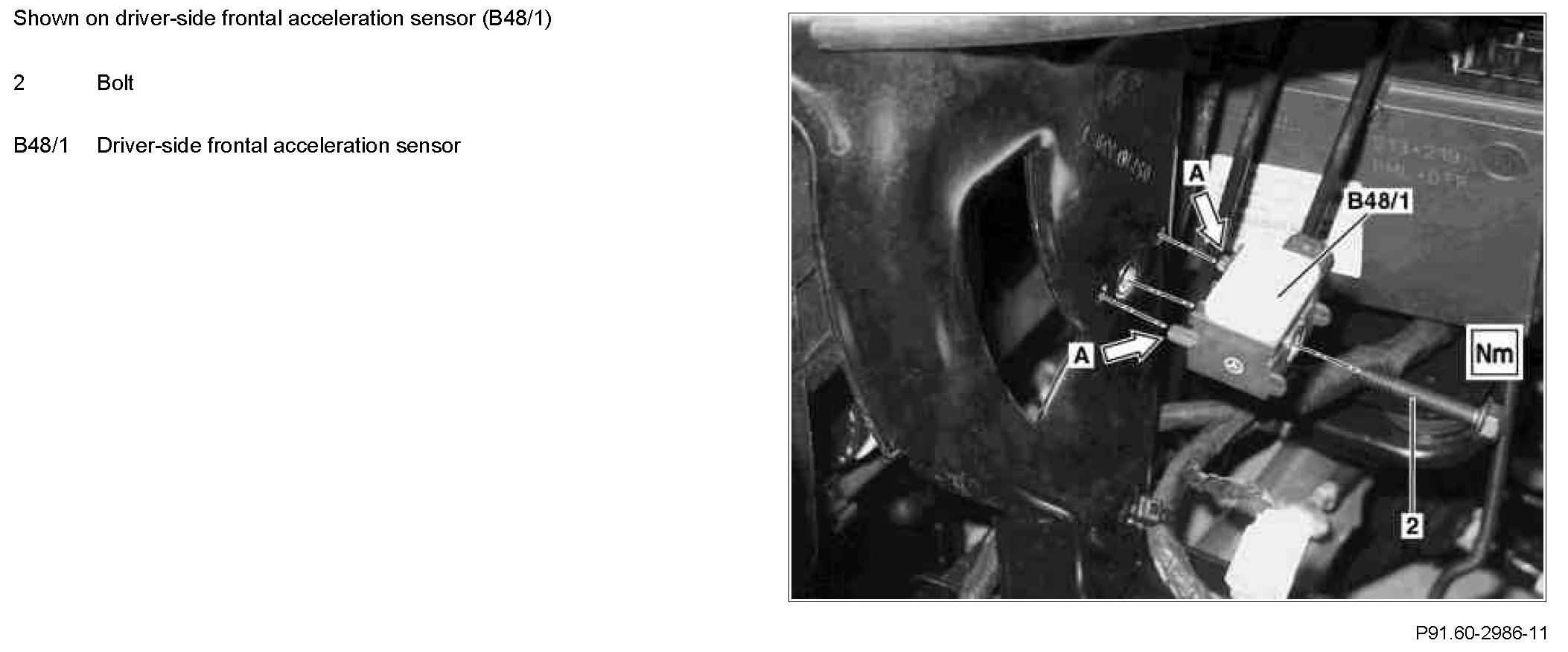

Component Identification:

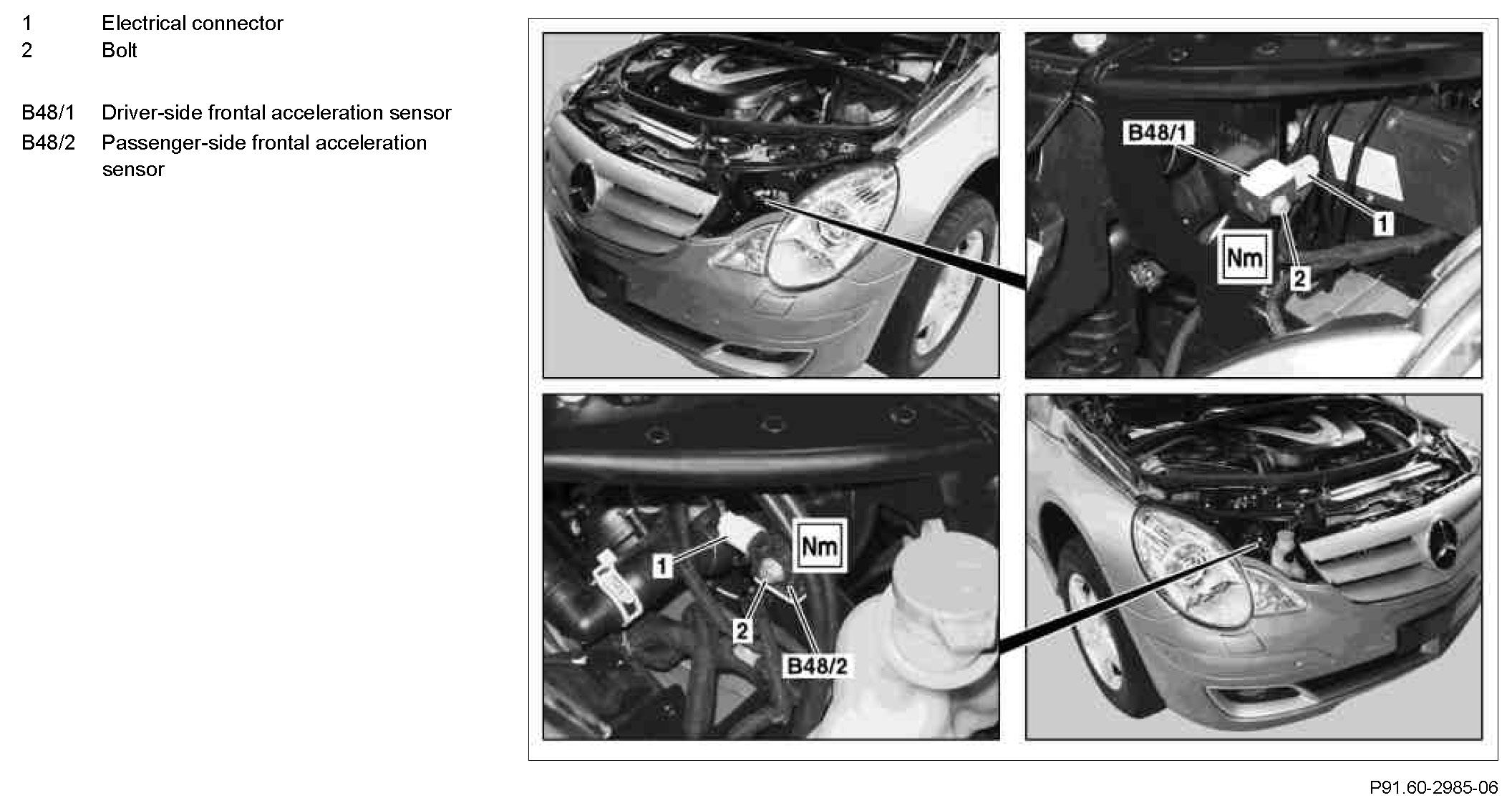

Component Identification:

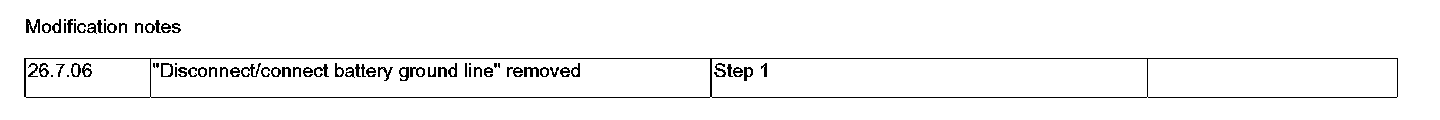

Modification Notes:

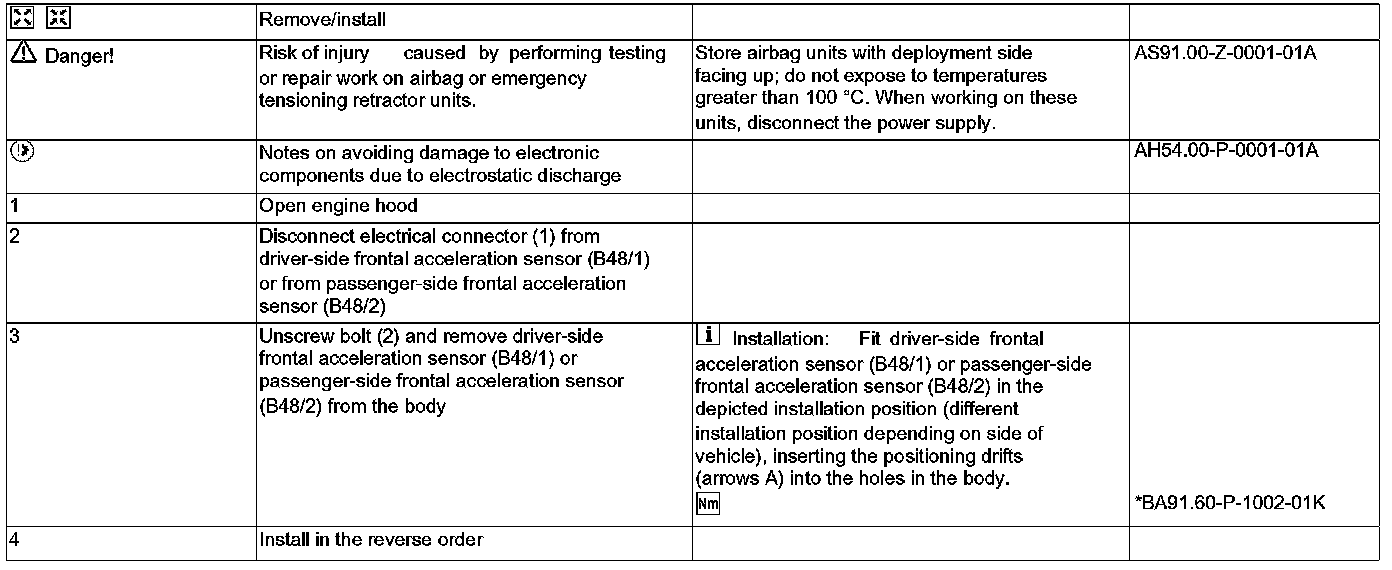

Steps 1 - 4:

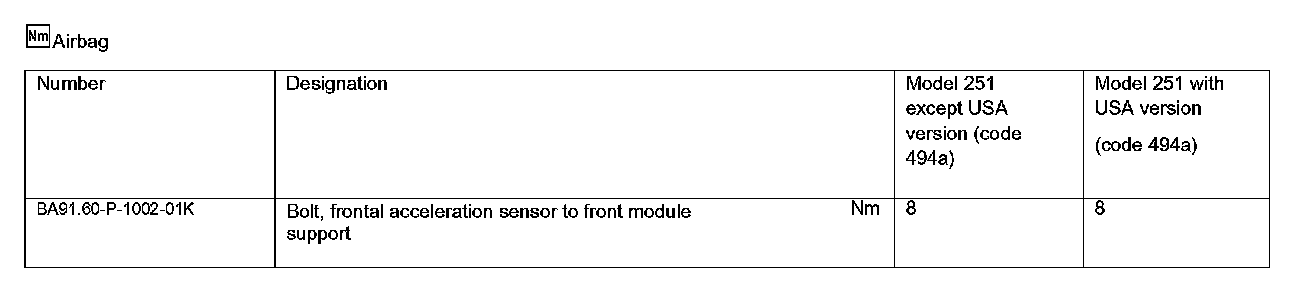

Airbag:
