Steering Column Control Module: Diagrams

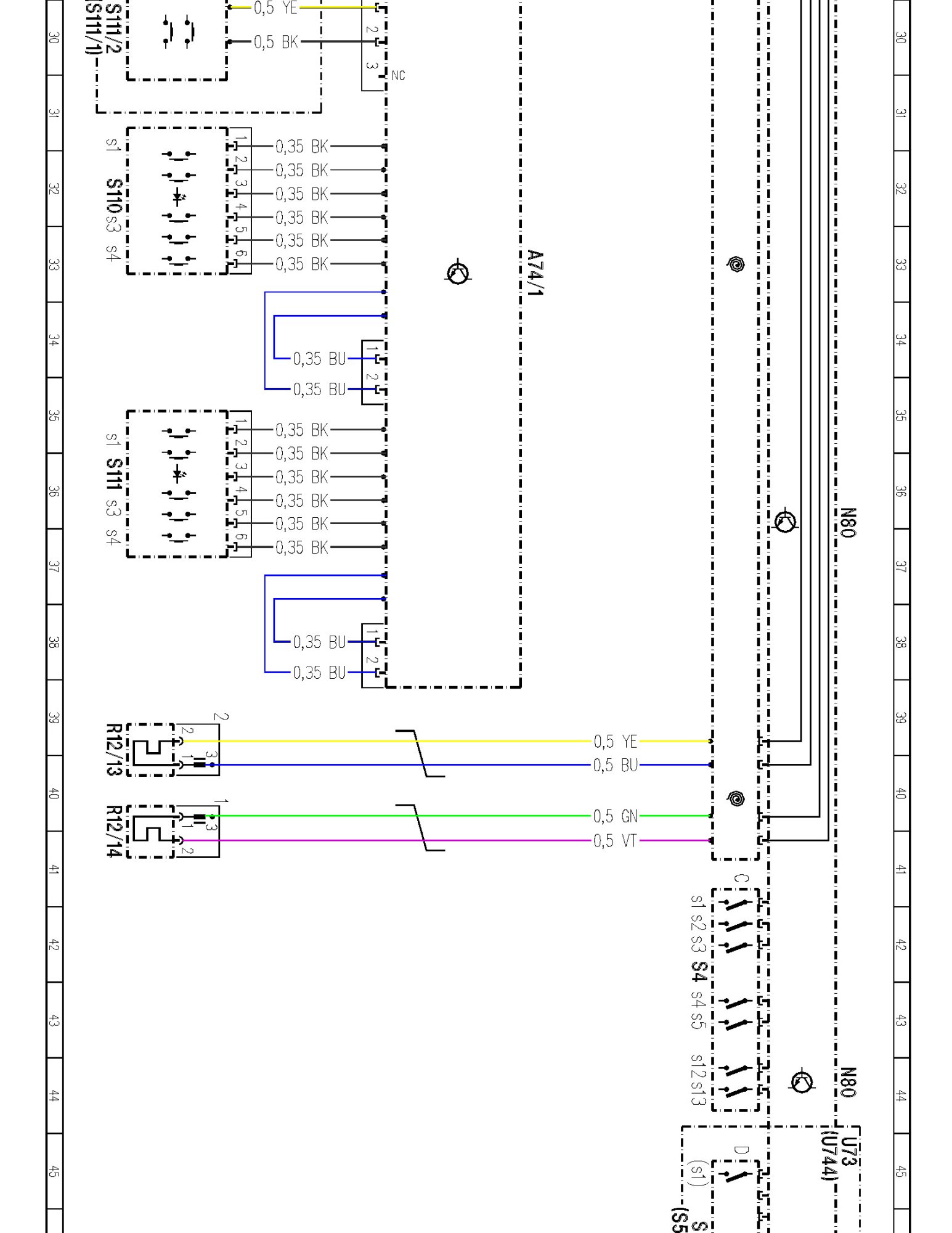

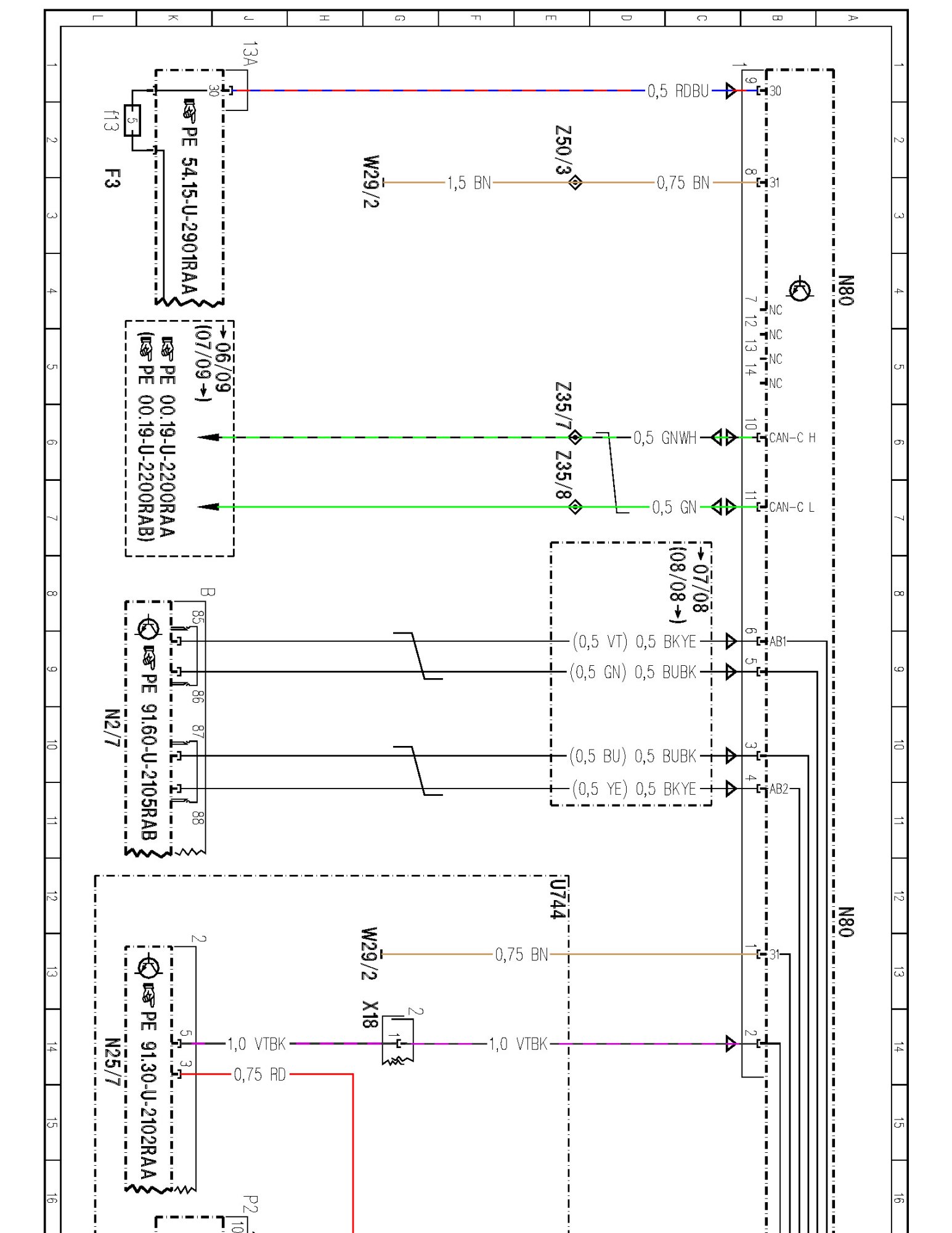

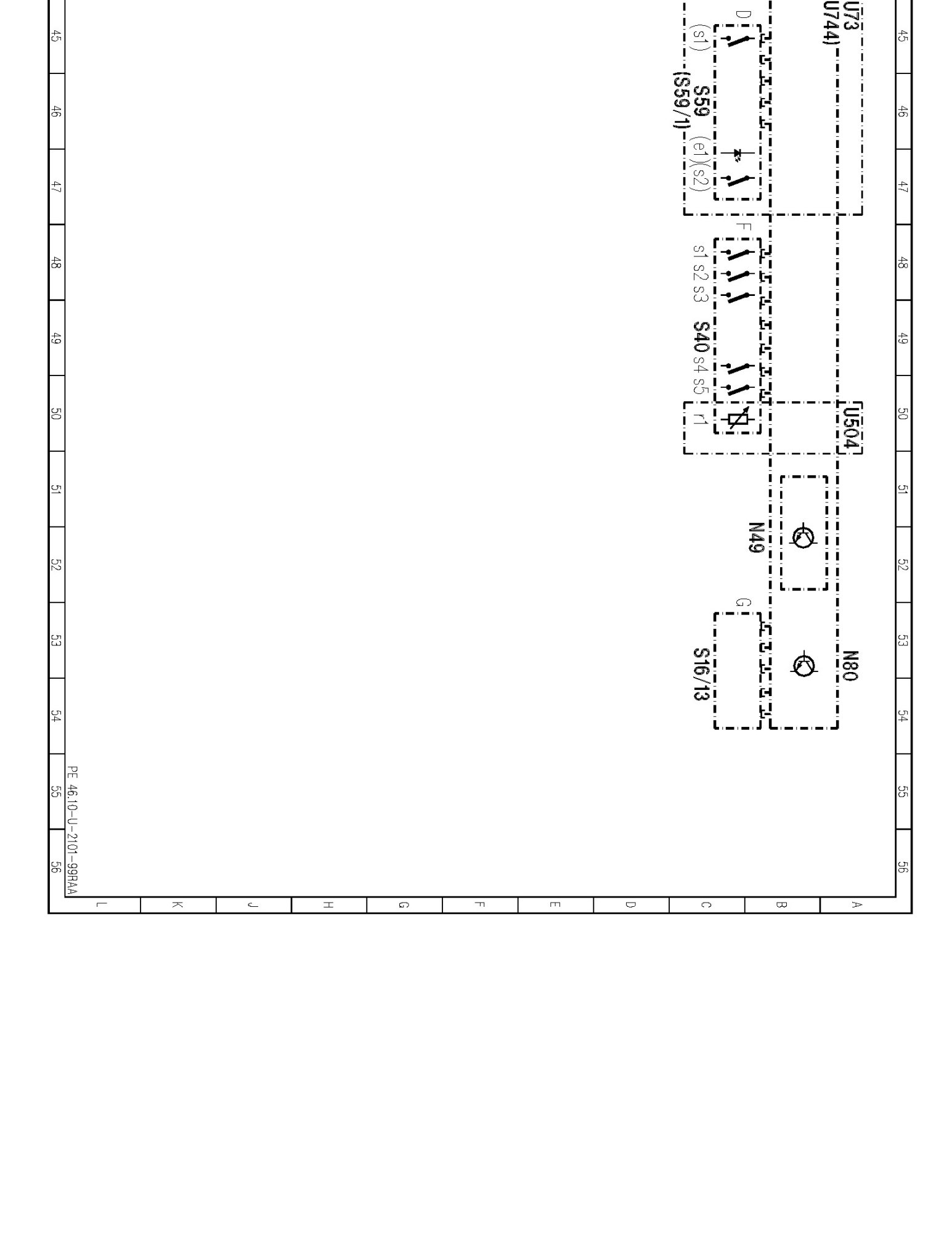

PE46.10-U-2101RAA Steering Column Module Control Module
- control module N80


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
