Auxiliary Cabin Heater Control Module: Service and Repair



AR83.70-P-0003RT Remove And Install Telestart Receiver
- with CODE (228) Stationary heater

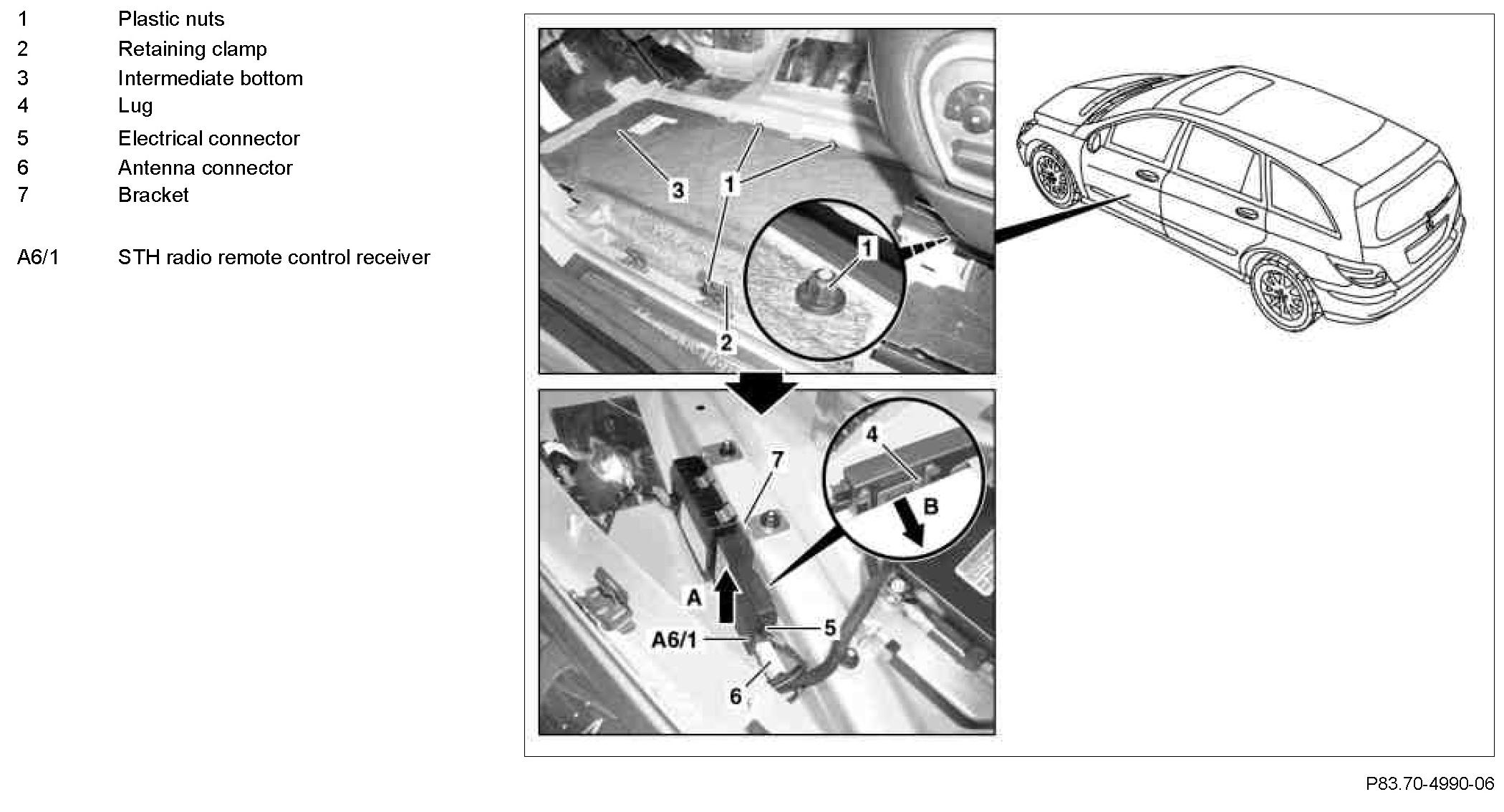

Component Identification:

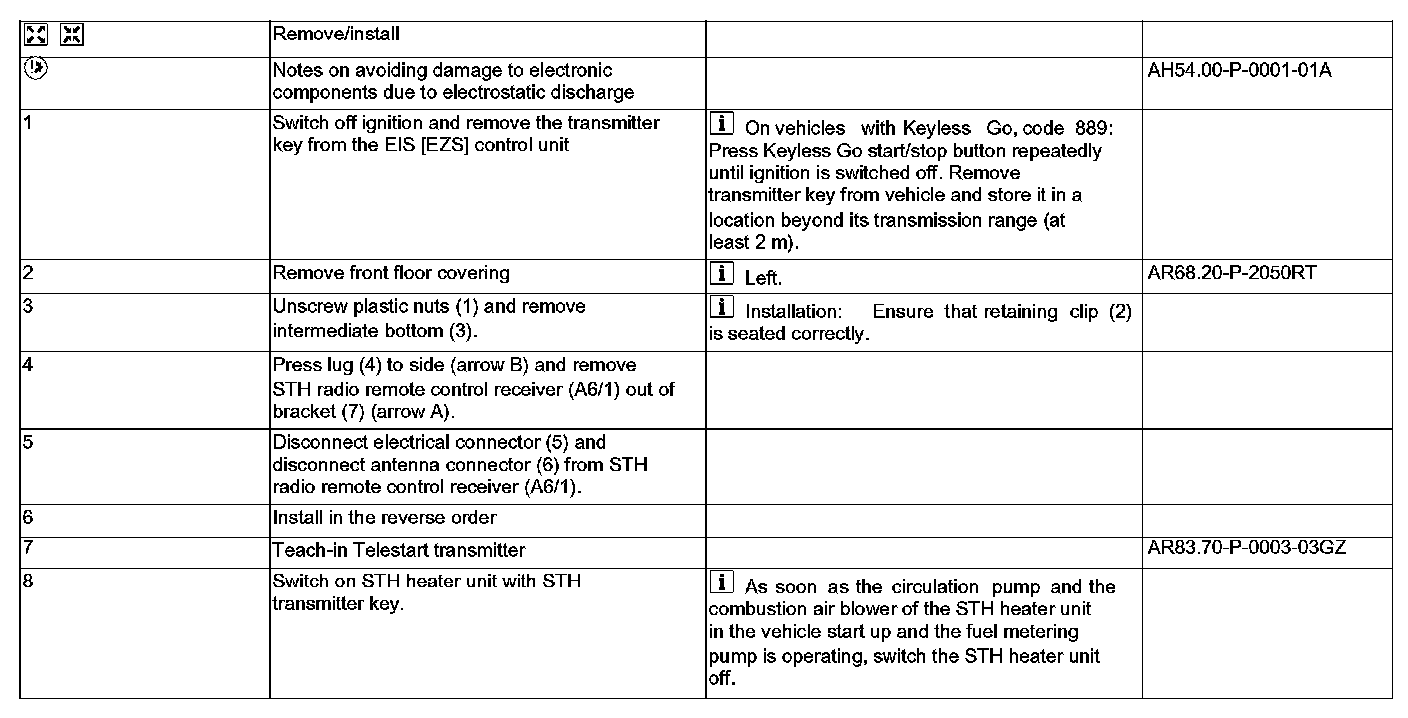

Steps 1 - 8:
