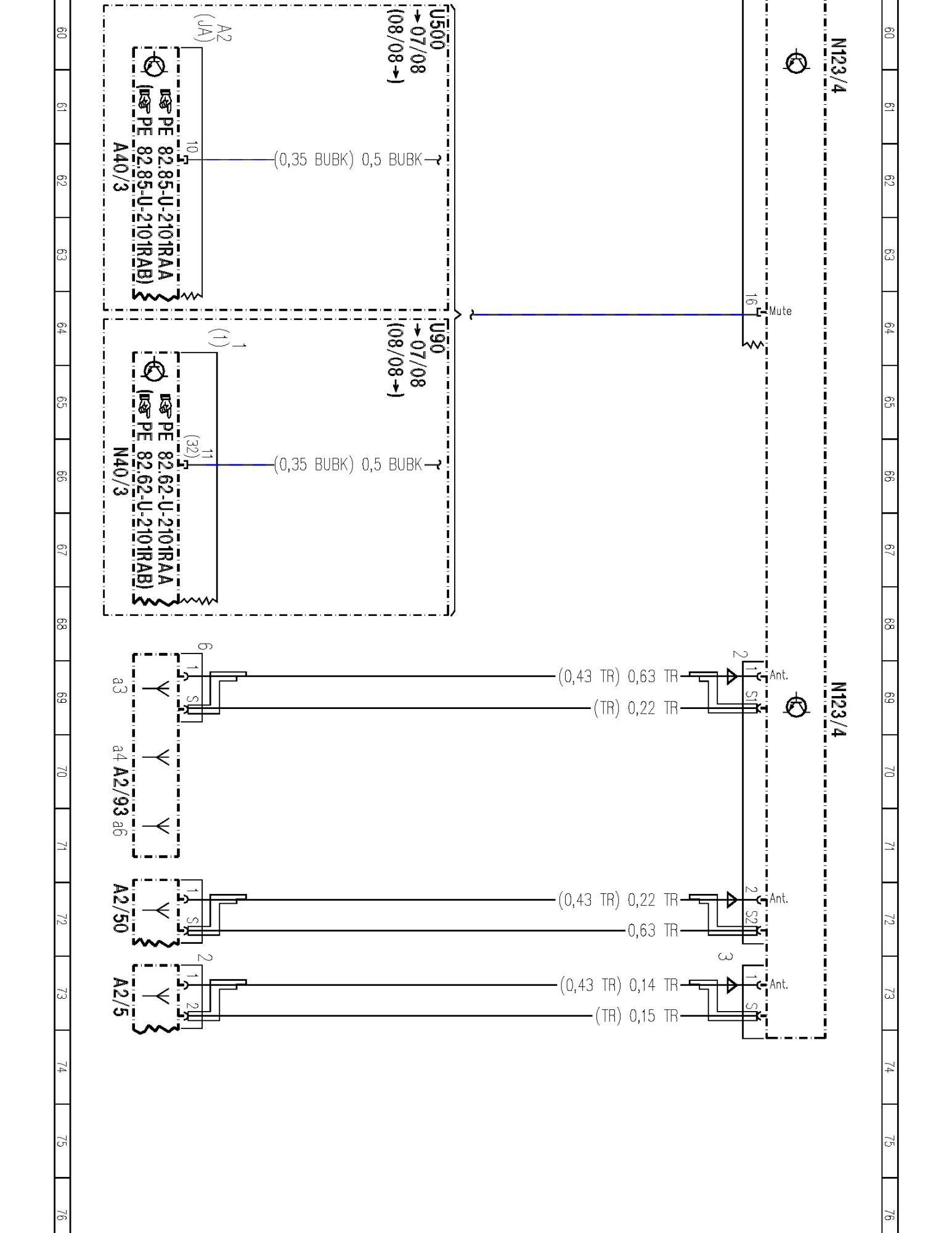

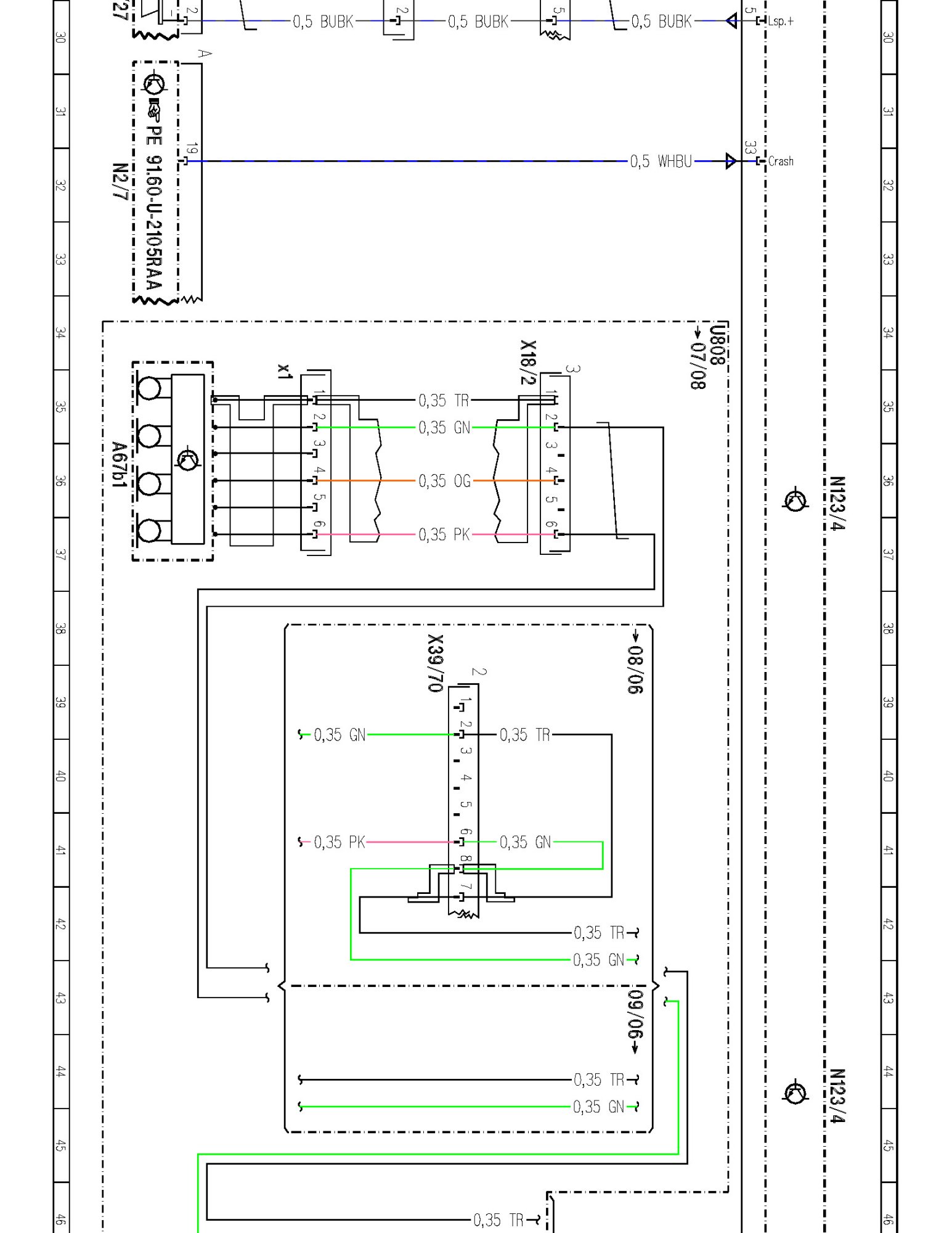

Electrical Diagrams

PE82.95-U-2101RAA Emergency Call System Control Module
- with CODE (358) TELE AID emergency call system
- control module N123/4

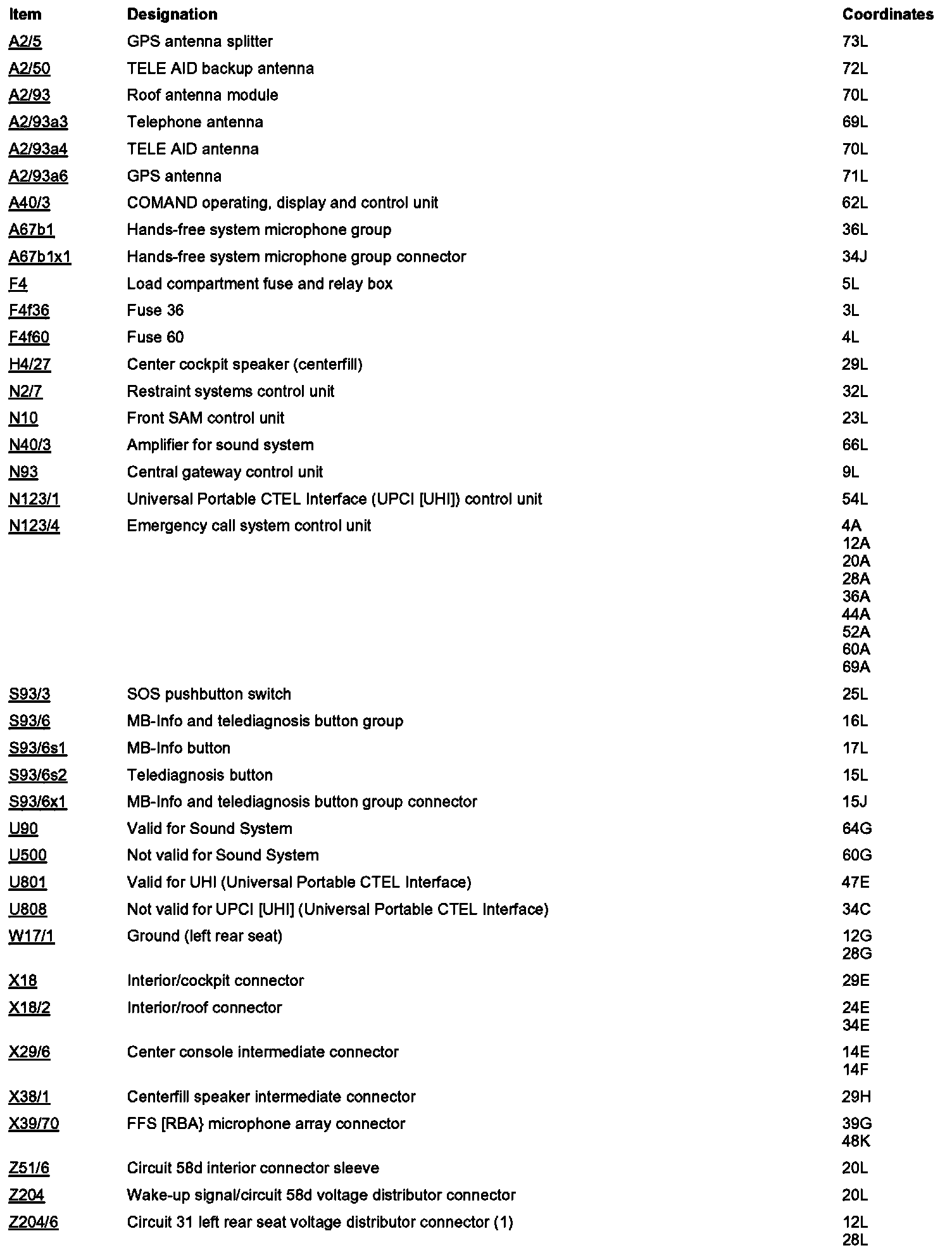

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
