AR65.10-P-9080-06RT Install Antenna Module Cover

AR65.10-P-9080-06RT Install Antenna Module Cover

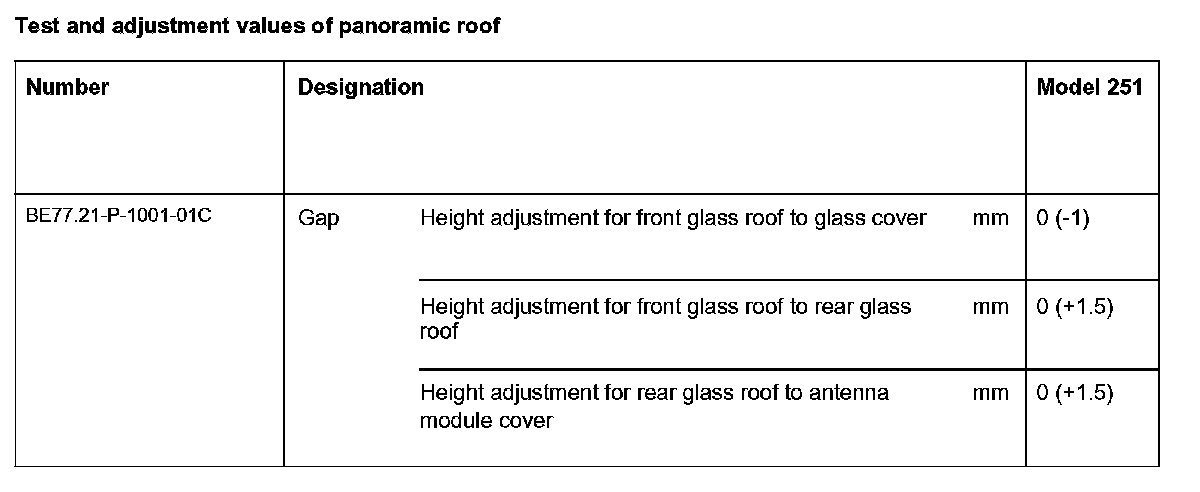

Test And Adjustment Values Of Panoramic Roof:

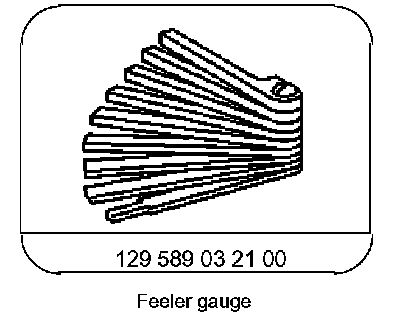

Special Tools:

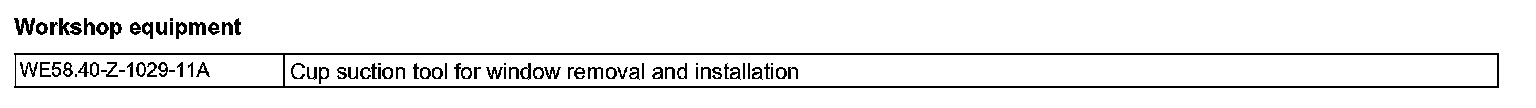

Workshop Equipment:

Install antenna module cover (1) on adhesive bead within 5 minutes of applying glue to body before adhesive force of glue starts decreasing.

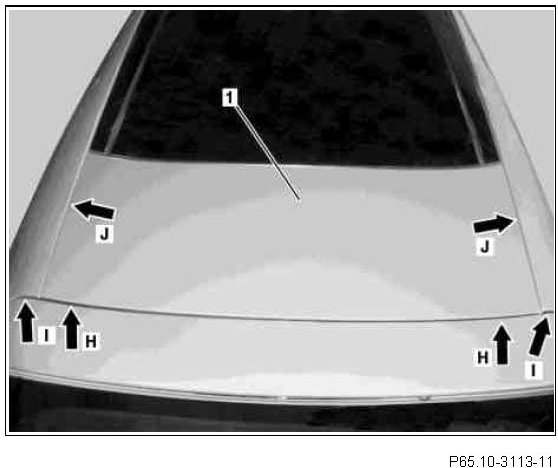

1. Position antenna module cover (1) above cutout with aid of helper and carefully lay down onto adhesive bead.
2. Lightly press antenna module cover (1) to rear of glass roof.

Observe test and adjustment values for panoramic roof.

3. Adjust intervals on left and right (H and I)
4. Center intervals on left and right (J).

Remove contamination caused by the adhesive immediately.

5. Carefully remove cup suction tool.
