AR65.10-P-9080-05RT Apply Adhesive Material To Antenna Module Cover

AR65.10-P-9080-05RT Apply Adhesive Material To Antenna Module Cover

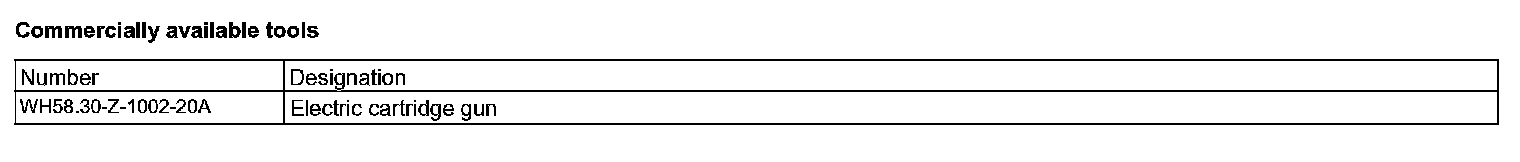

Commercially Available Tools:

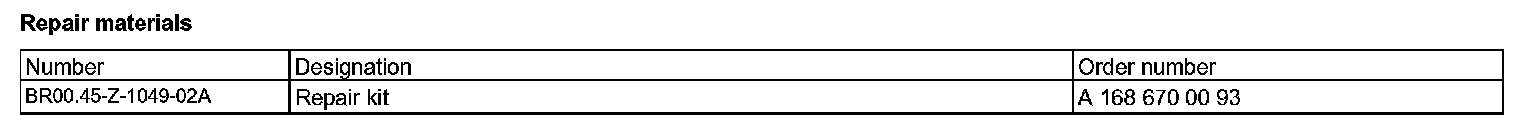

Repair Materials:

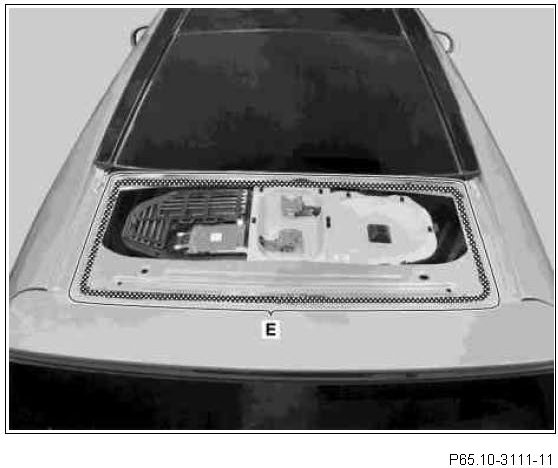

Wear cotton gloves. Ensure that no fingerprints are present in the area of the gluing surface (area E).

1. Cut triangular opening of application nozzle so that glue can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
2 Guide application nozzle along gluing surface (area E) on body flange; press out adhesive evenly.

Remove contamination caused by the adhesive immediately. Completely remove excess adhesive from cartridges immediately after application and dispose of as per local regulations.
