AR65.10-P-9080-04RT Prepare Antenna Module Cover For Installation

AR65.10-P-9080-04RT Prepare Antenna Module Cover For Installation

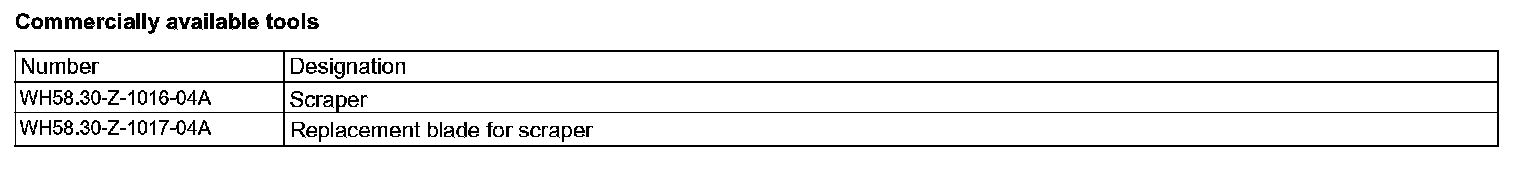

Commercially Available Tools:

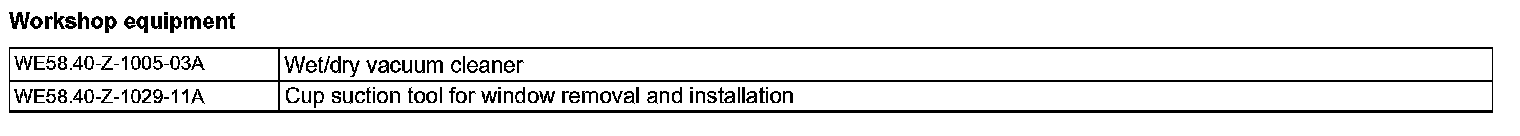

Workshop Equipment:

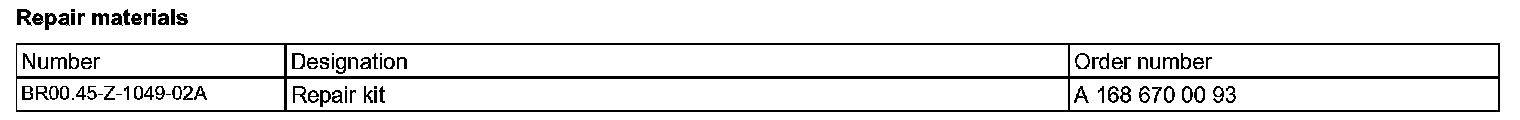

Repair Materials:

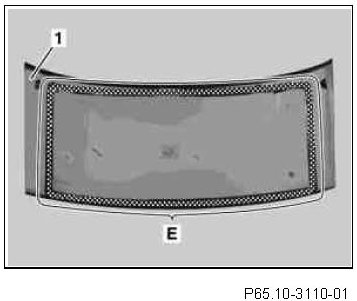

Wear cotton gloves. Ensure that no fingerprints are present in the area of the gluing surface (area E). To prevent adhesion problems when glazing, keep gluing surface (area E) free of dust, oil, grease, wax, dirt residues and other anti-adhesive components.

1. Check antenna module cover (1) for damage.
2. Install suction cup on outside of antenna module cover (1) and place antenna module cover (1) (with inside facing upwards) on suitable support.
3. Apply glass activator to gluing surface (area E) on antenna module cover (1) with part of the paper towel and wipe with remaining paper towel.

Apply glass activator only to black gluing surface (area E). If glass activator gets onto transparent areas wipe off immediately. Allow glass activator to dry completely.

4. Apply glass primer to gluing surface (area E) on antenna module cover (1) using application rod provided and allow to air-dry completely (airing time at least 10 minutes).
