PE27.19-U-2103RAA Fully Integrated Transmission Control Control Unit



PE27.19-U-2103RAA Fully Integrated Transmission Control Control Unit
- TRANSMISSION 722.9
- Control module Y3/8

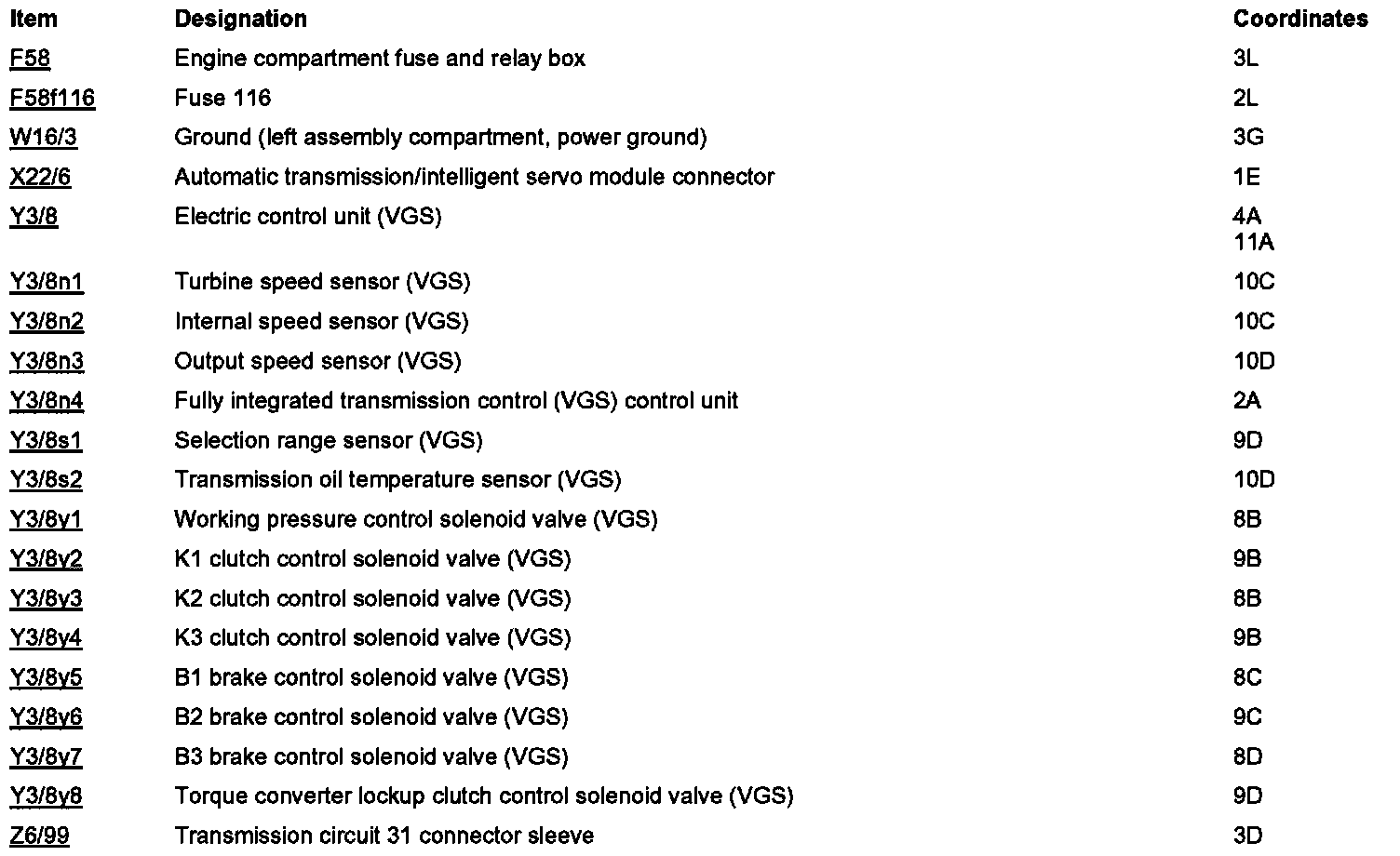

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
