AR07.04-P-0012GZC Remove/Install Pressure Differential Sensor (DPF)



AR07.04-P-0012GZC Remove/Install Pressure Differential Sensor (DPF)
- For a CAT/DPF assembly


Component Identification:

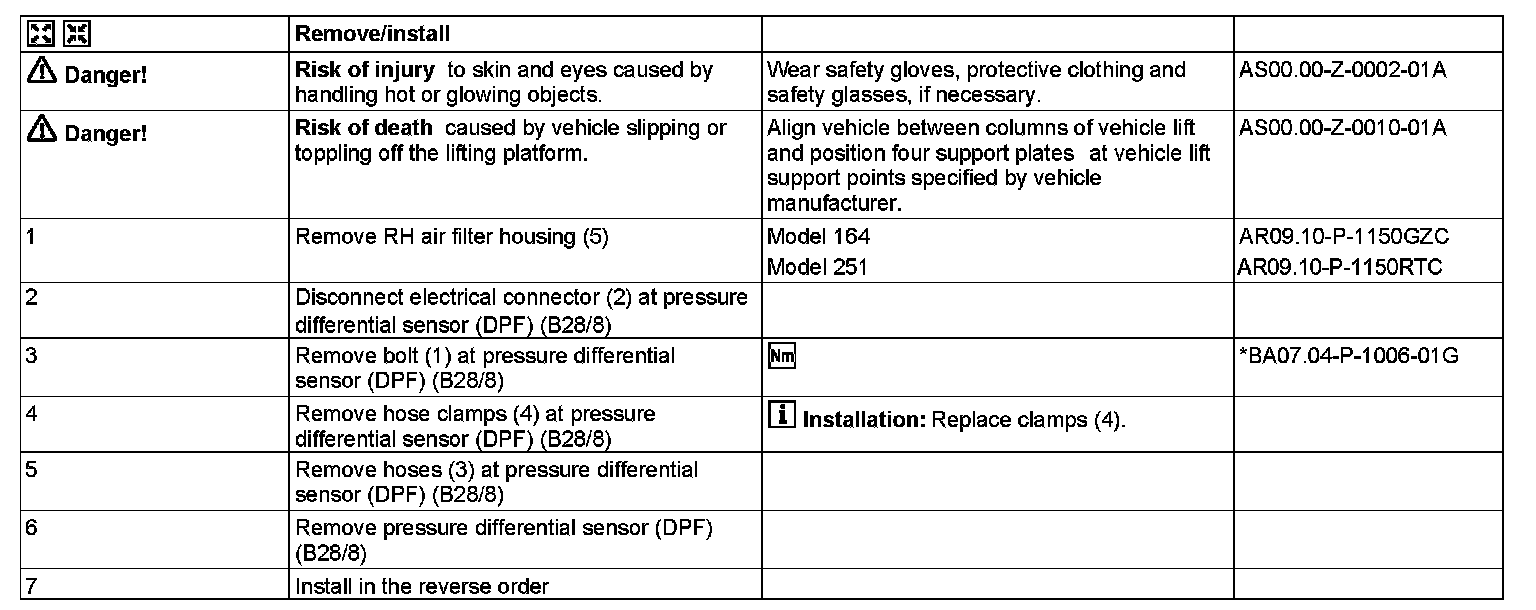

Steps 1 - 7:

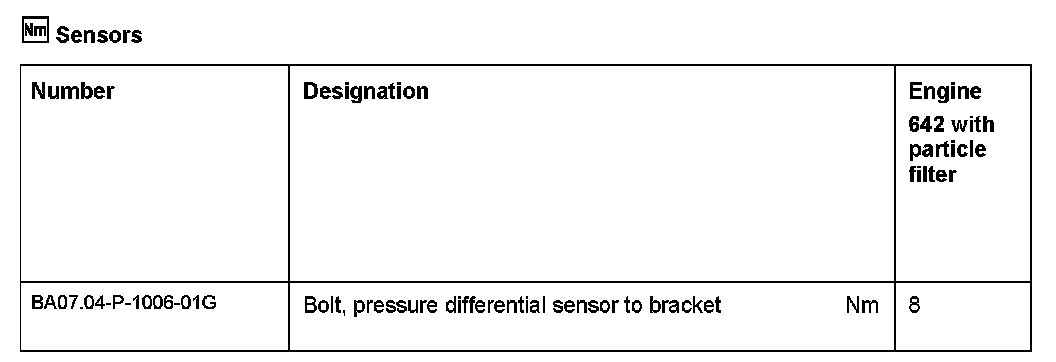

Sensors:
