AR07.04-P-0012GZB Remove, Install Pressure Differential Sensor (DPF)



AR07.04-P-0012GZB Remove, Install Pressure Differential Sensor (DPF)

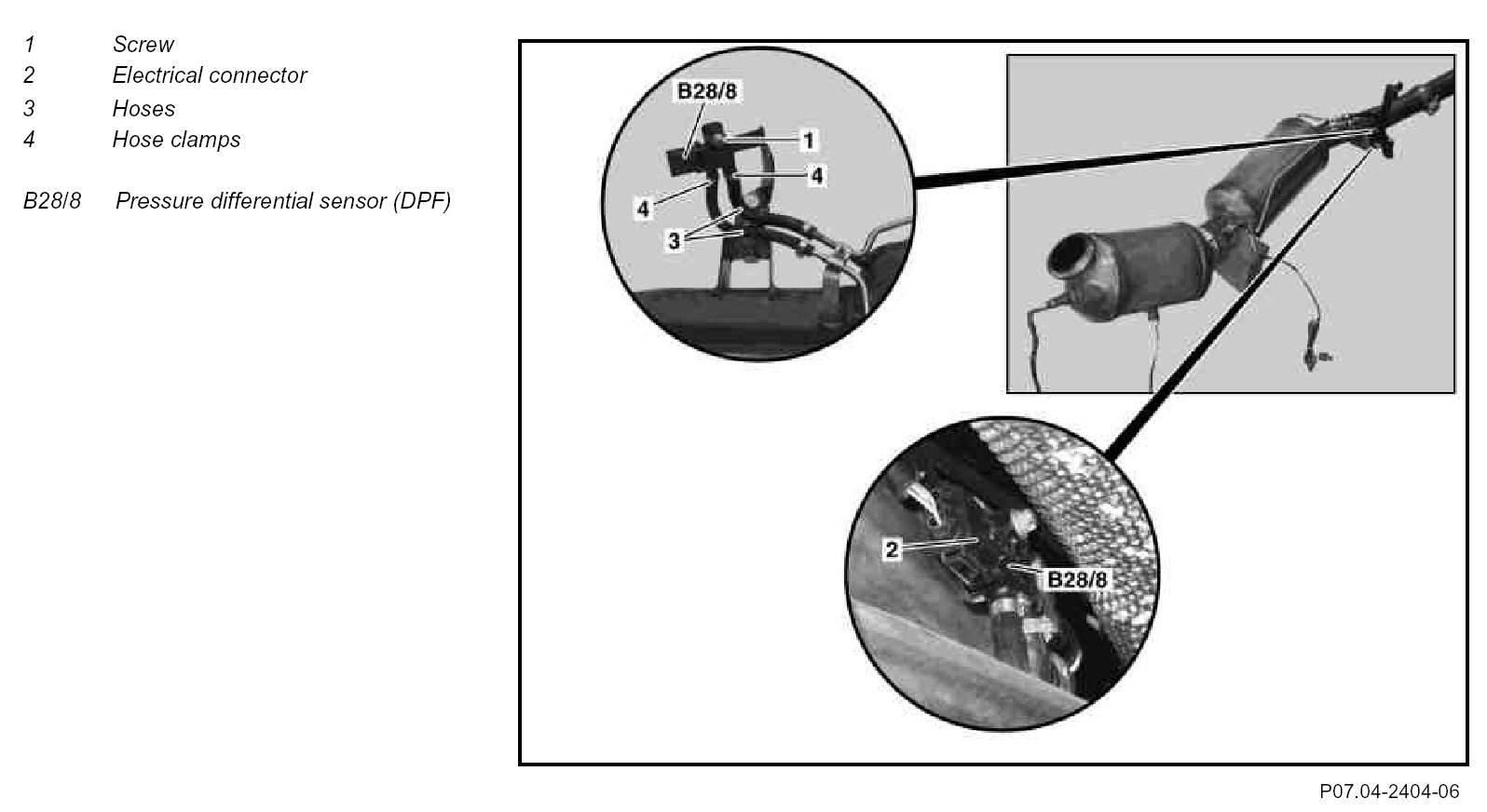

Component Identification:

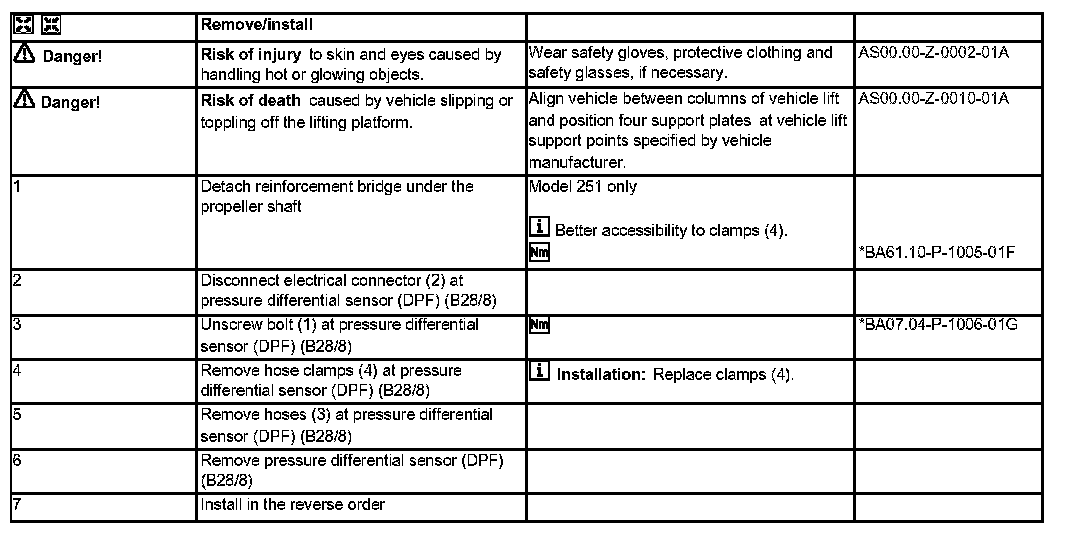

Steps 1 - 7:

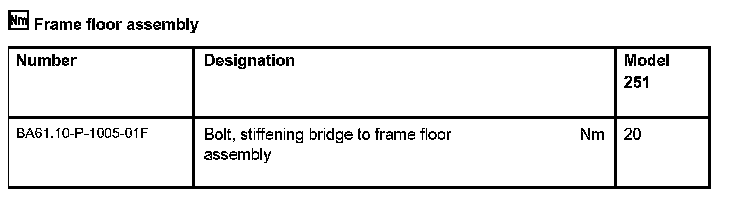

Frame Floor Assembly:

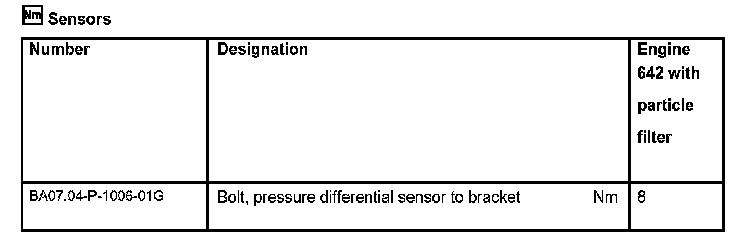

Sensors:
