AR09.41-P-6817RTB Removing/Installing The Charge Air Cooler



AR09.41-P-6817RTB Removing/Installing The Charge Air Cooler


Component Identification:

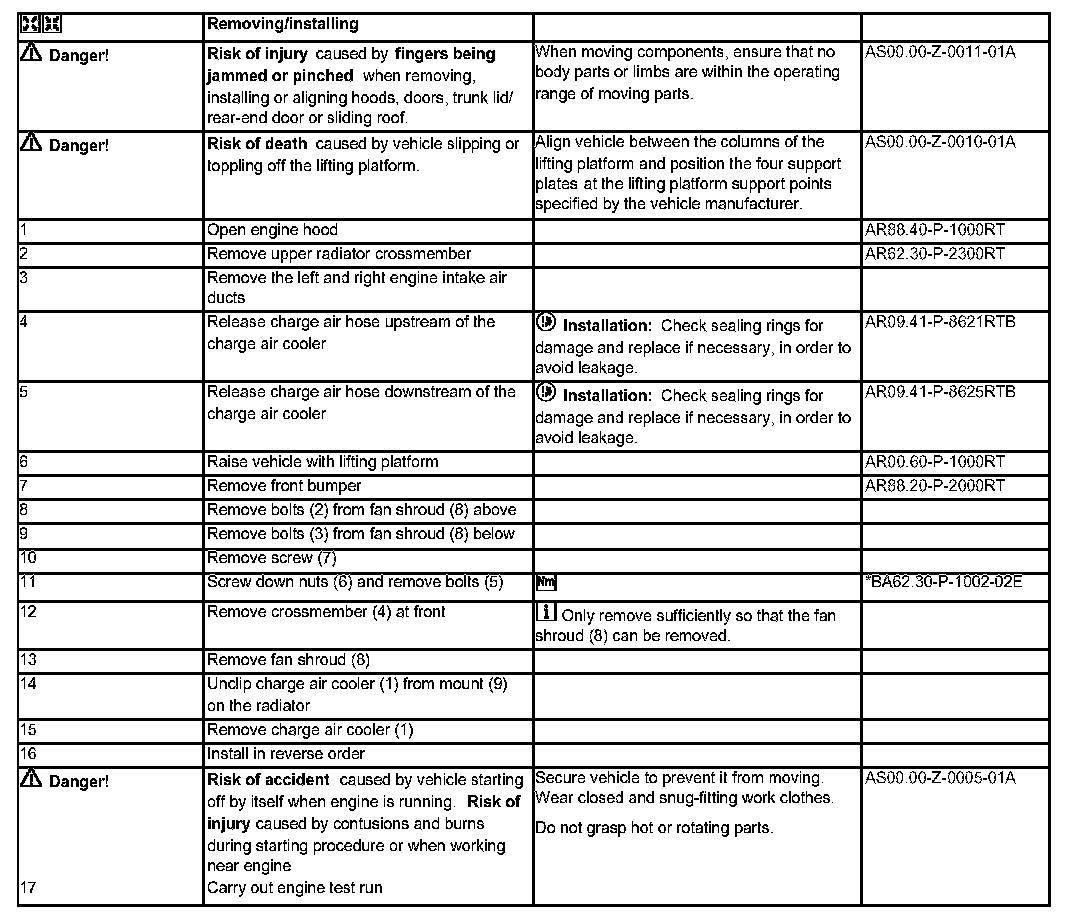

Steps 1 - 17:

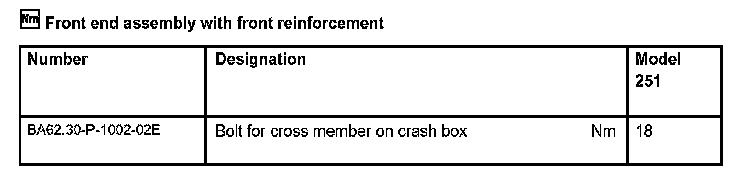

Front End Assembly With Front Reinforcement:
