AR07.16-P-1090GZB Remove/Install Common Rail Diesel Injection (CDI) Coolant Temperature Sensor



AR07.16-P-1090GZB Remove/Install Common Rail Diesel Injection (CDI) Coolant Temperature Sensor

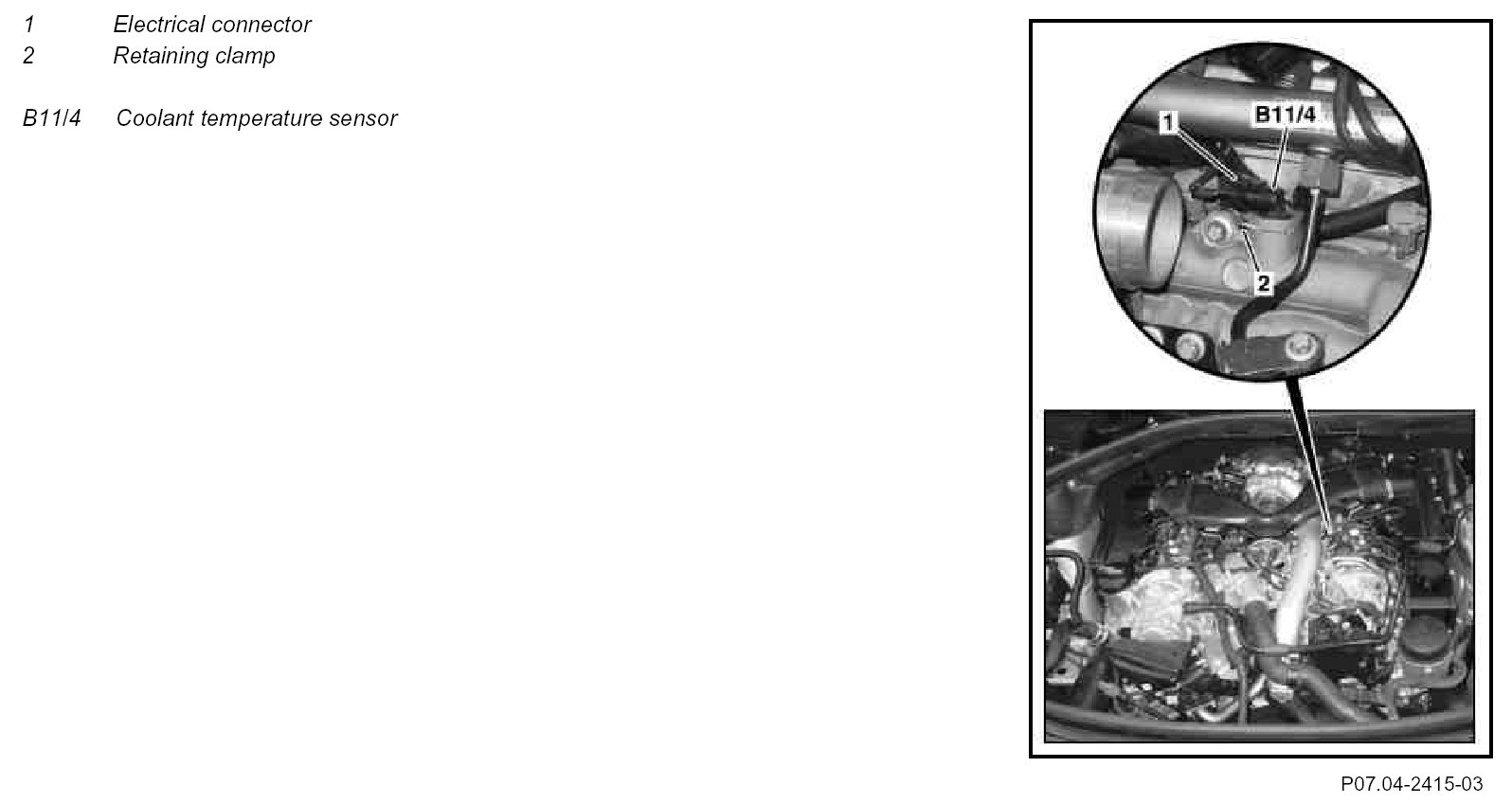

Component Identification:

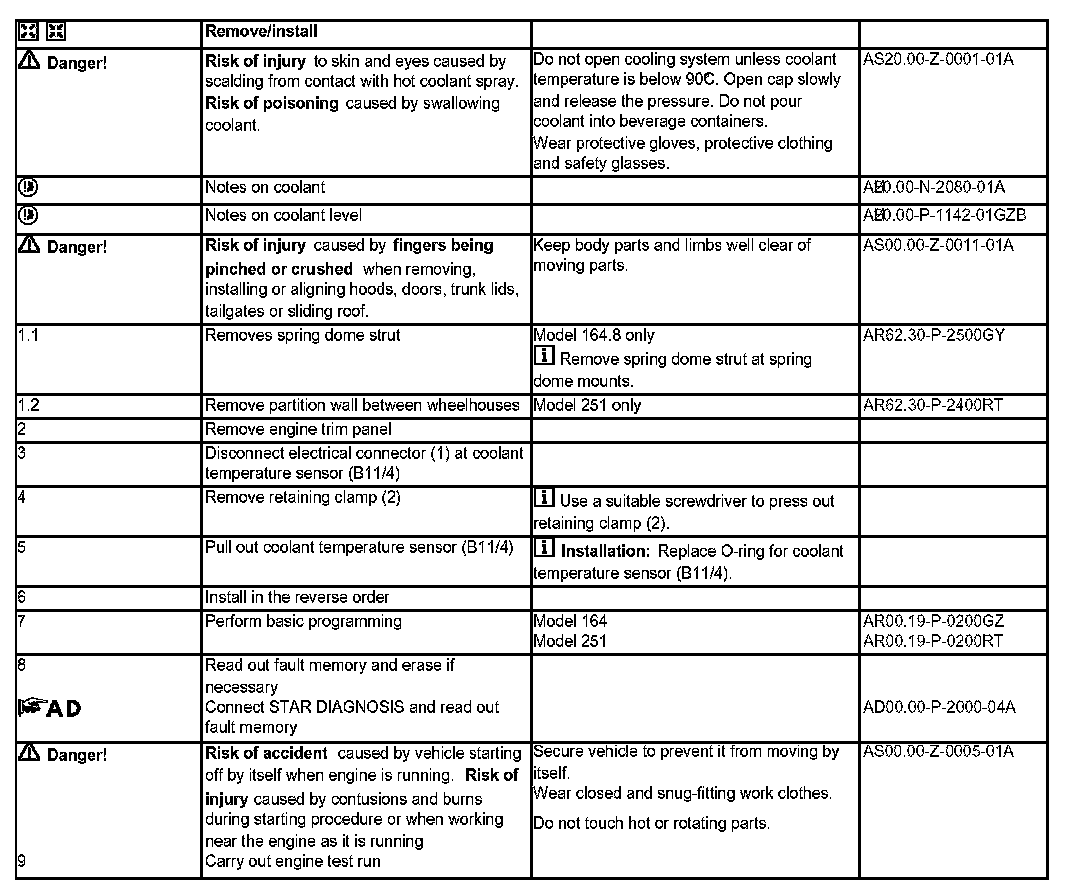

Steps 1.1 - 9:
