GF00.20-P-0004-02RT Active Service System (ASSYST Plus), Driver Information

GF00.20-P-0004-02RT Active Service System (ASSYST PLUS), Driver Information

Load service indicator through driver request
- Transmitter key (A8/1) in position "circuit 15R ON", "circuit 15 ON" or when en route
- Press the system selection button (S110s3) repeatedly until the multifunction display (A1p13) shows the basic display (total and trip odometer) (it is only necessary if the basic display is not yet shown).
- Press the scroll forward/back pushbutton (S110s1) until the service symbol and the current remaining driven distance, remaining time reading or service exceeded is displayed.

Remaining distance
This information is shown in the multifunction display when the service display is manually loaded, or when the warning threshold has been reached.
This information is not shown when the time-based servicing scheme is active. This can be the case for vehicles with low annual mileage.







Remaining time
This information is shown in the multifunction display for vehicles with low annual mileage when the service display is manually loaded, or when the warning threshold has been reached.

In most cases the remaining distance is displayed.







Service interval expired (remaining distance or remaining time expired)
This service information is shown as soon as the service interval has expired. The remaining distance or remaining time is then 0 km or 0 miles or 0 days. These values are not displayed.

If the service interval has been exceeded by more than 100 km or 50 miles or 1 day, this display is replaced by the following display.







Service interval exceeded (remaining distance exceeded)
This service information is shown as soon as the service interval (remaining distance) has been exceeded by more than 100 km or 50 miles.

This does not appear if the time-based servicing scheme (remaining time) is active. This can be the case for vehicles with low annual mileage.

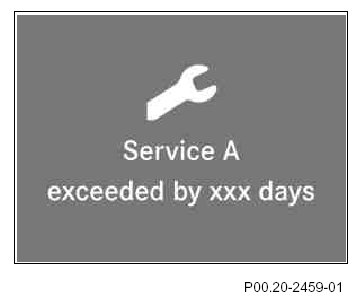

Service interval exceeded (remaining time exceeded)
This service information appears as soon as the service interval (remaining time) is exceeded by more than 1 day.

It is not shown when the remaining distance is active.
