AR49.10-P-7280RTB Remove/Install Exhaust System From Flange Connection



AR49.10-P-7280RTB Remove/install exhaust system from flange connection

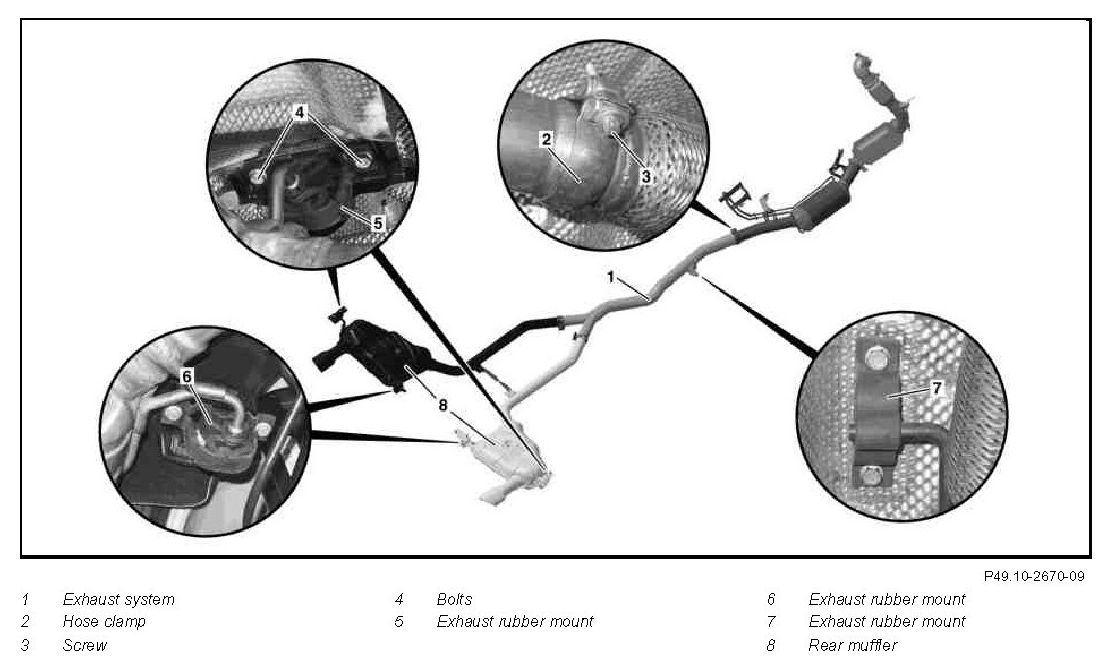

Component Identification:




Modification notes:




Remove/install Steps 1-5:

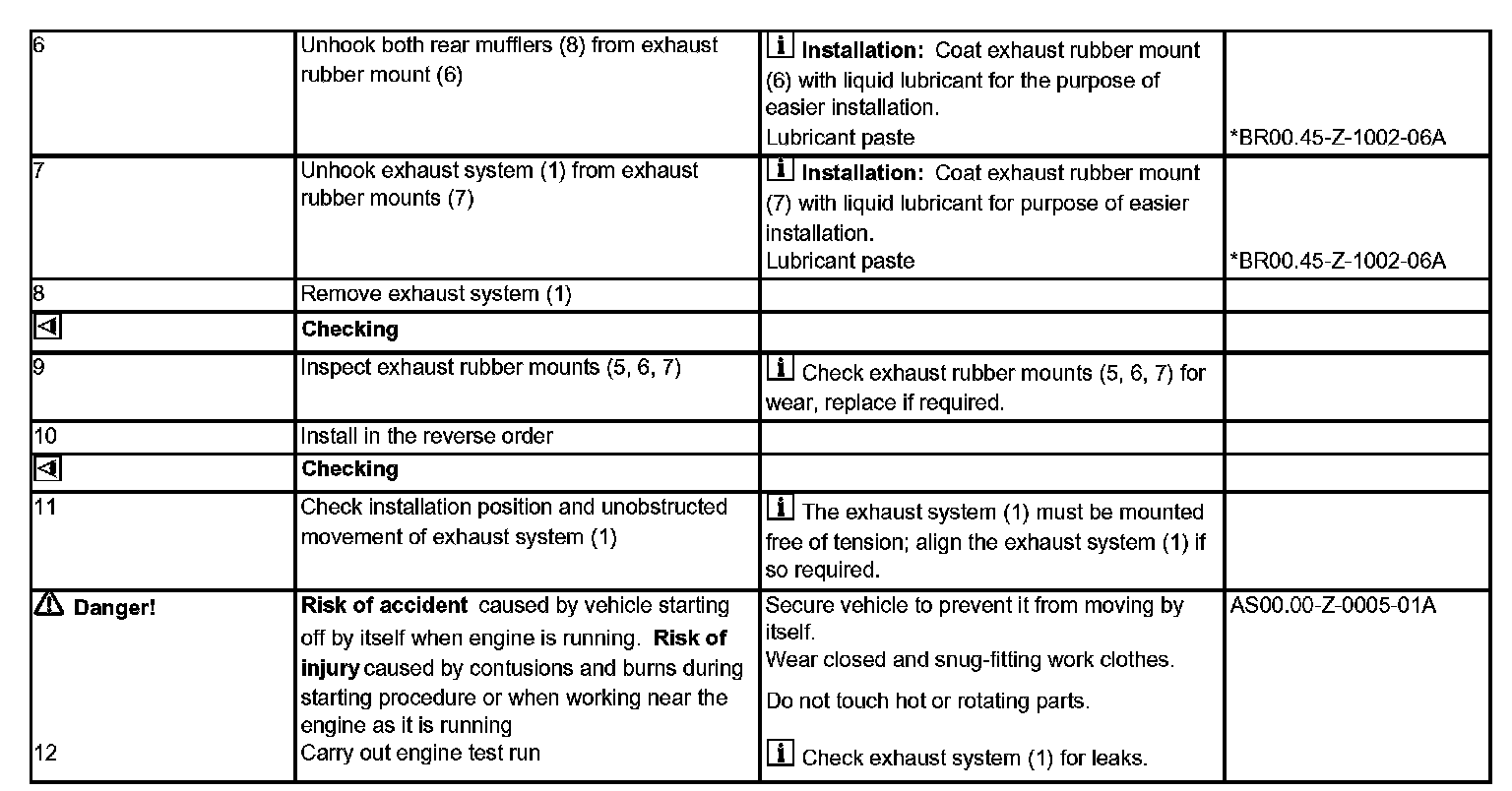

Remove/install Steps 6-12:

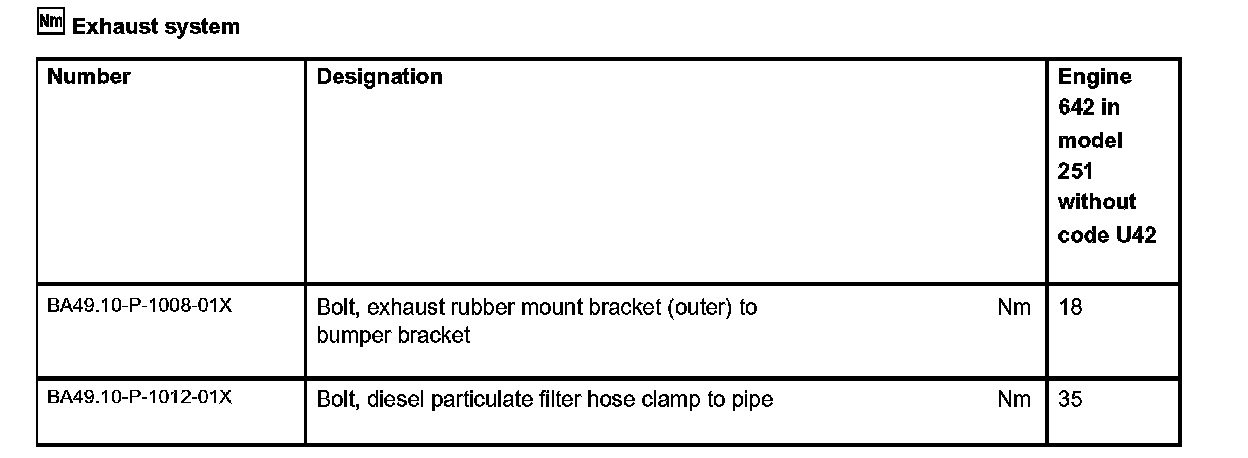

Exhaust system:




Repair materials:
