AR49.10-P-7100GZB Remove/Install Components For Exhaust System

AR49.10-P-7100GZB Remove/Install Components For Exhaust System
ENGINES 642 in MODEL 164, 251
ENGINES 629 in MODEL 164

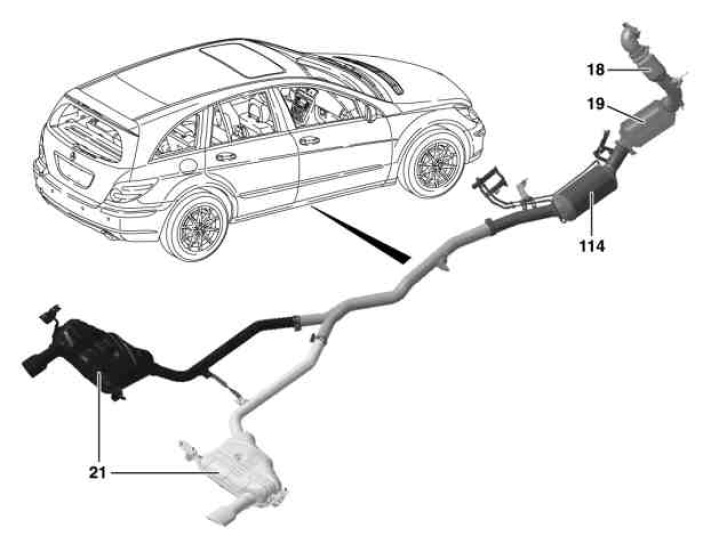

Shown on model 251 with code (474) particulate filter

18 Primary catalytic converter
19 Oxidation catalytic converter
21 Rear muffler
114 Diesel particulate filter (DPF)





Shown on model 251 with code (U42)
BlueTEC (SCR) diesel exhaust treatment

20 Oxidation catalytic converter/ diesel particulate filter (DPF)
21 Rear muffler
22 SCR catalytic converter
23 Exhaust pipe
