Continuous Trap Oxidizer: Service and Repair



AR14.40-P-1000RTB Remove/install the diesel particulate filter

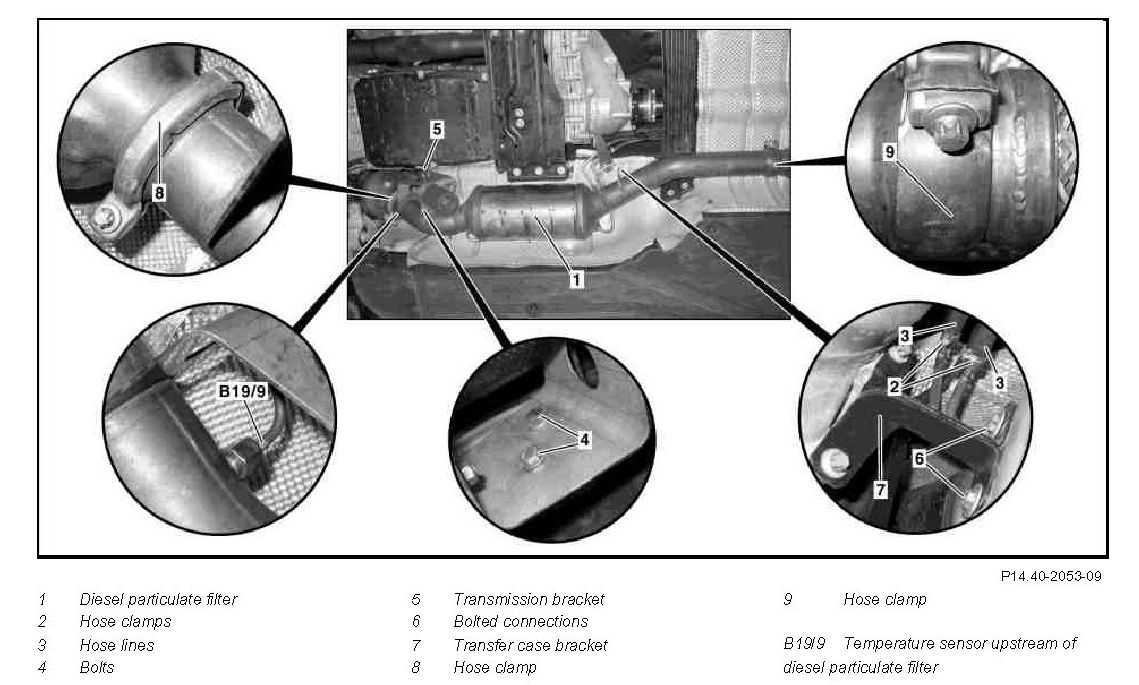

Component Identification:

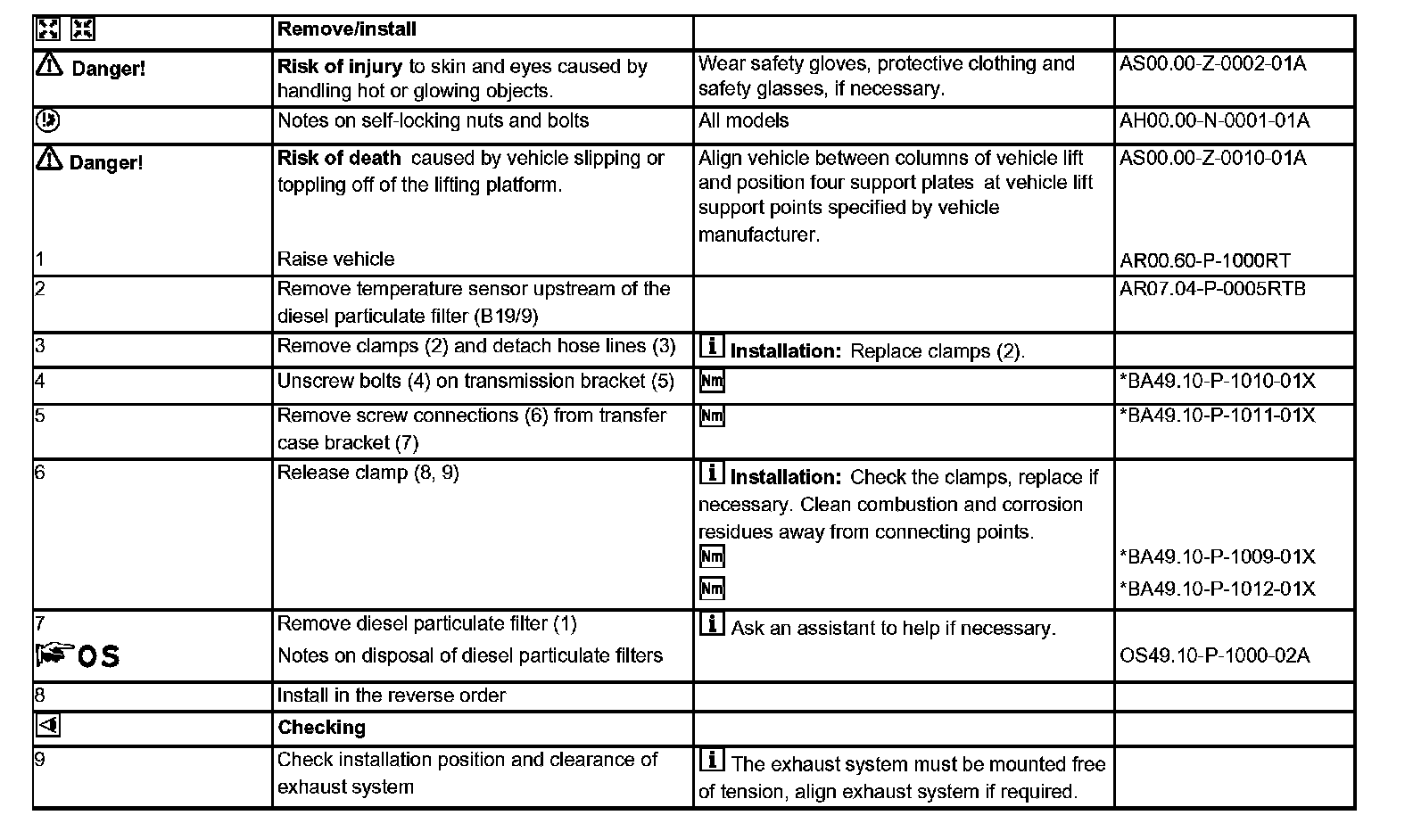

Remove/install Steps 1-9:




Remove/install Step 10:




Exhaust system:
