AR01.40-P-8000GZB Remove/Install Timing Case Cover



AR01.40-P-8000GZB Remove/install timing case cover

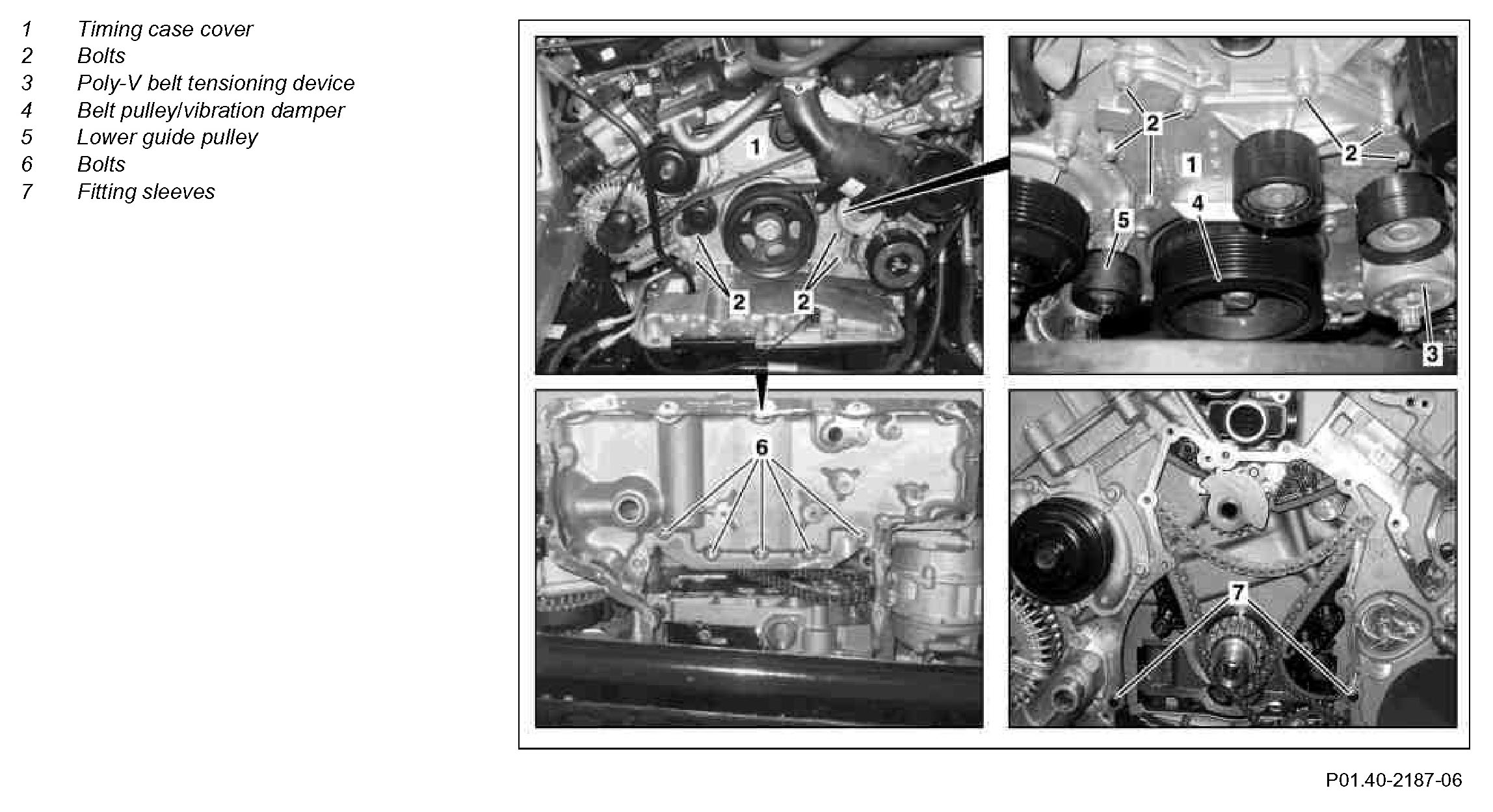

Component Identification:

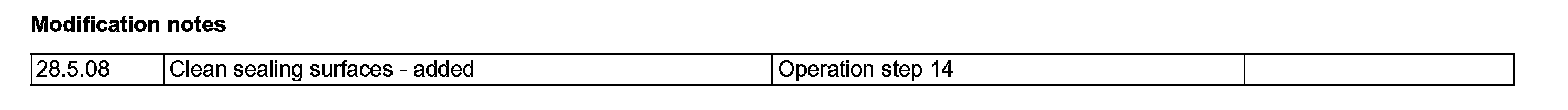

Modification notes:

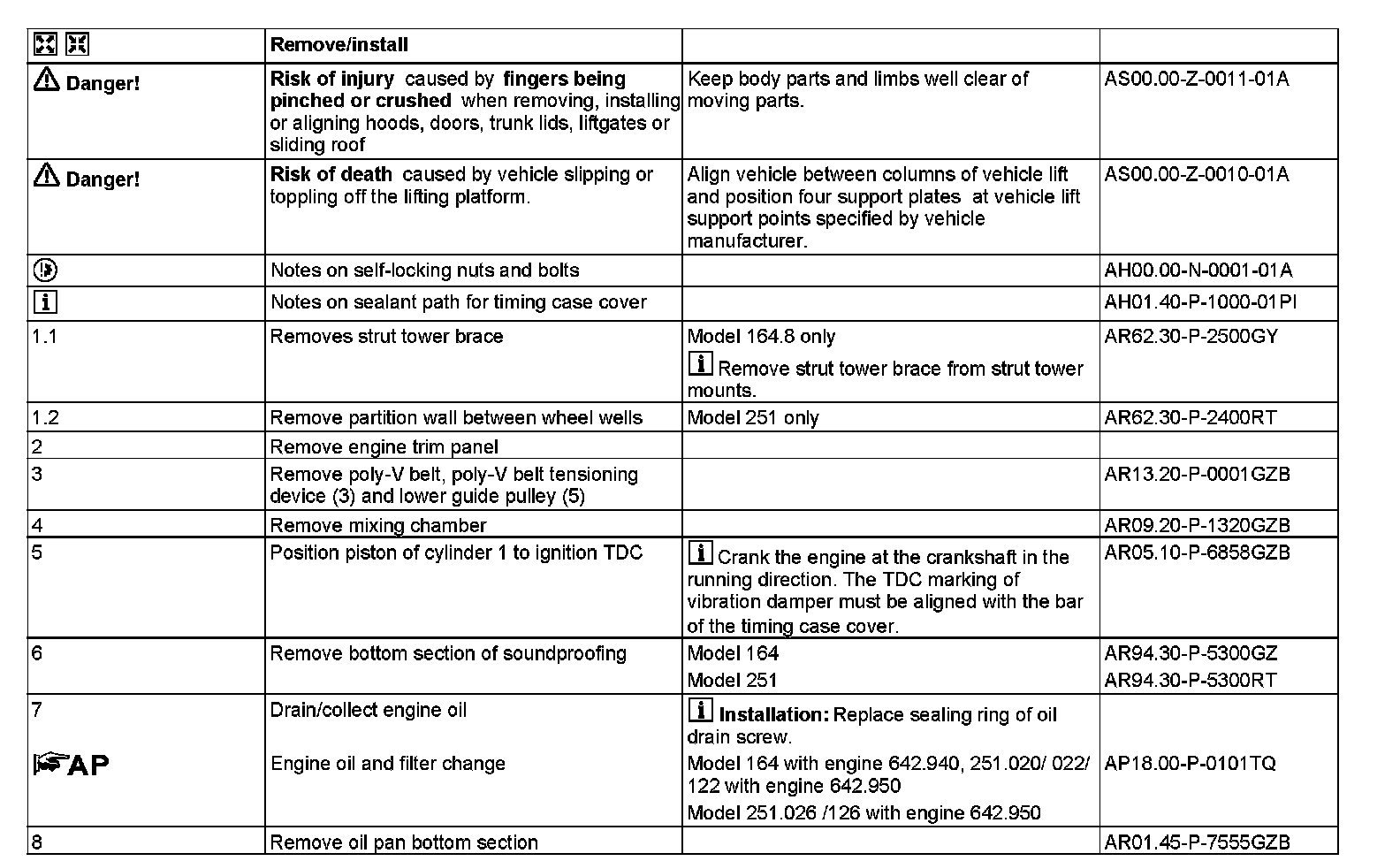

Steps 1-8:

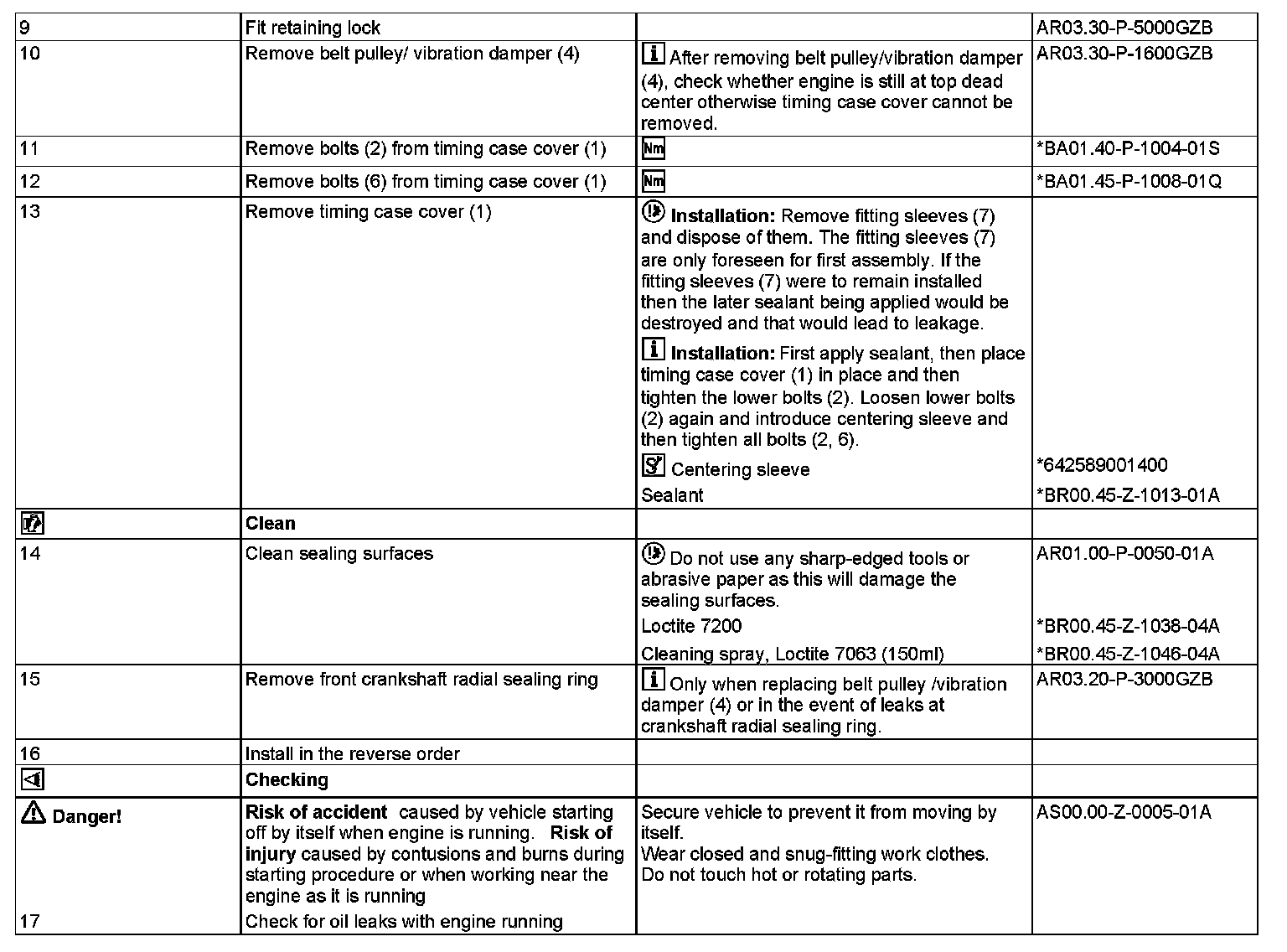

Steps 9-17:

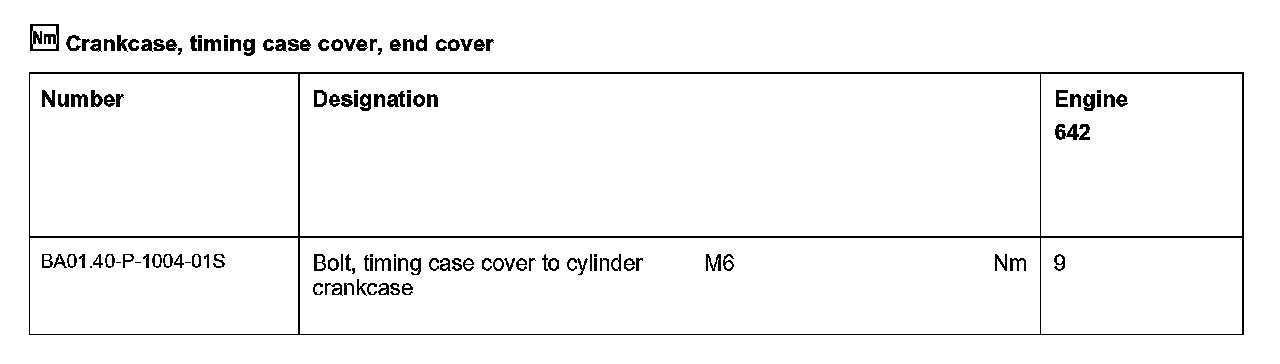

Crankcase, timing case cover, end cover:




Oil pan:

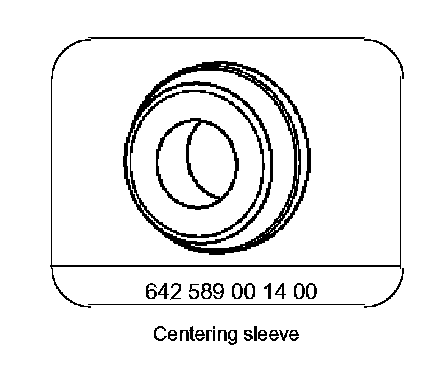

Special Tools:

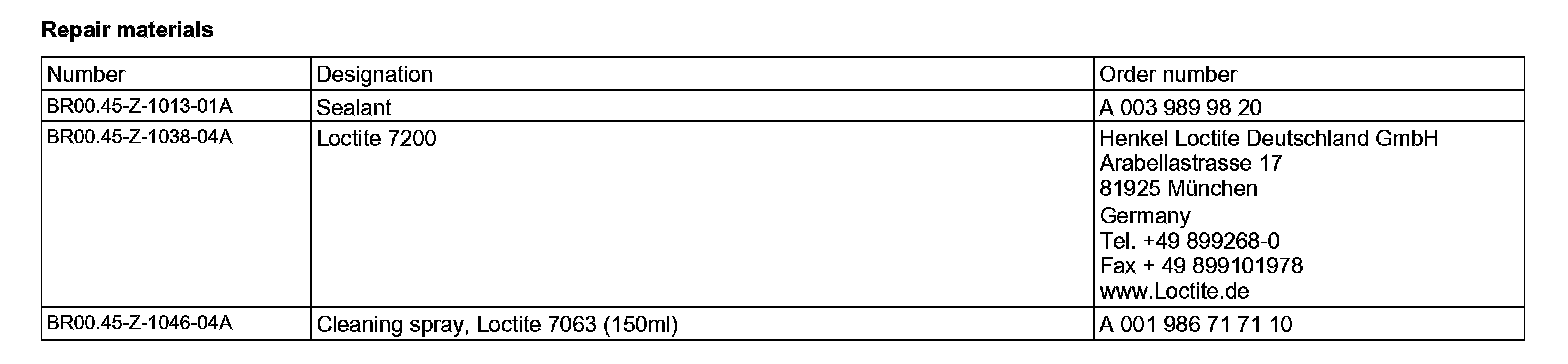

Repair materials:
