AR01.10-P-2510RTB Detach/Attach Engine On Front Axle Carrier
AR01.10-P-2510RTB Detach/attach engine on front axle carrier

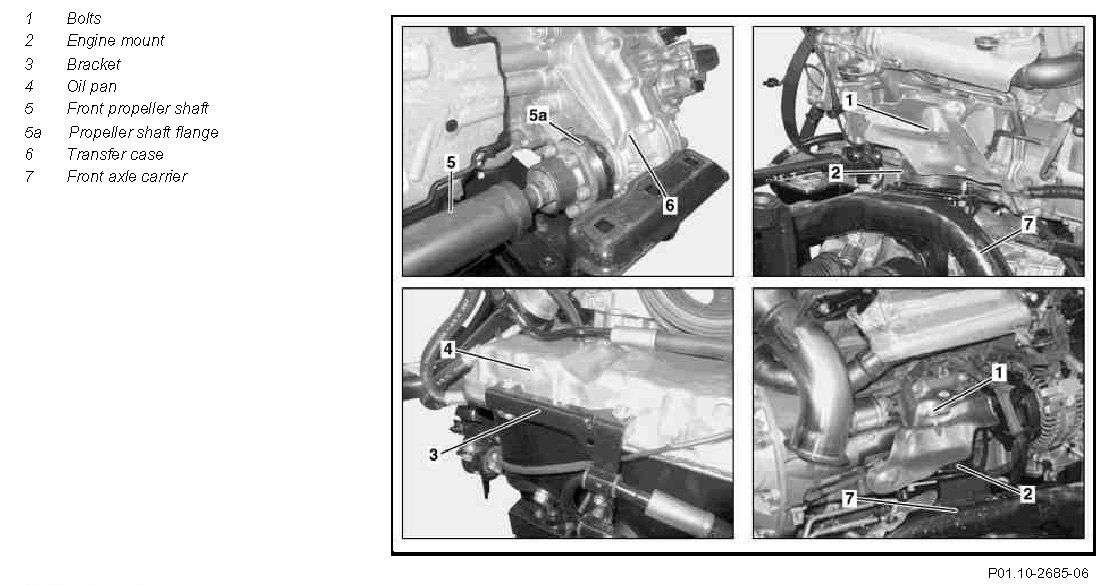

Component Identification:
Modification notes:

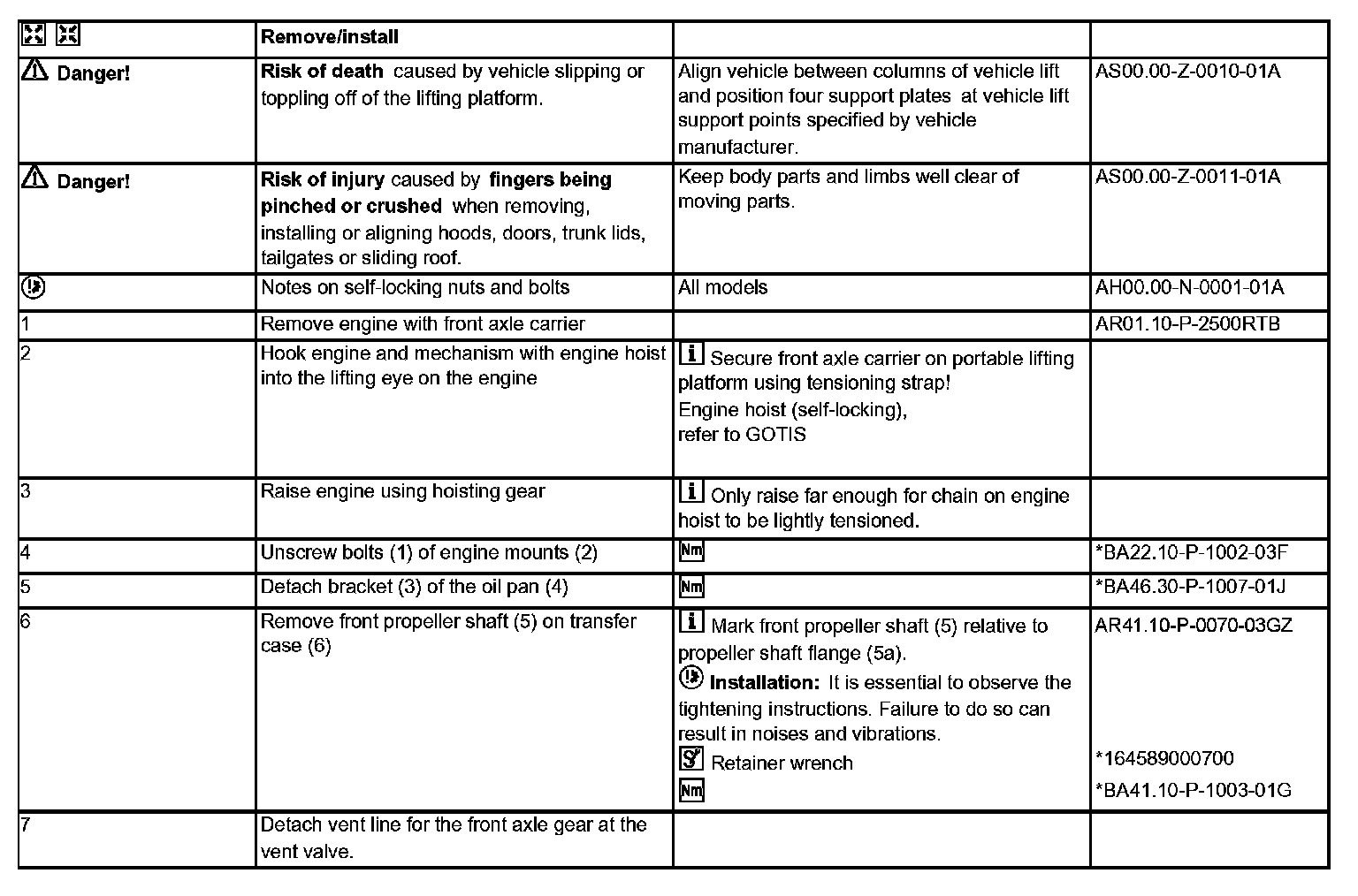

Remove/install Steps 1-7:

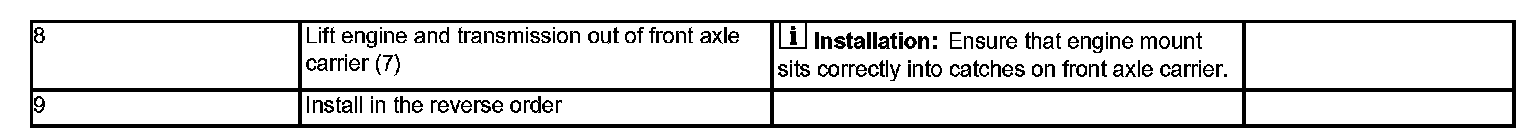

Remove/install Steps 8-9:

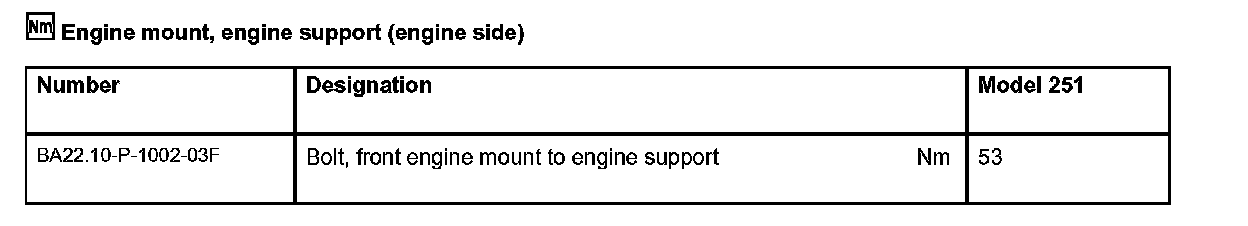

Engine mount, engine support (engine side):

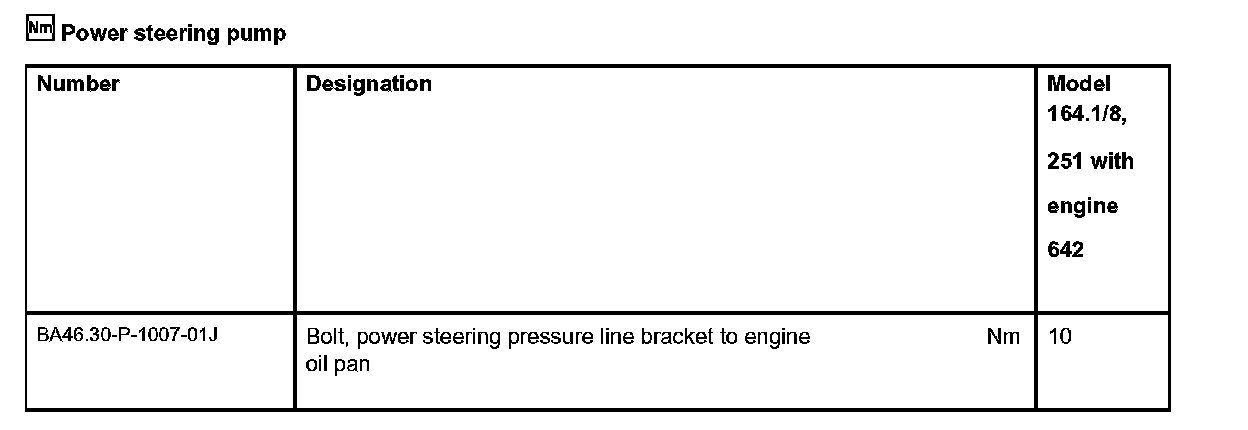

Power steering pump:

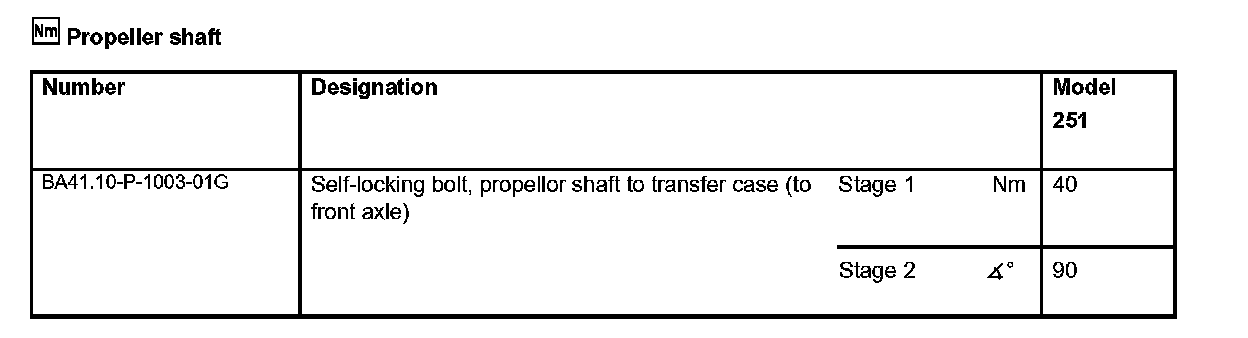

Propeller shaft:

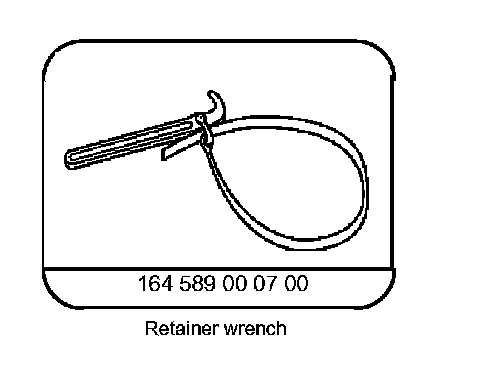

Special Tools:
