AR18.10-P-6020RTB Removing/Installing the Oil Pump



AR18.10-P-6020RTB Removing/installing the oil pump

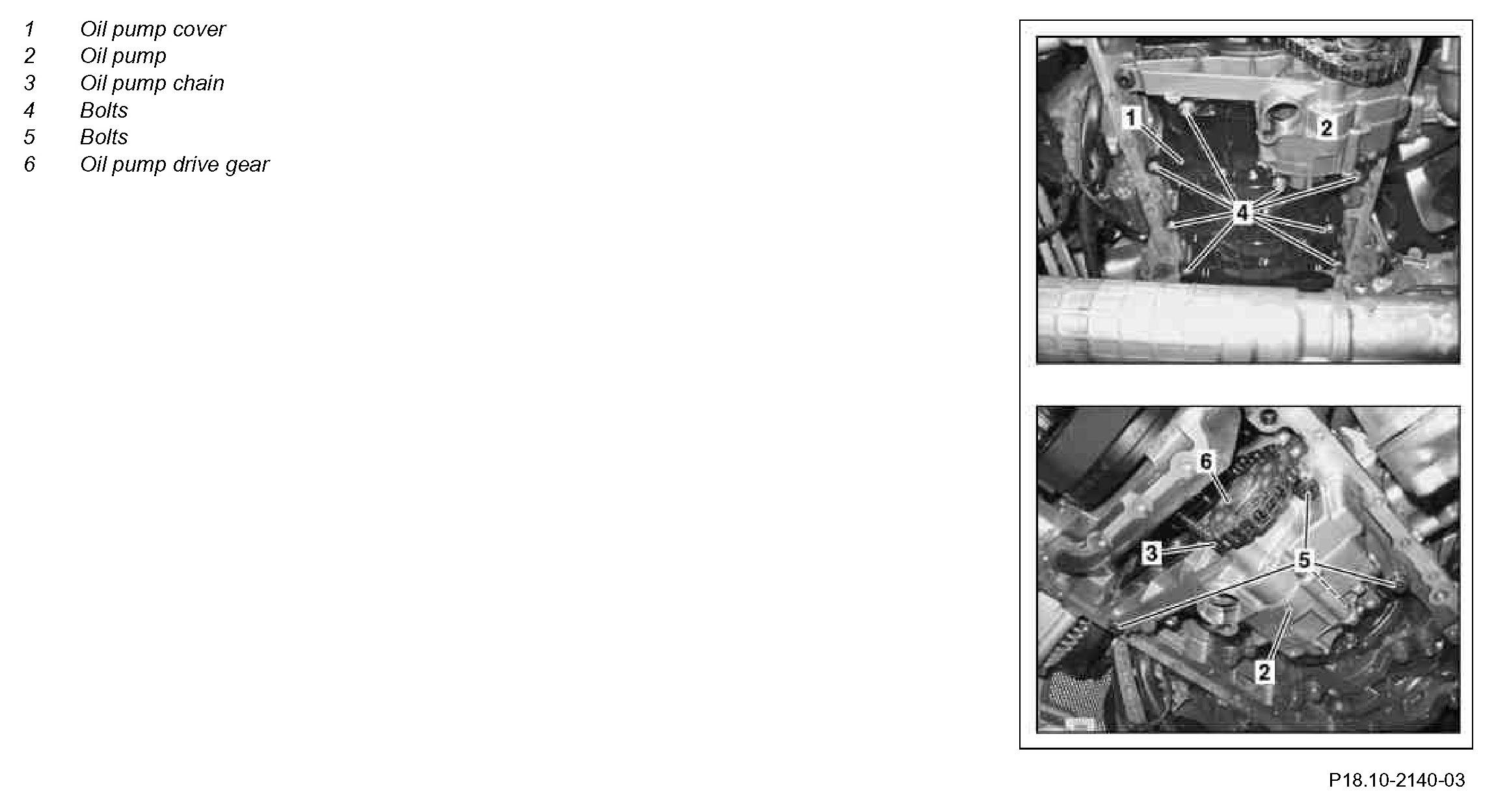

Component Identification:

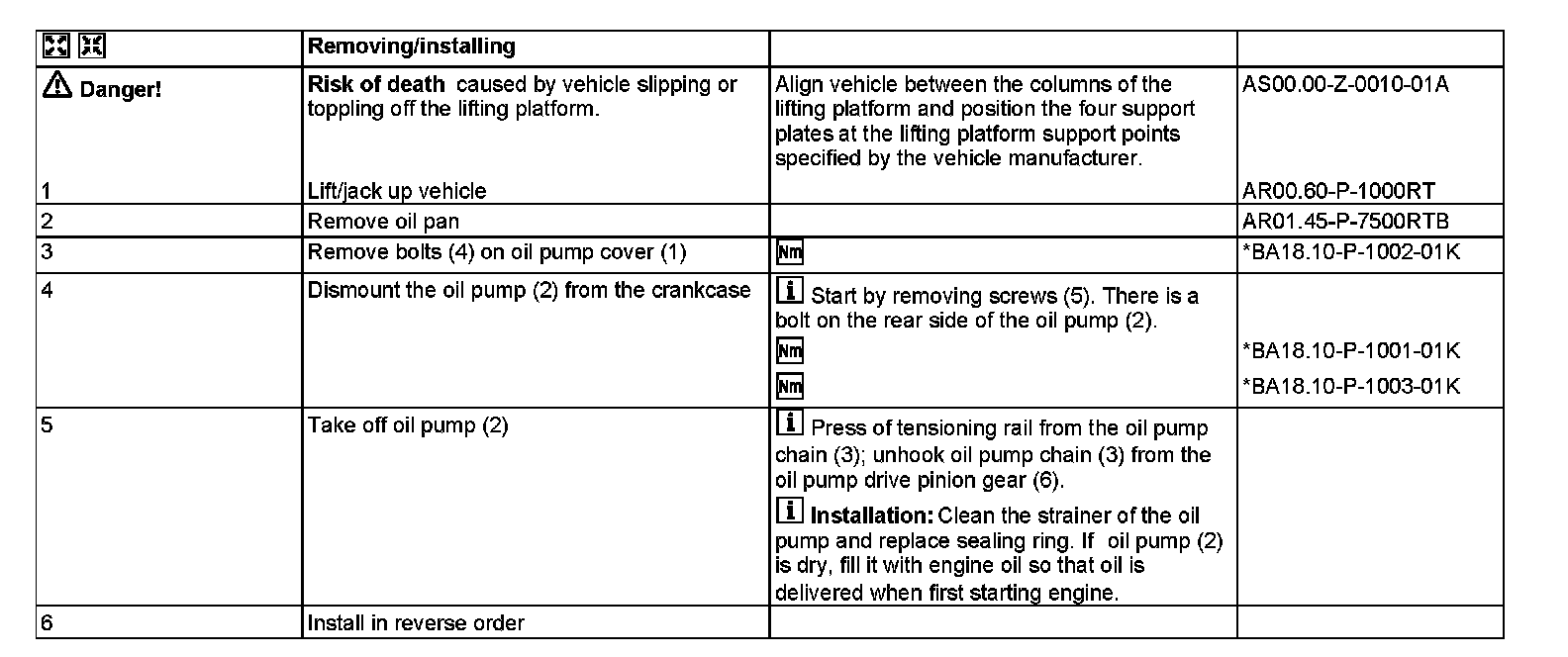

Steps 1-6:

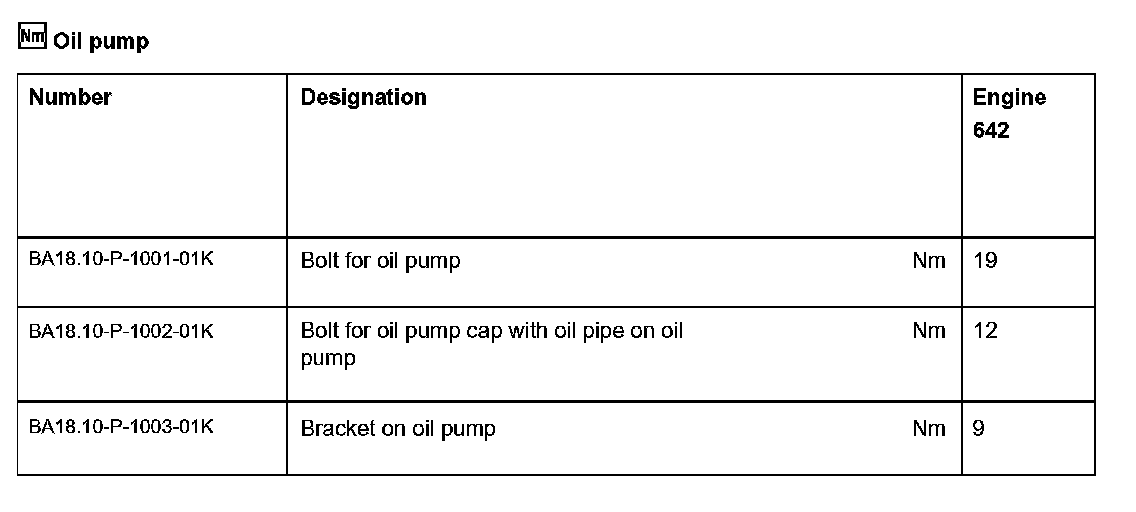

Oil pump:
