Home >> Mercedes Benz Truck >> 2007 >> R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pan >> Service and Repair >> Removal and Replacement >> AR01.45-P-7555GZB Remove/Install Bottom Part of Oil Pan

AR01.45-P-7555GZB Remove/Install Bottom Part of Oil Pan

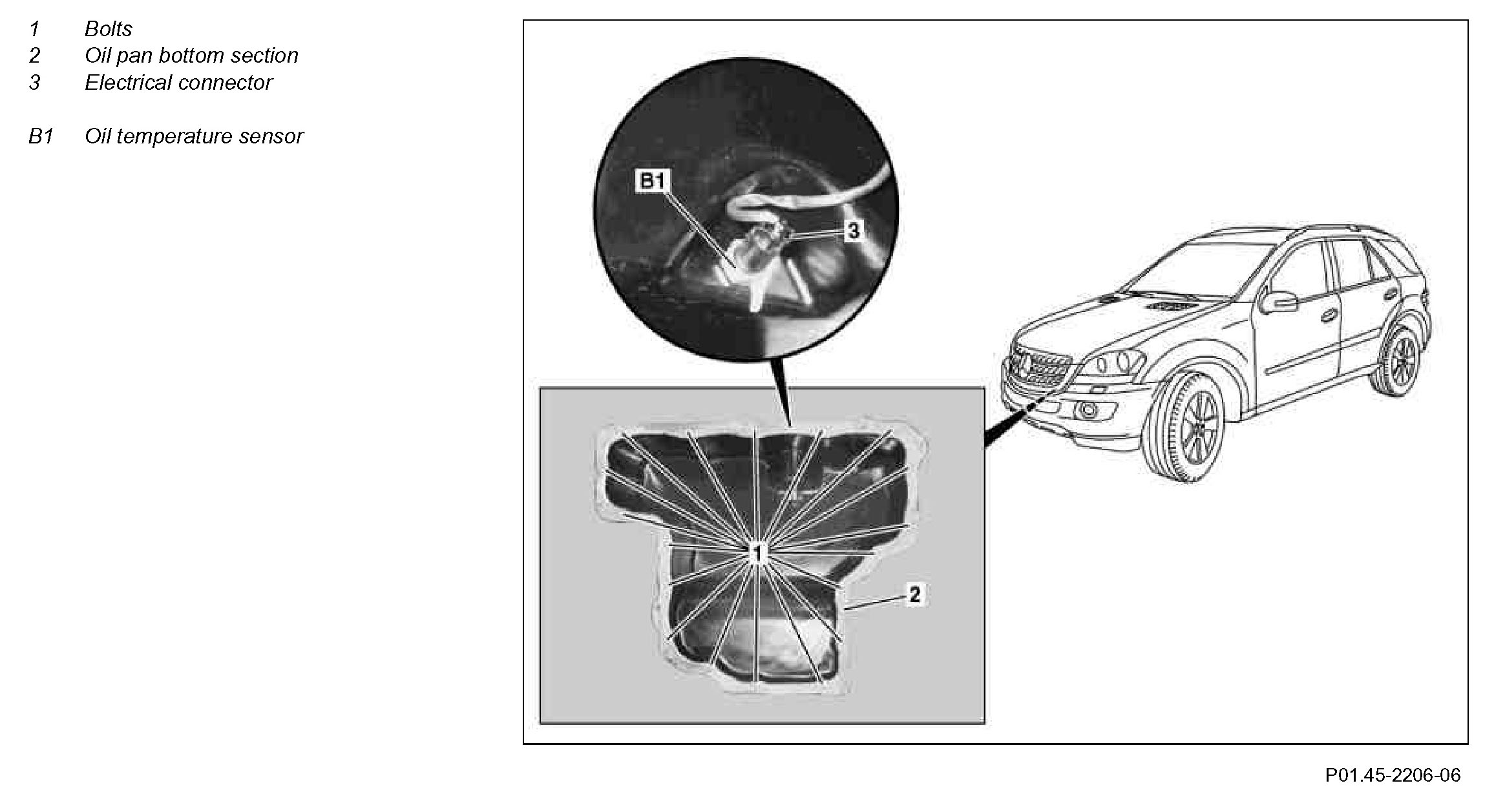

AR01.45-P-7555GZB Remove/install bottom part of oil pan

Component Identification:

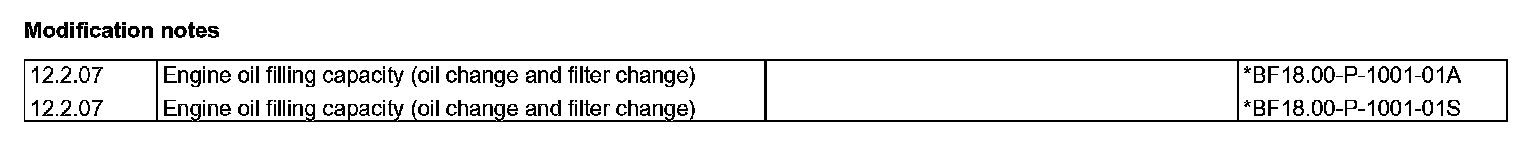

Modification notes:

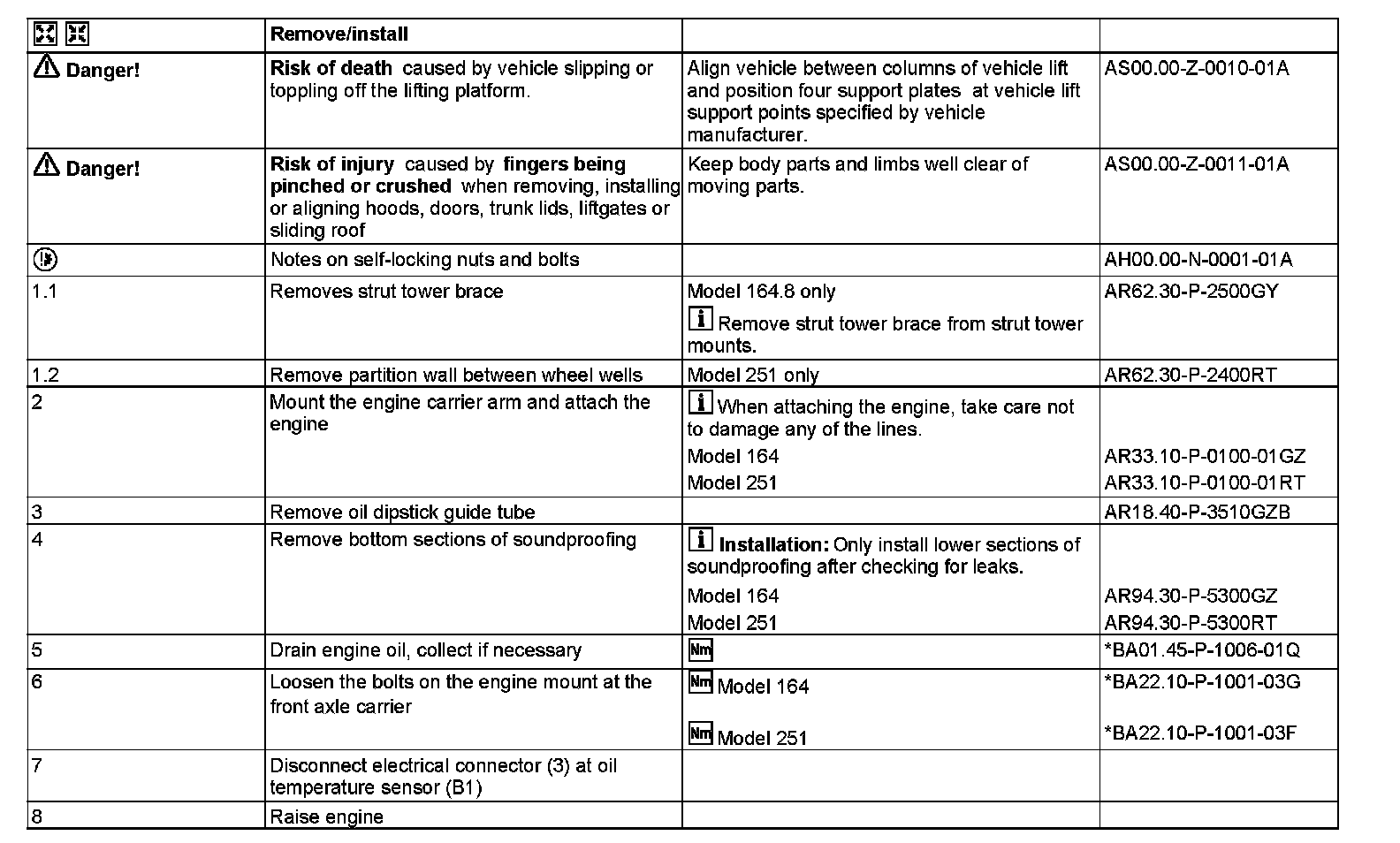

Steps 1-8:

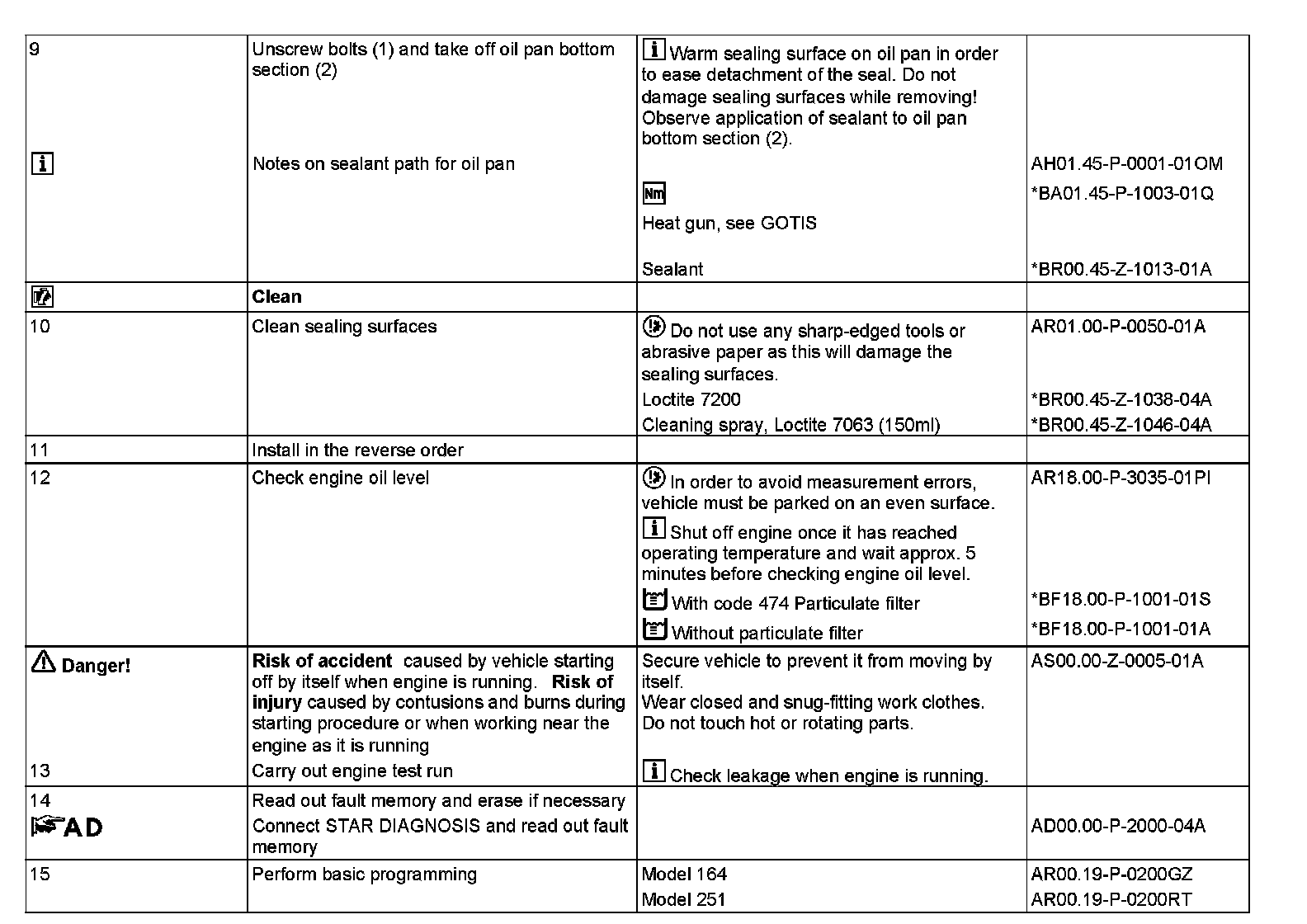

Steps 9-15:

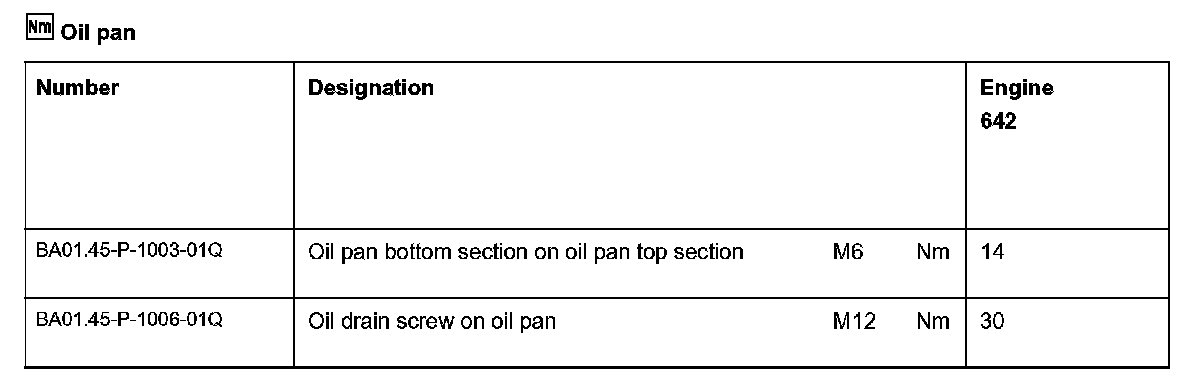

Oil pan:

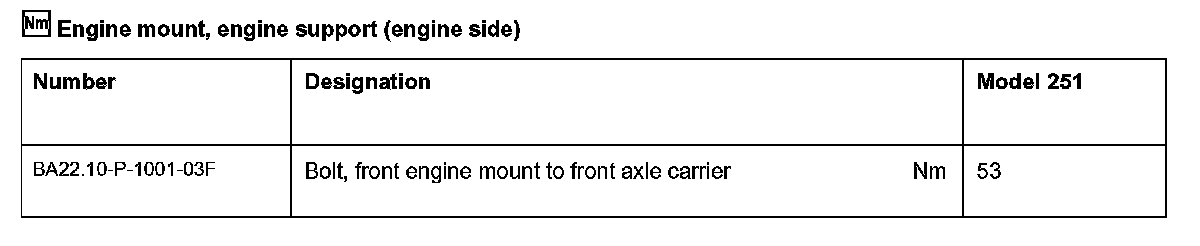

Engine mount, engine support (engine side):




Engine mount, engine support (engine side):

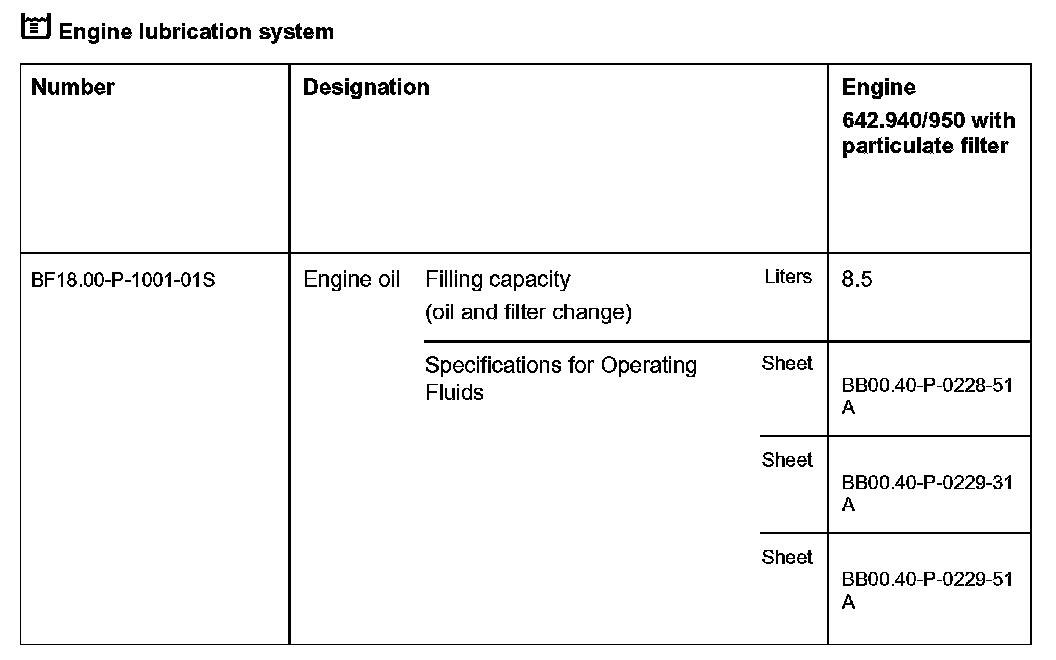

Engine lubrication system:

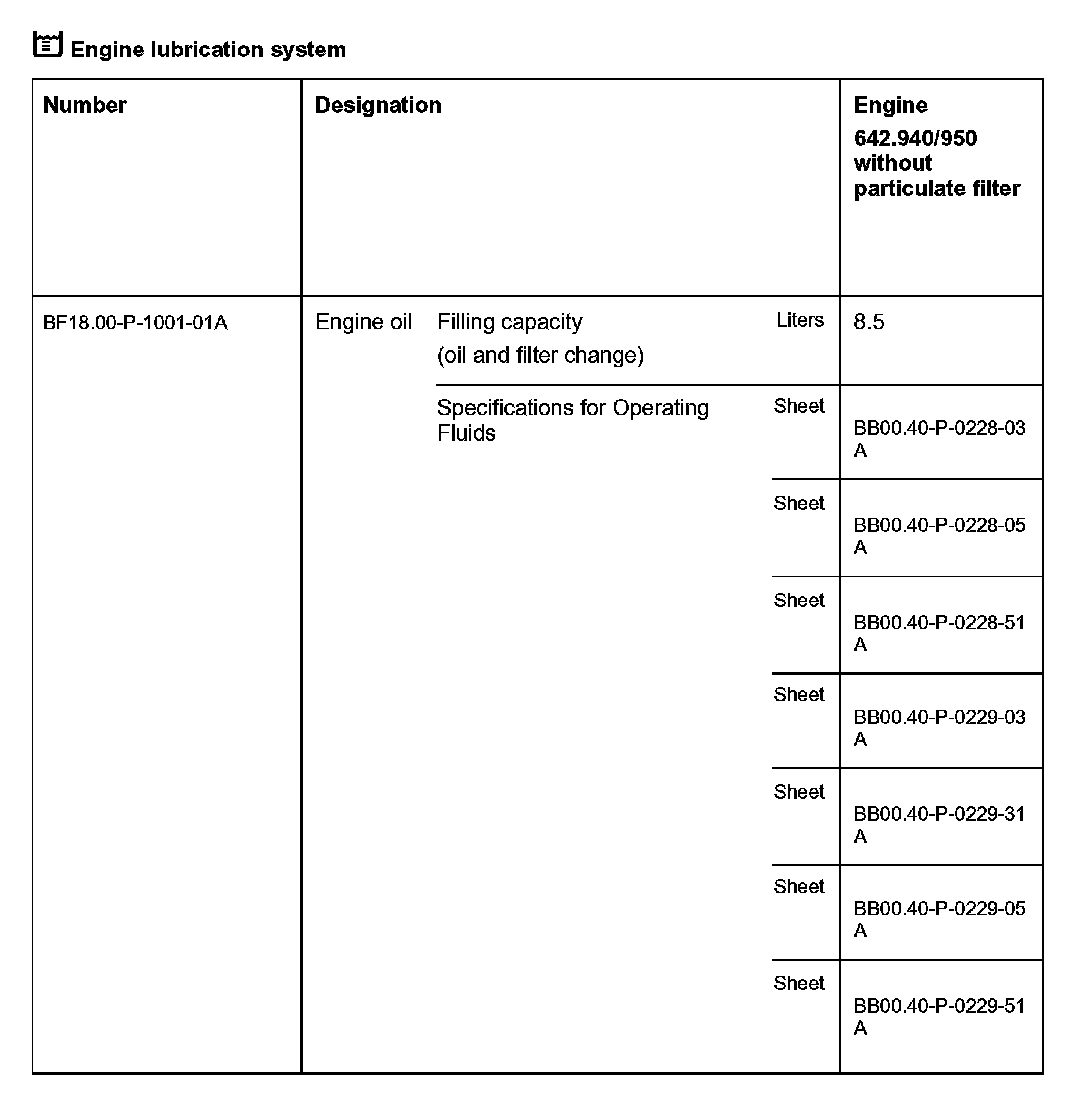

Engine lubrication system:

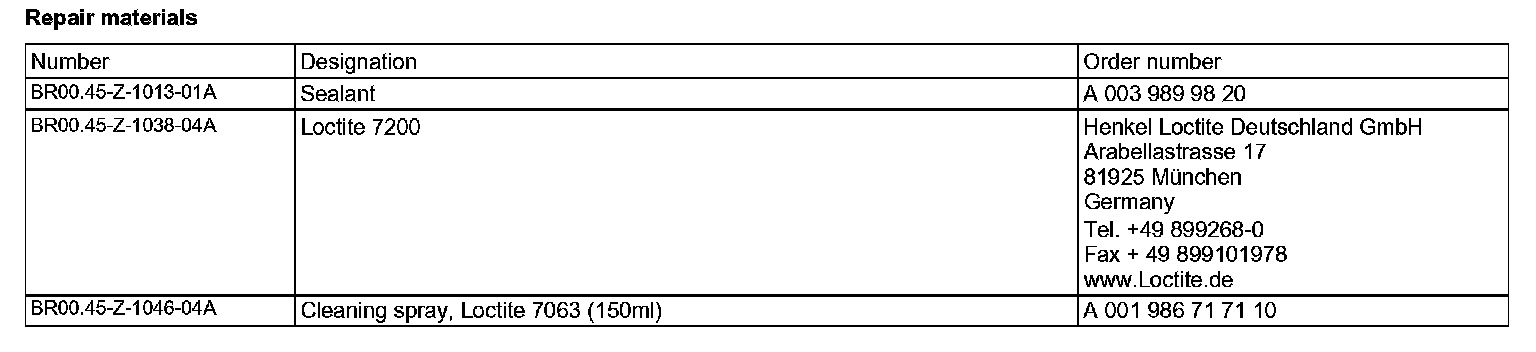

Repair materials:
