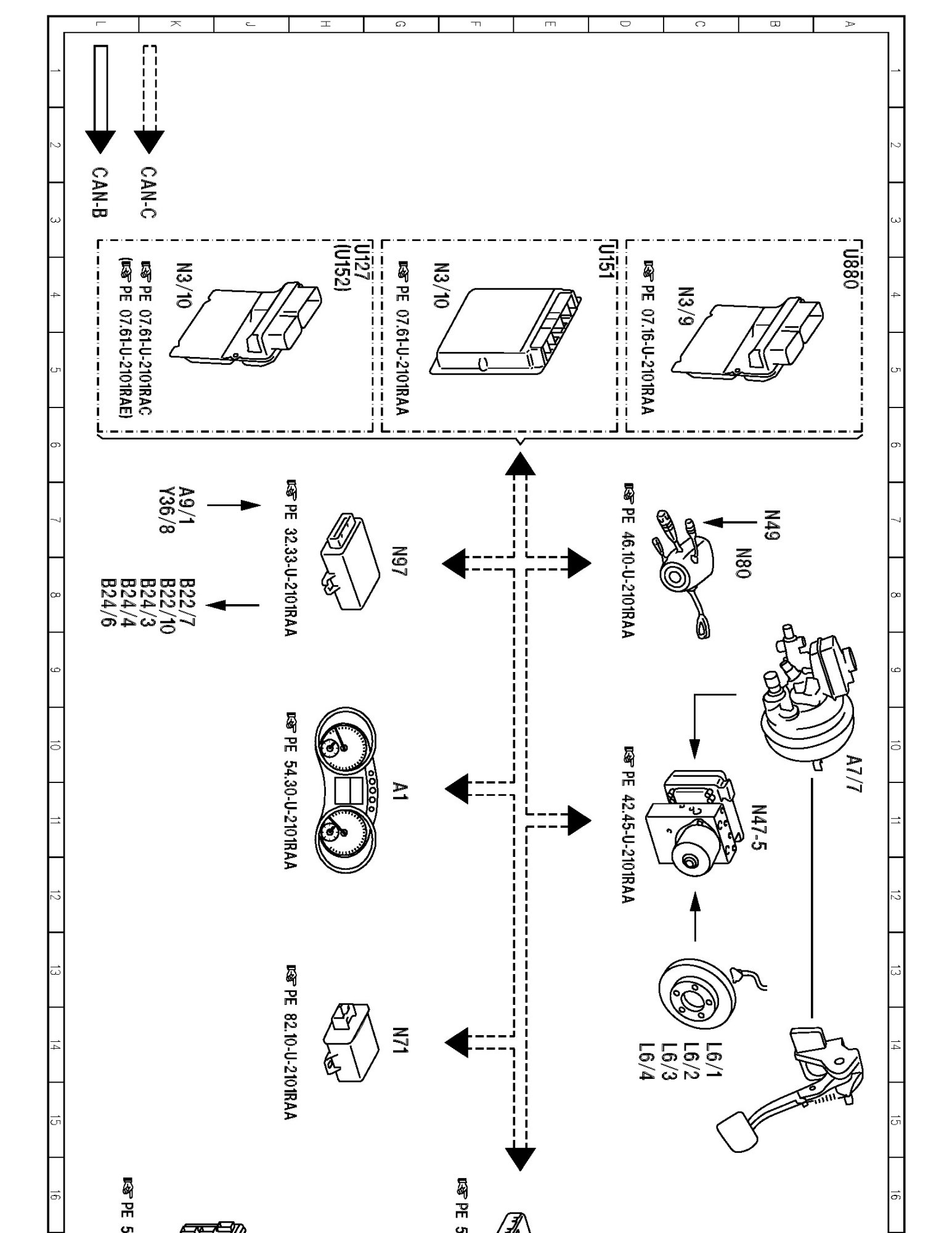

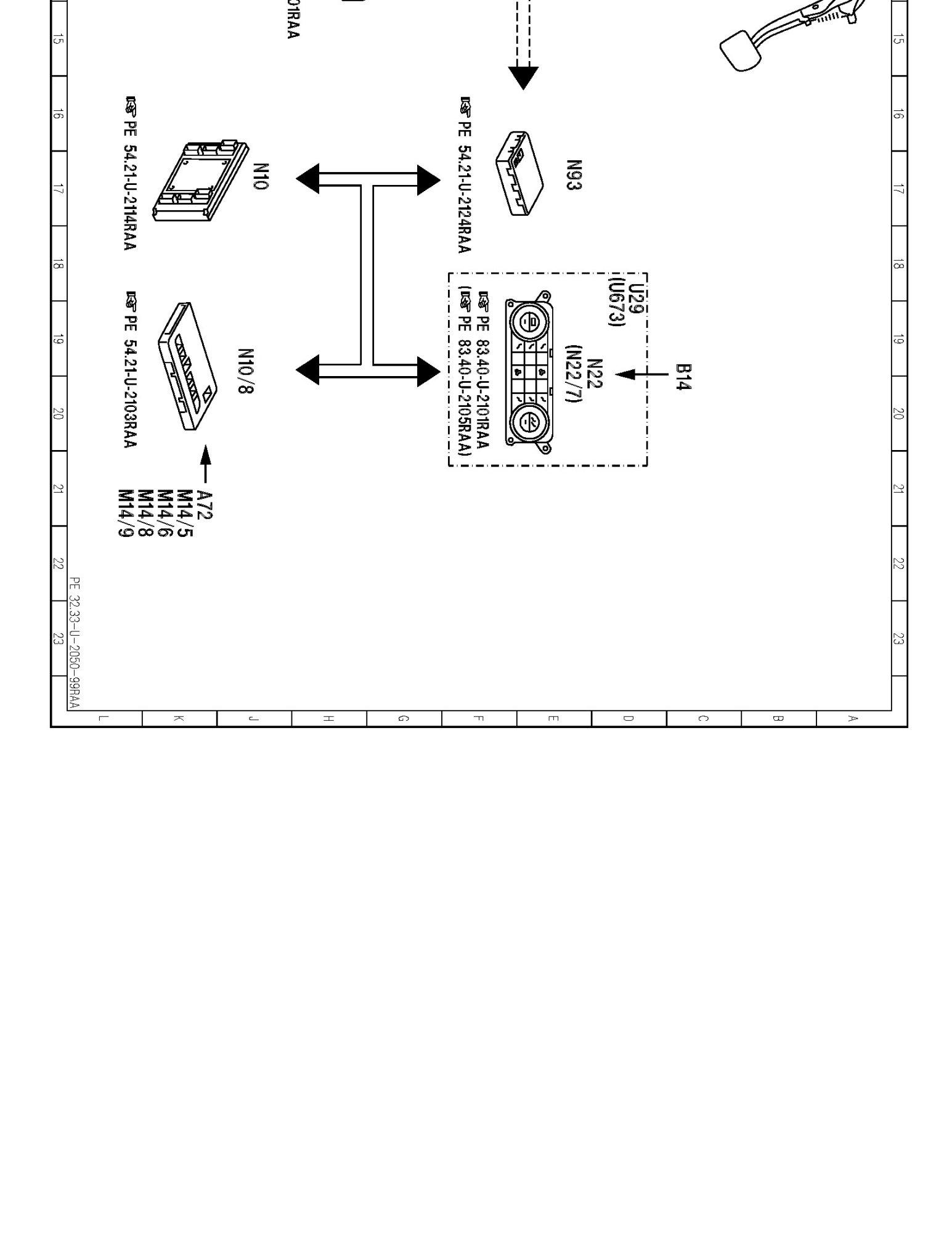

PE32.33-U-2050RAA Electrical Function Diagram For Level Control (NR)

PE32.33-U-2050RAA Electrical Function Diagram For Level Control (NR)
- with CODE (480) Rear axle level control system
- except CODE (489) All-round level control system
- up to model year 2008

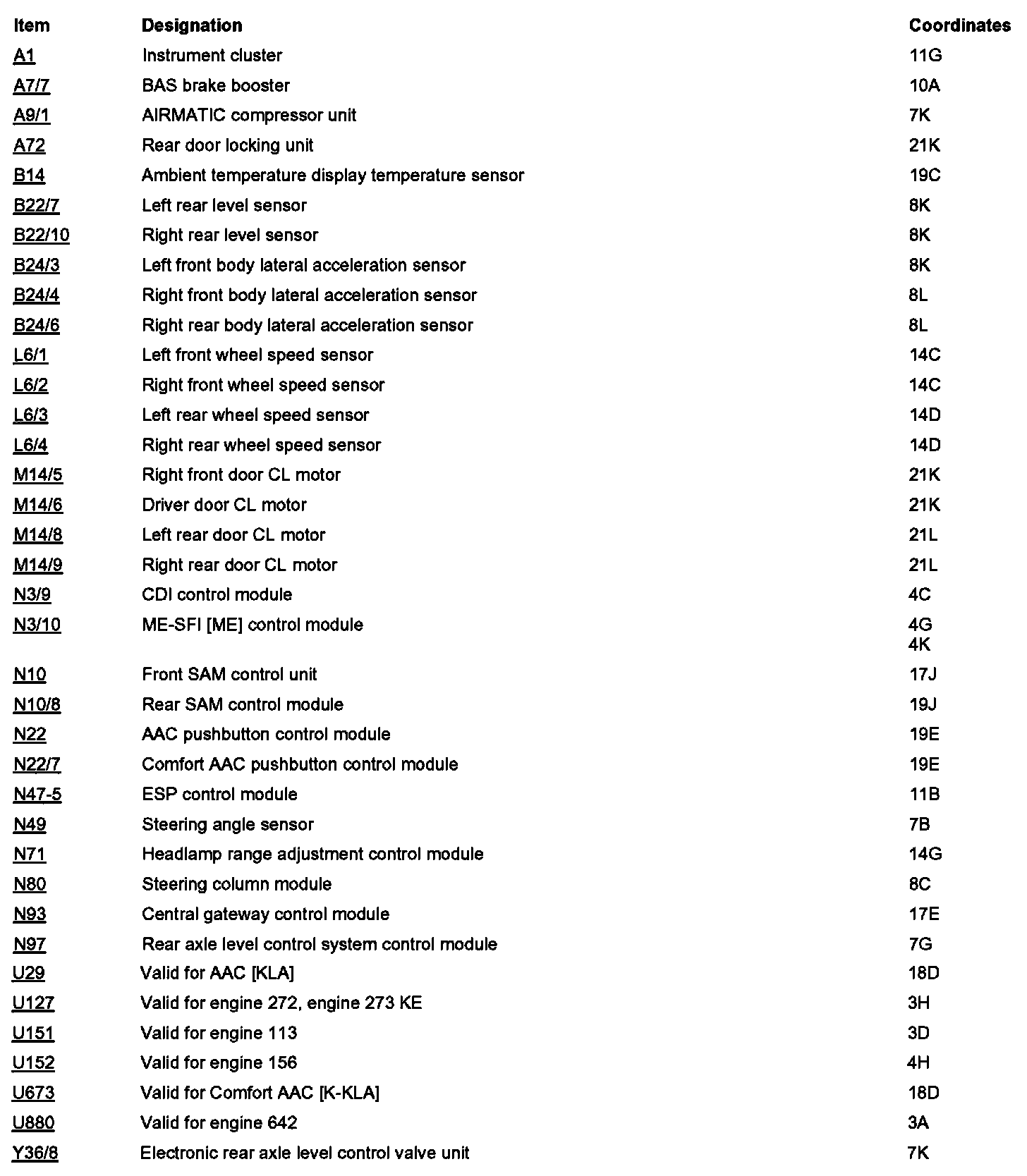

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
