PE82.60-P-2059RAD Electrical Function Diagram For Volume/Sound Settings, Function

Electrical Function Diagram For Volume/sound Settings, Function PE82.60-P-2059RAD
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

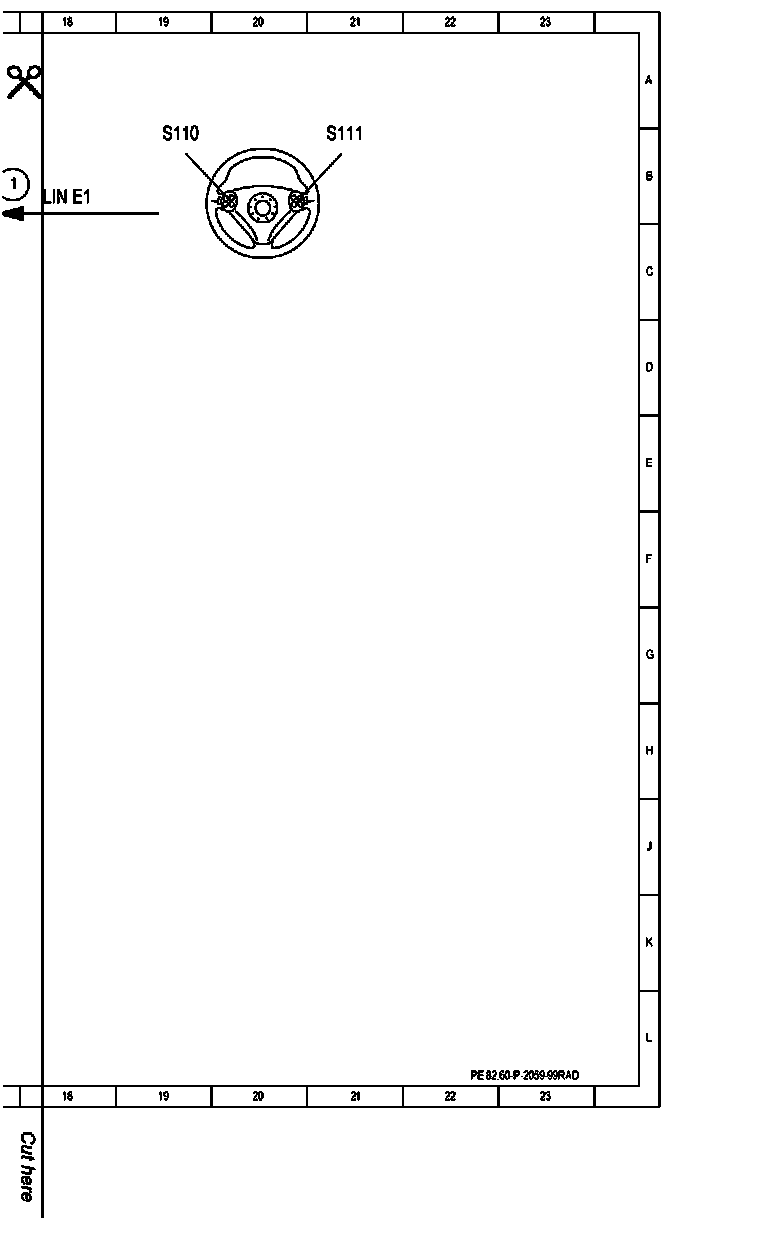

Function Diagram (Part 1):

Function Diagram (Part 2):

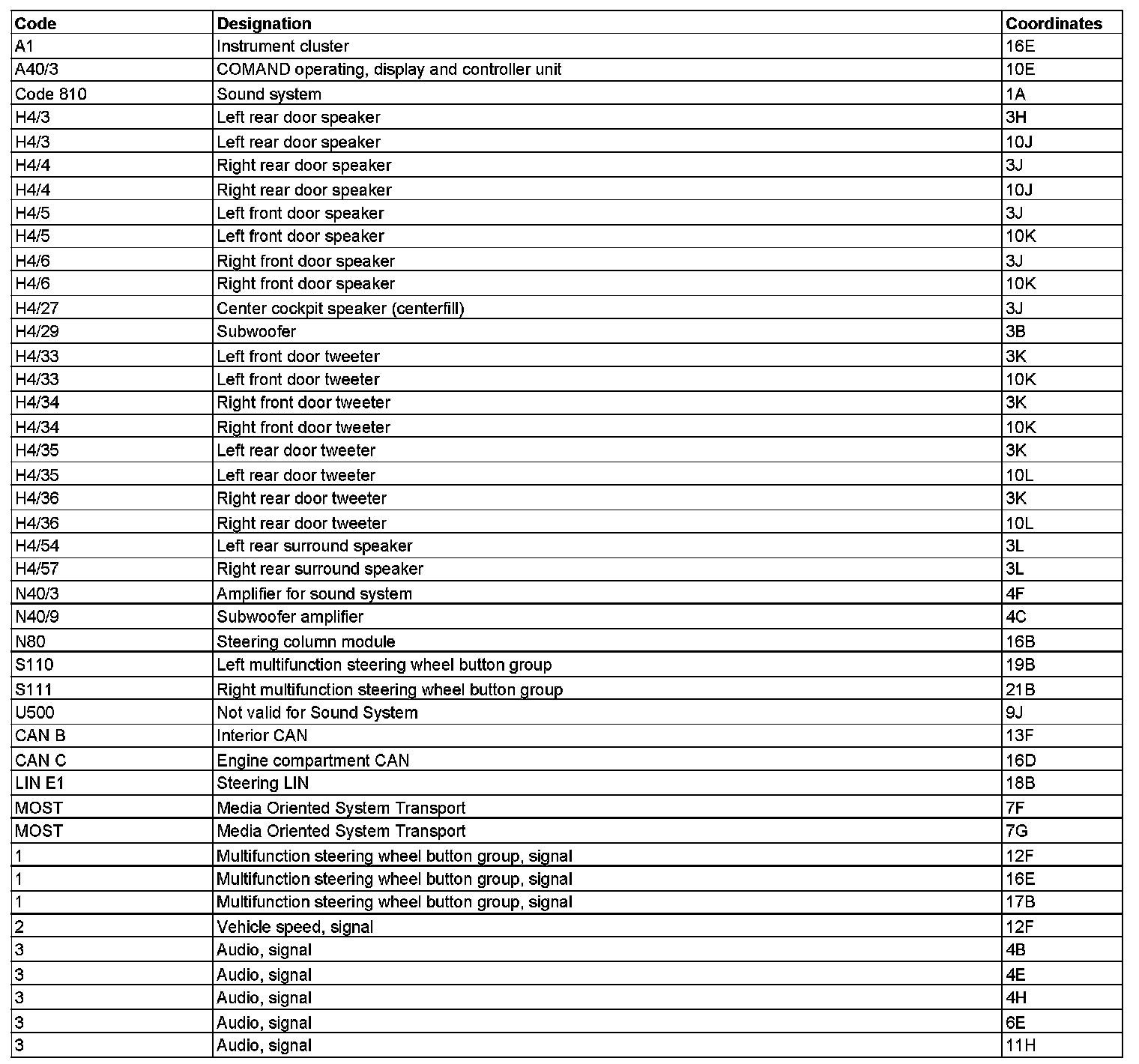

Component Description/Coordinates, A1 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
