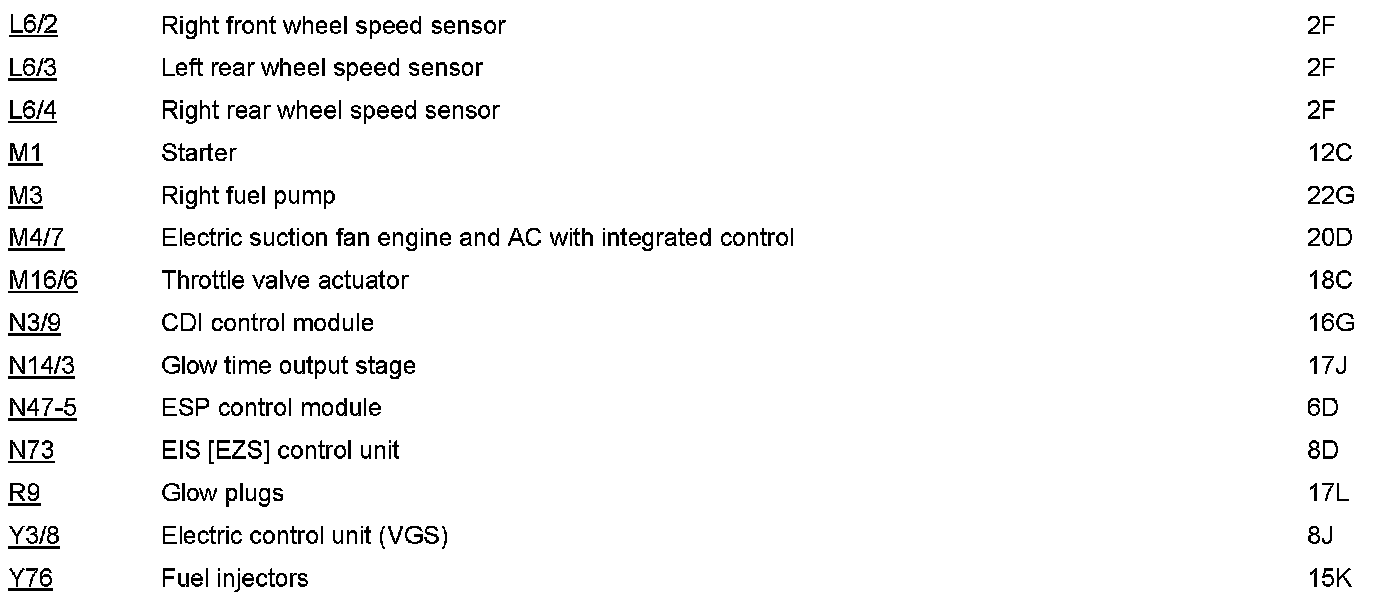

PE07.16-U-2050RAA Electrical Function Diagram For Common Rail Diesel Injection (CDI)



PE07.16-U-2050RAA Electrical Function Diagram For Common Rail Diesel Injection (CDI)

ENGINE 642.950 in MODEL 251
- up to Model Year 2008
- CR 4.11


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
