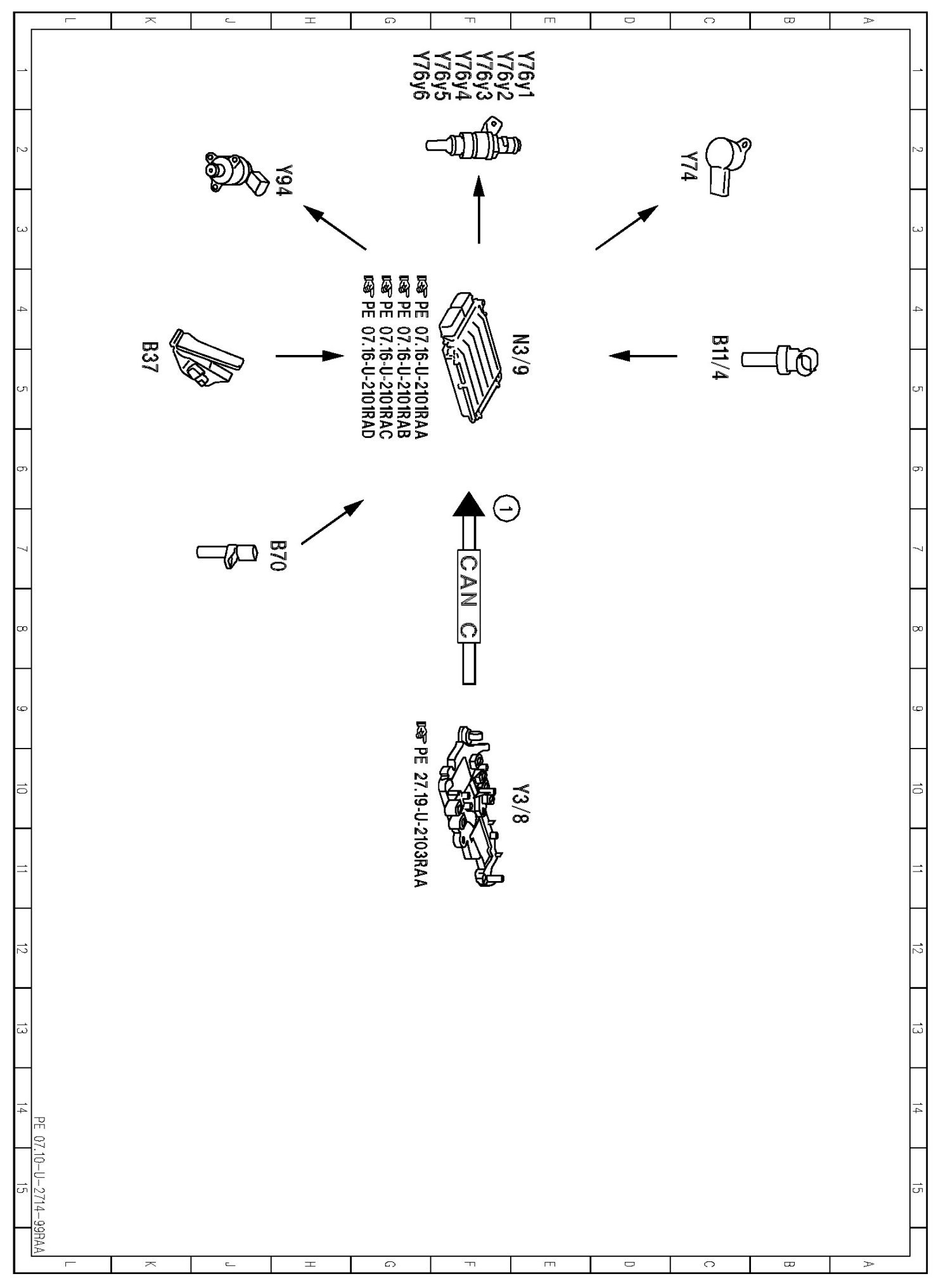

PE07.10-U-2714RAA Electrical Function Schematic For Deceleration Fuel Shutoff

PE07.10-U-2714RAA Electrical Function Schematic For Deceleration Fuel Shutoff

ENGINE 642.8 /9 in MODEL 251.0 /1










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
