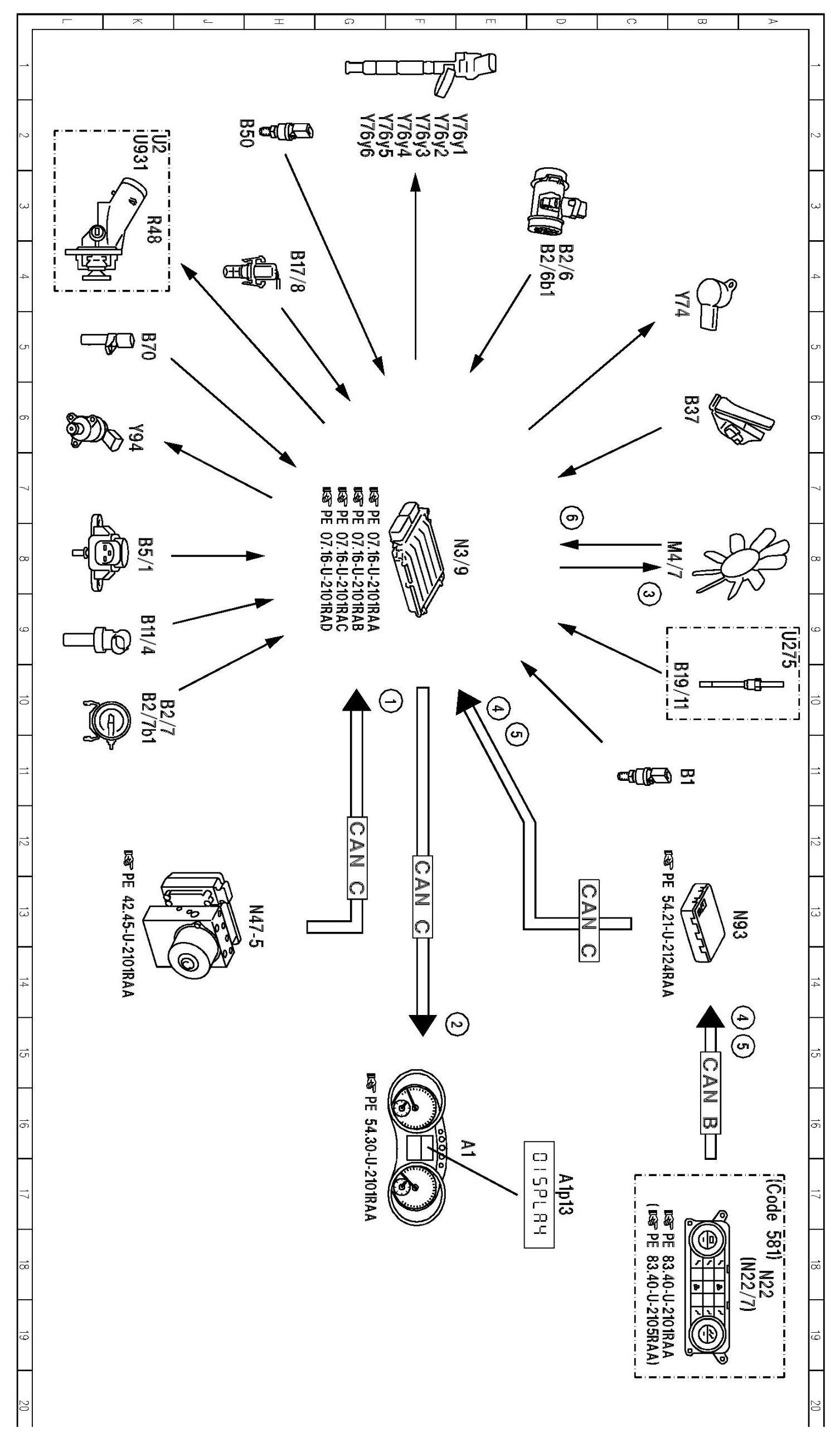

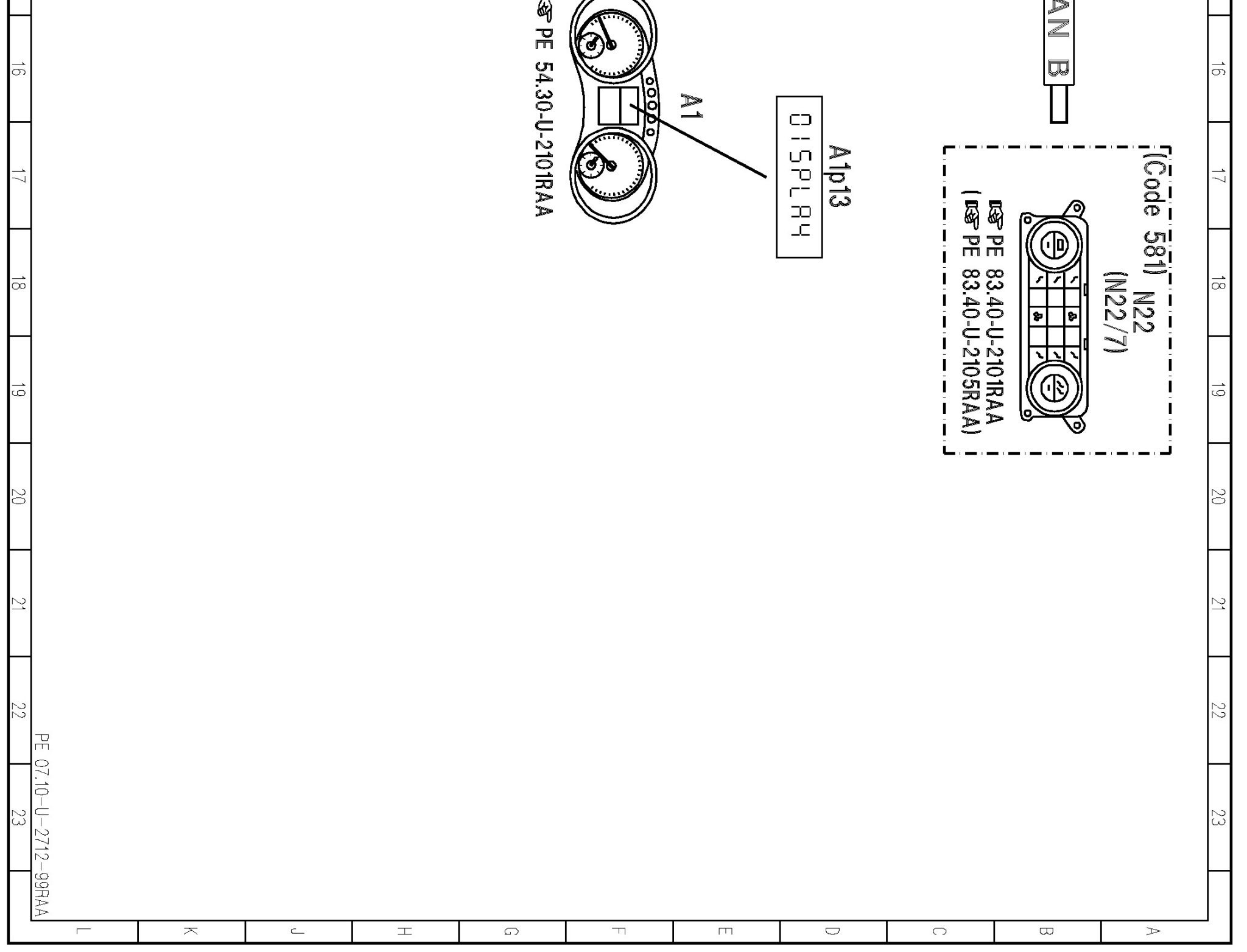

PE07.10-U-2712RAA Electrical Function Schematic For Thermal Management

PE07.10-U-2712RAA Electrical Function Schematic For Thermal Management

ENGINE 642.8 /9 in MODEL 251.0 /1


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
