PE07.10-U-2711RAA Electrical Function Schematic For Smooth Running Control

PE07.10-U-2711RAA Electrical Function Schematic For Smooth Running Control

ENGINE 642.8 /9 in MODEL 251.0 /1

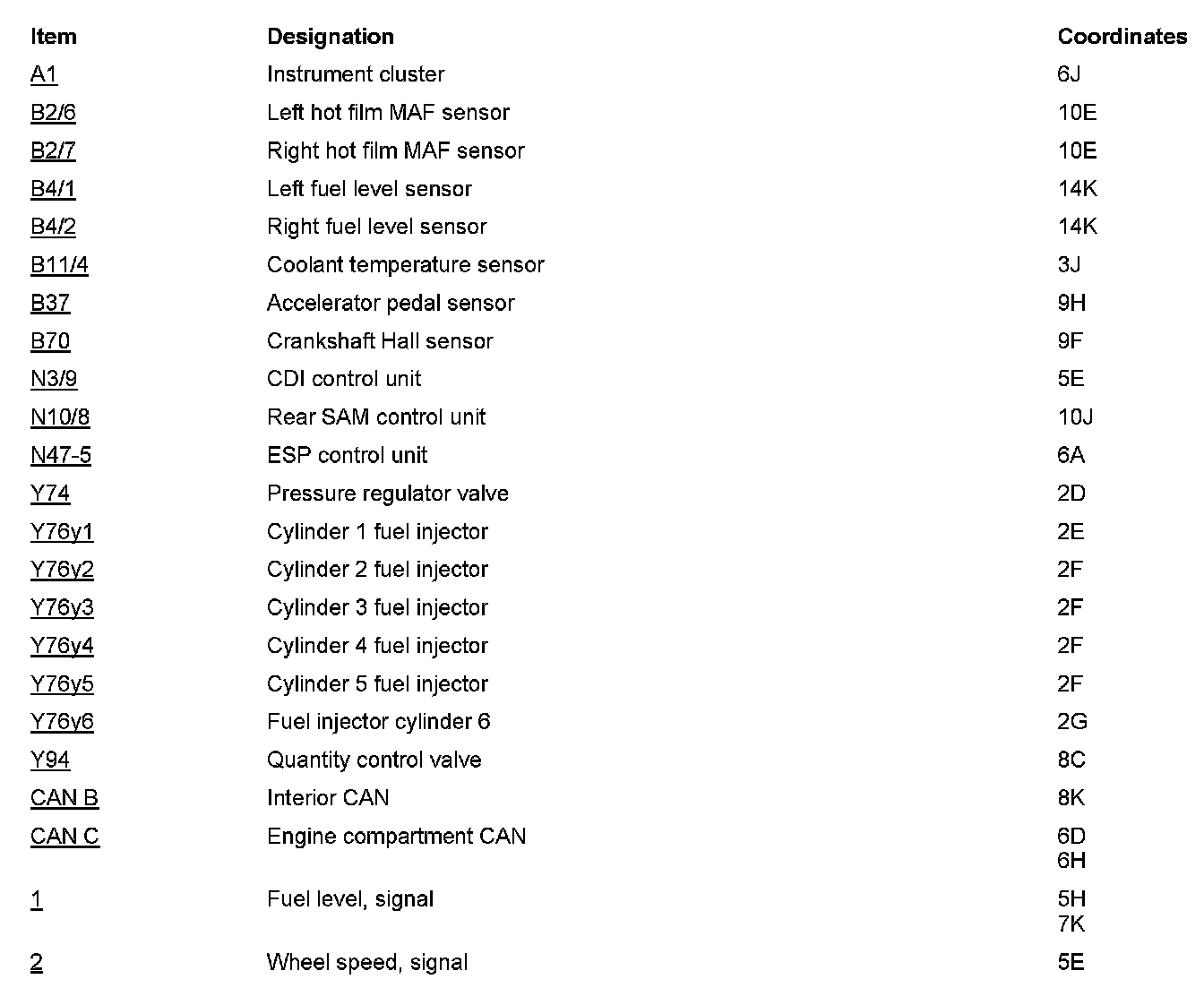

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
