Function Diagrams

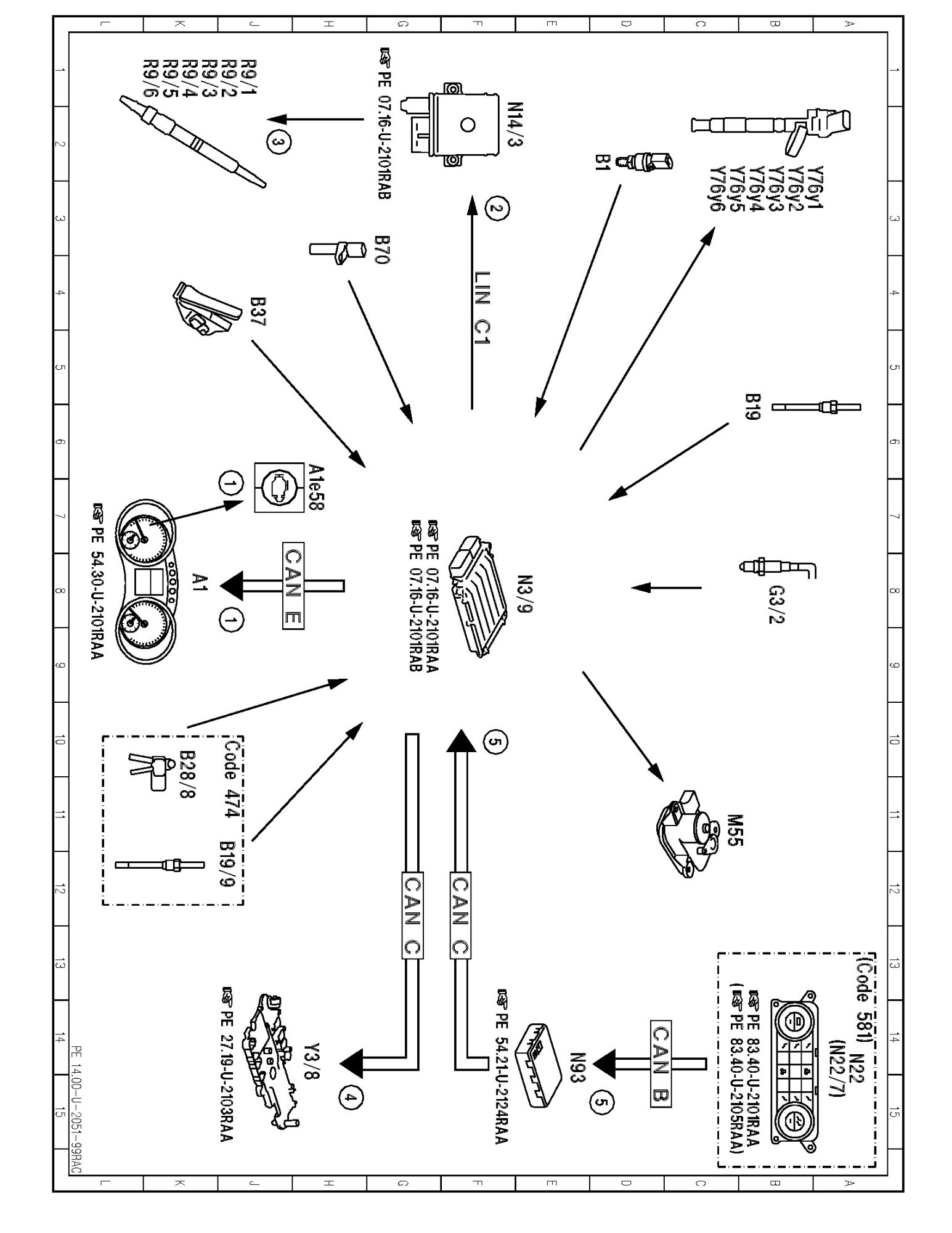

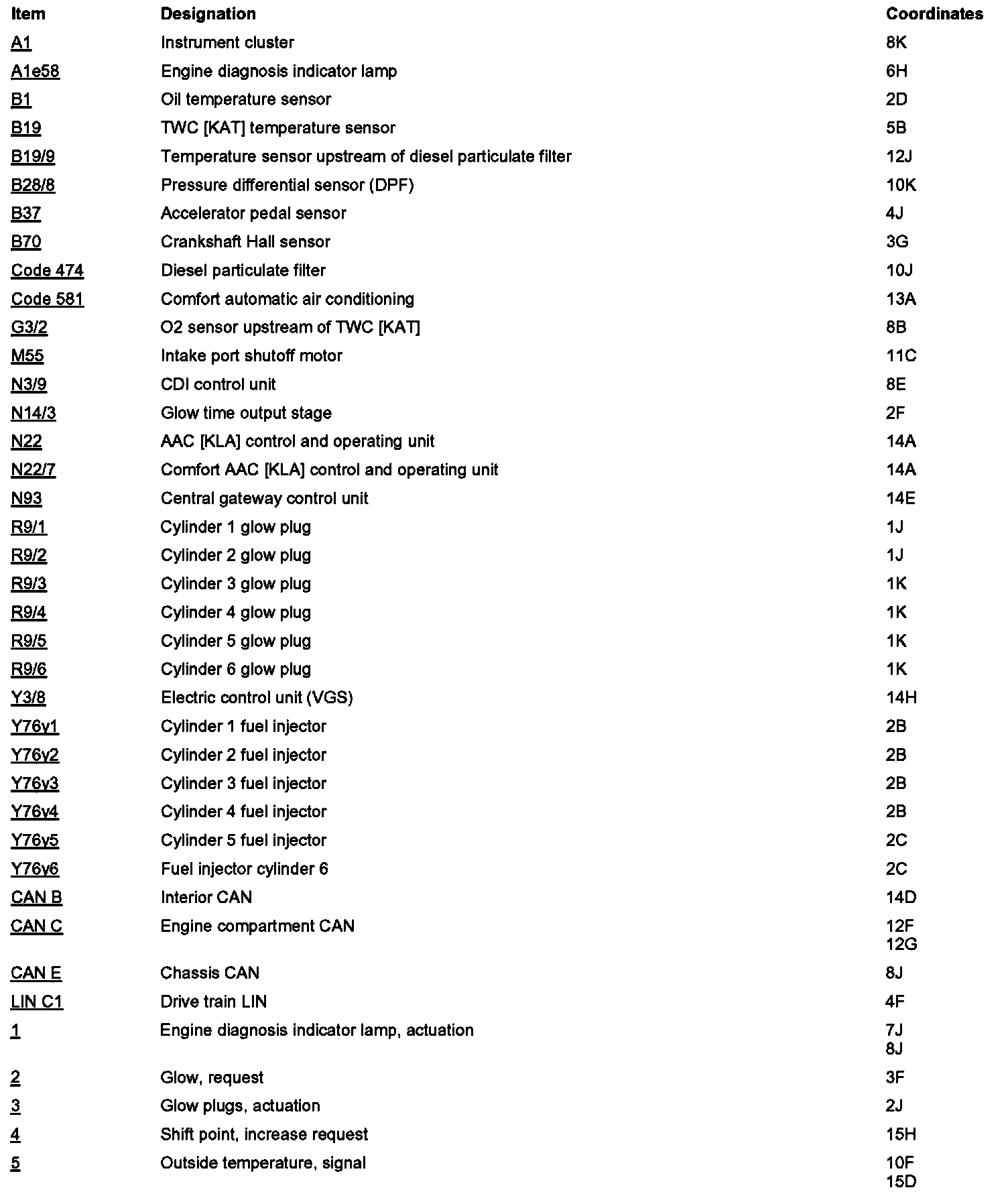

PE14.00-U-2051RAC Electrical Function Schematic For Exhaust Treatment











Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
