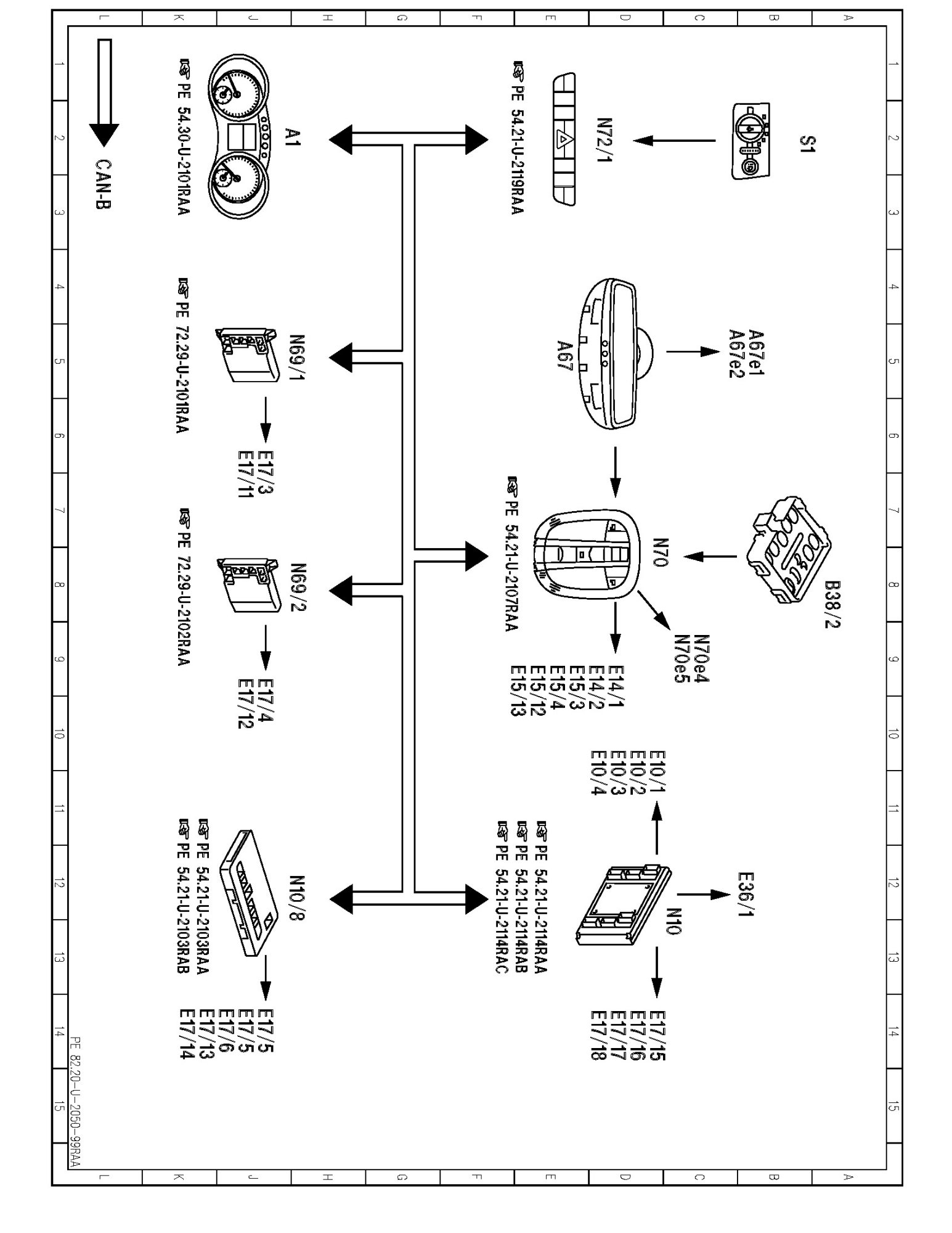

PE82.20-U-2050RAA Electrical System Function Diagram For Interior Lights



PE82.20-U-2050RAA Electrical System Function Diagram For Interior Lights
- up to model year 2008

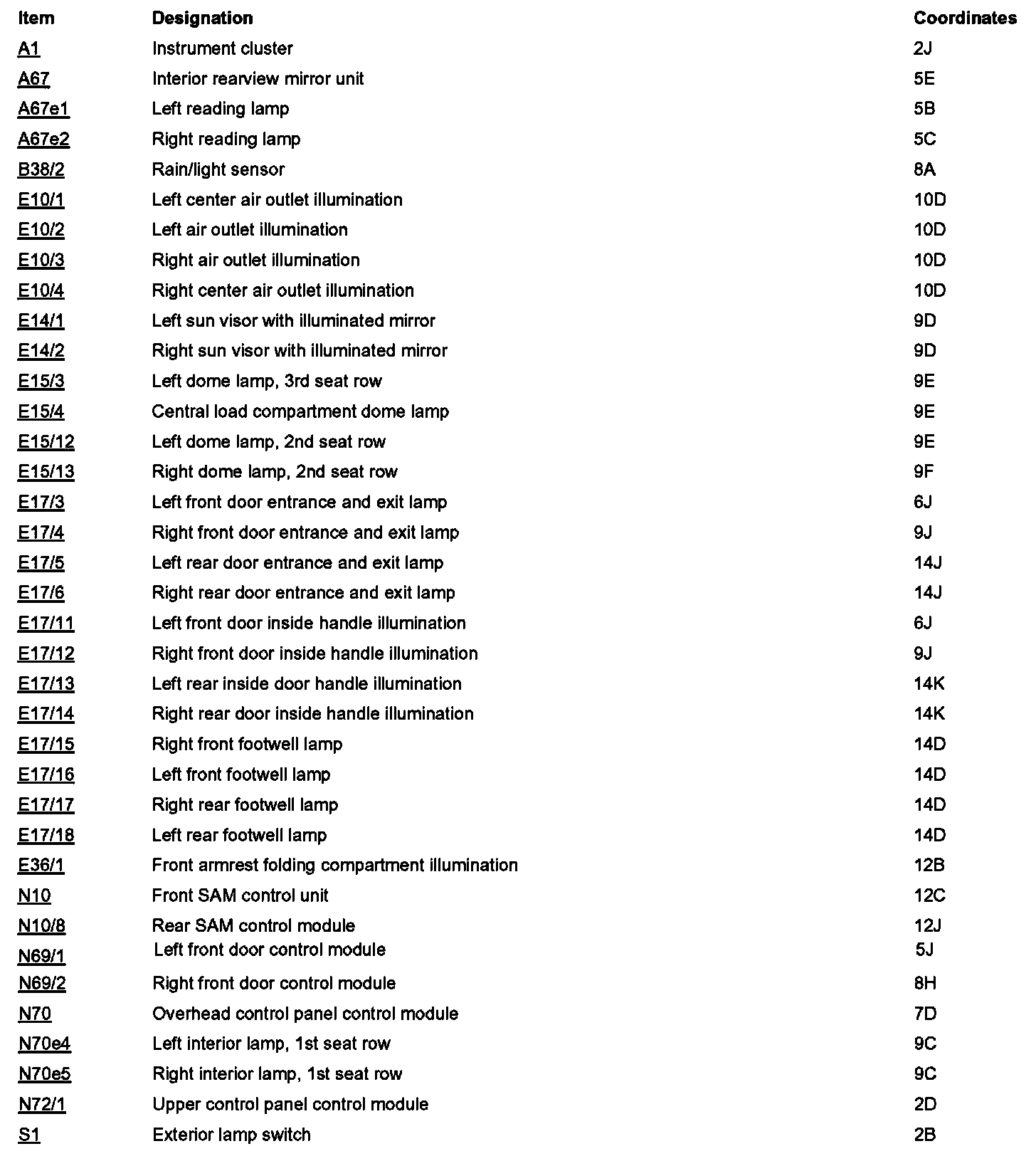

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
