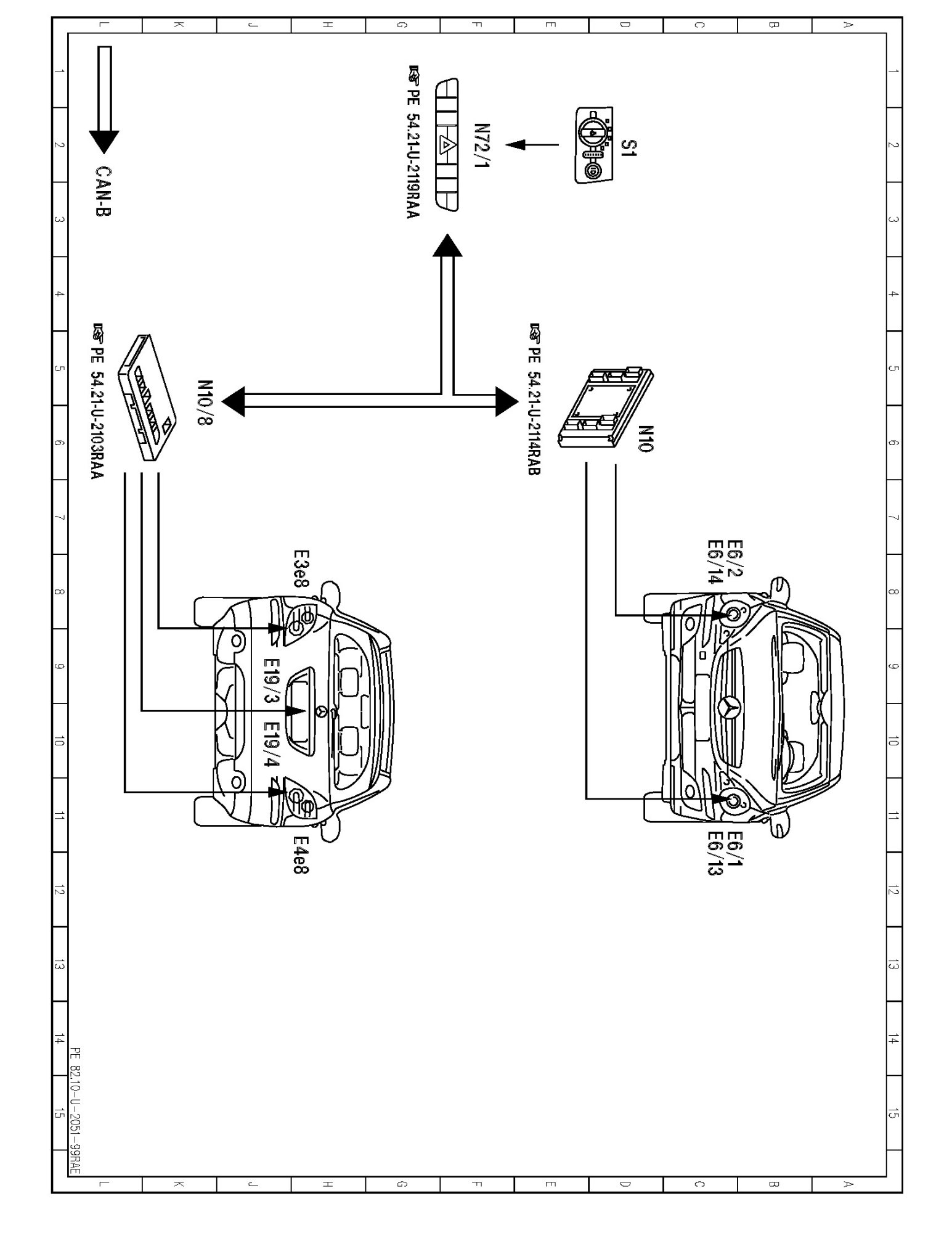

PE82.10-U-2051RAE Electrical System Function Diagram For Exterior Lights



PE82.10-U-2051RAE Electrical System Function Diagram For Exterior Lights

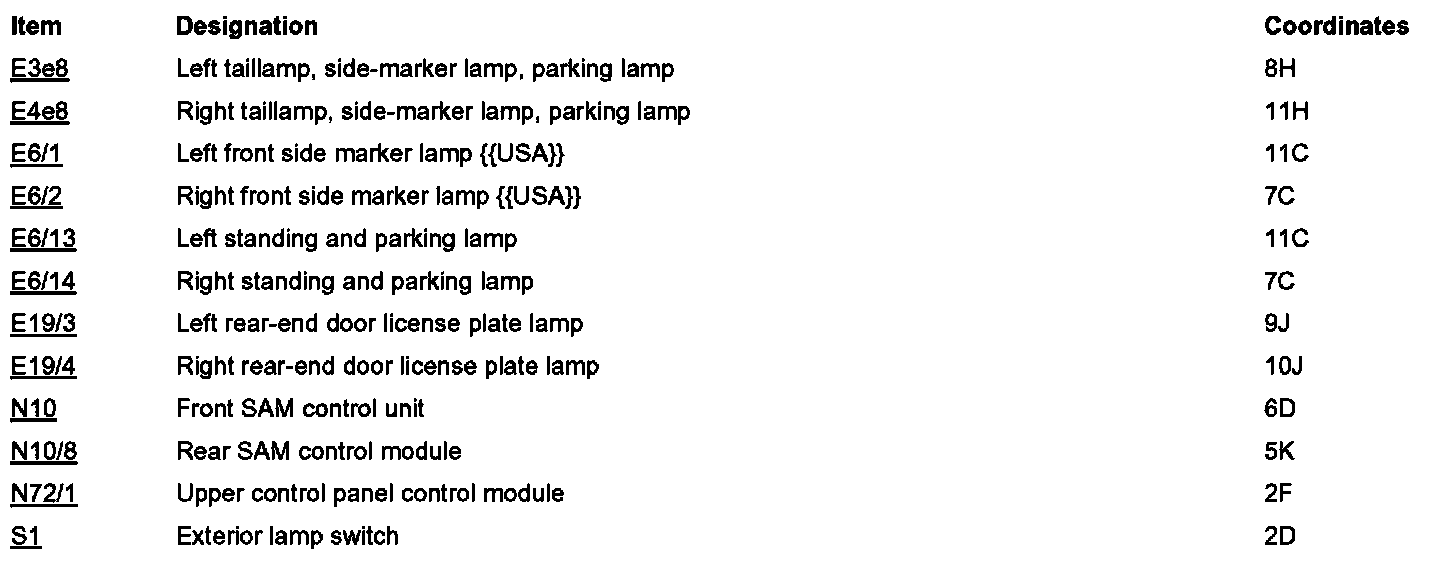

- Standing lamp, parking lamp
- up to model year 2008










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
