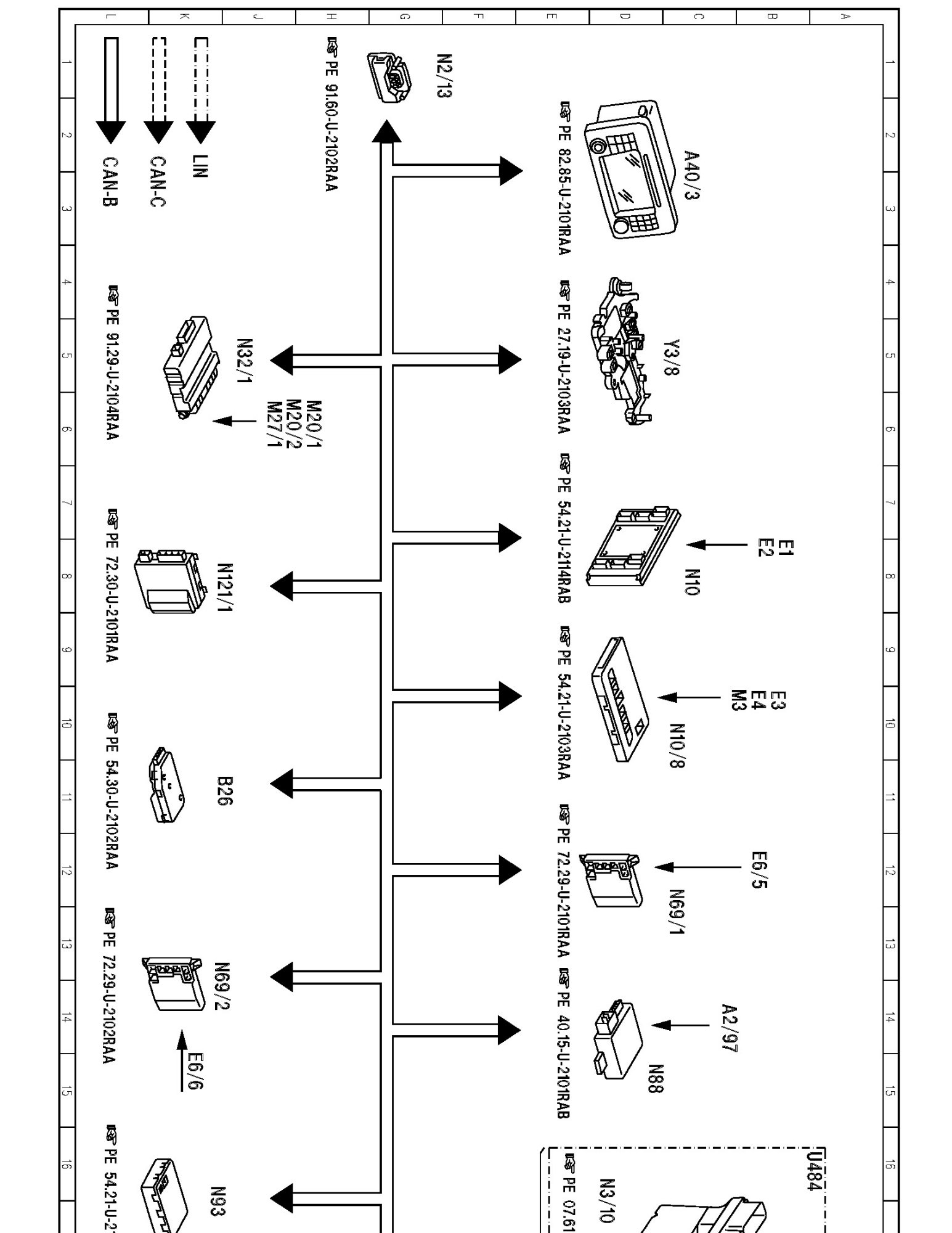

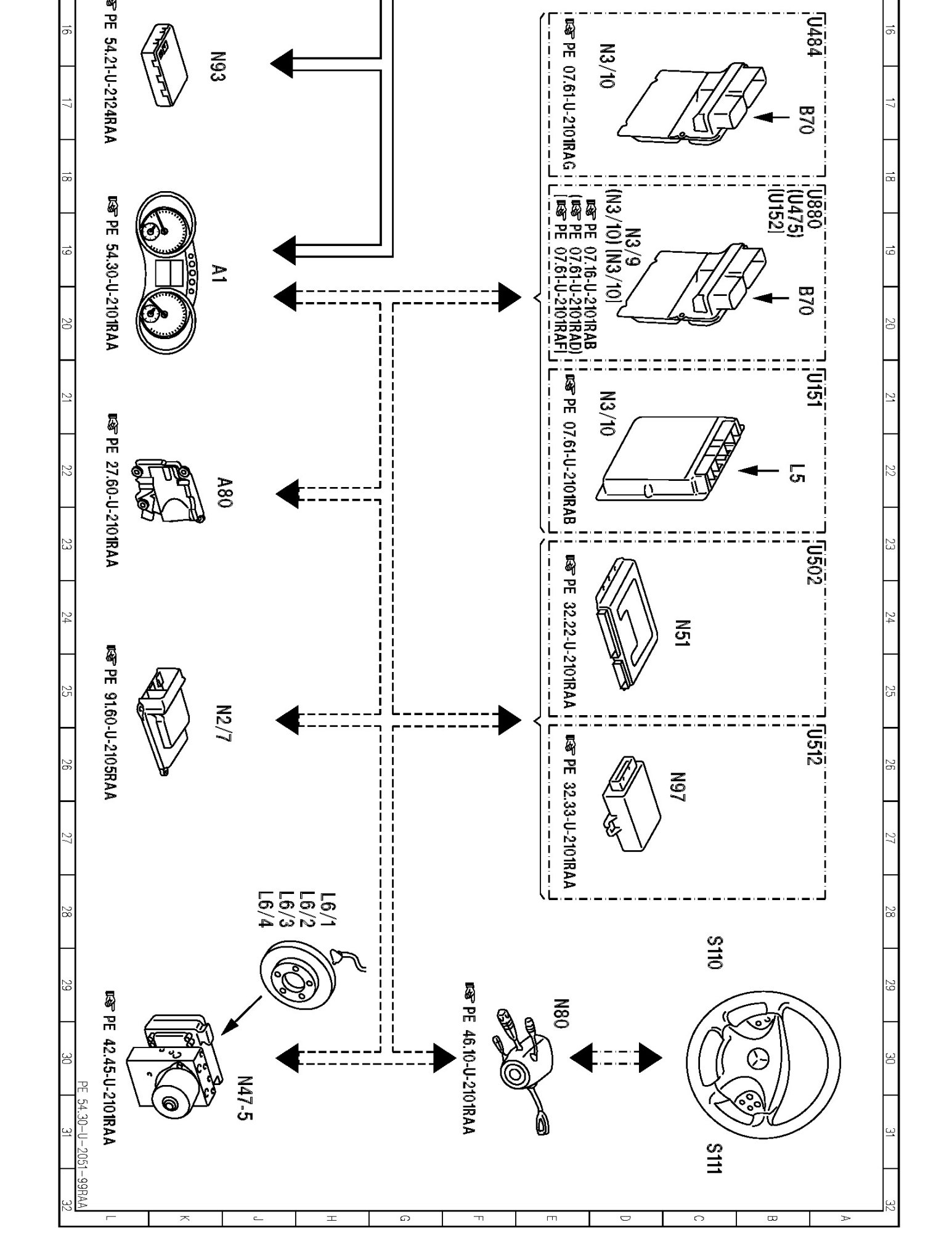

PE54.30-U-2051RAA Function Diagram of Instrument Cluster (IC) Electrical System

PE54.30-U-2051RAA Function Diagram of Instrument Cluster (IC) Electrical System
- up to model year 2008

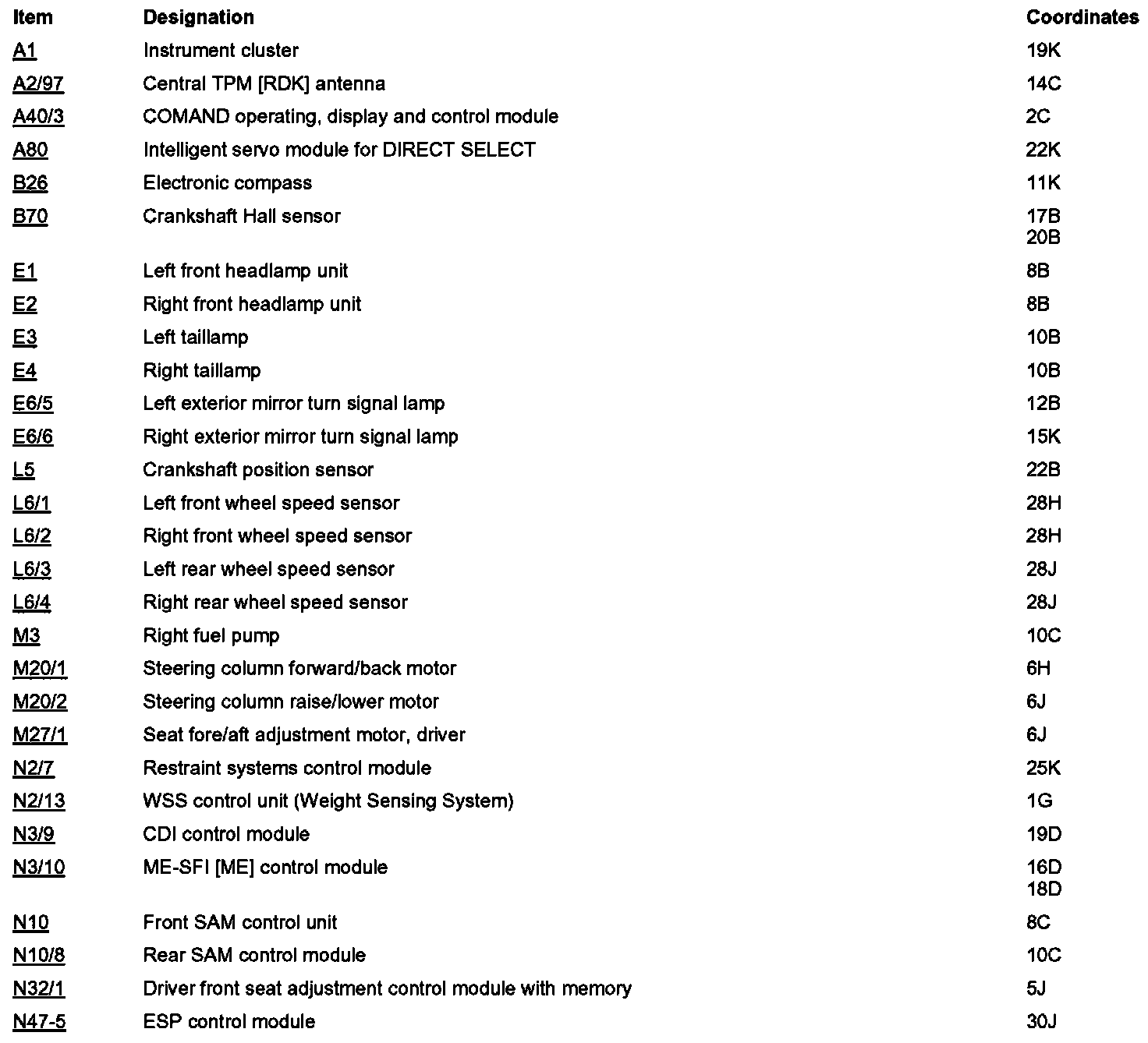

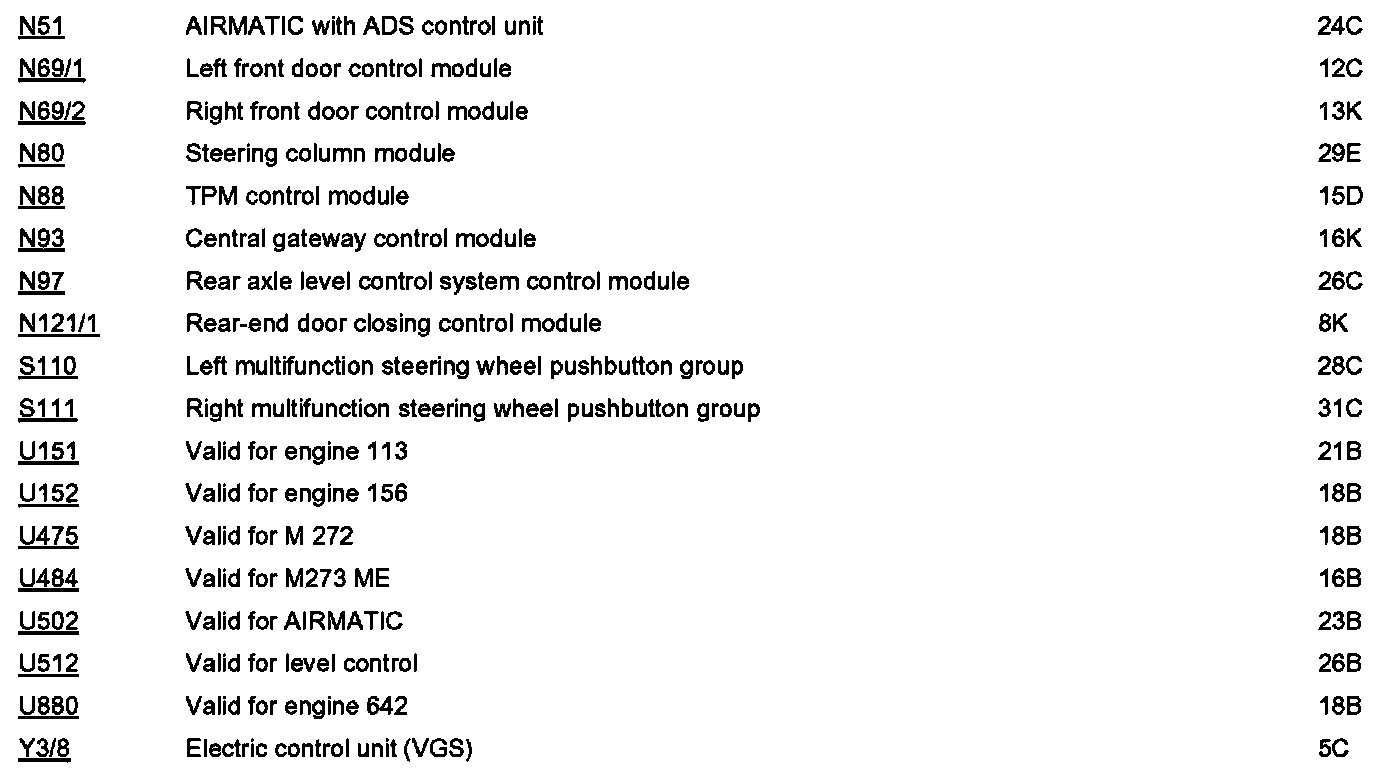

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
