AR72.29-P-0130RT Remove/Install Automatic Rear-End Door Switch
AR72.29-P-0130RT Remove/Install Automatic Rear-End Door Switch
AR72.29-P-0130RT Remove/Install Automatic Rear-End
Door Switch

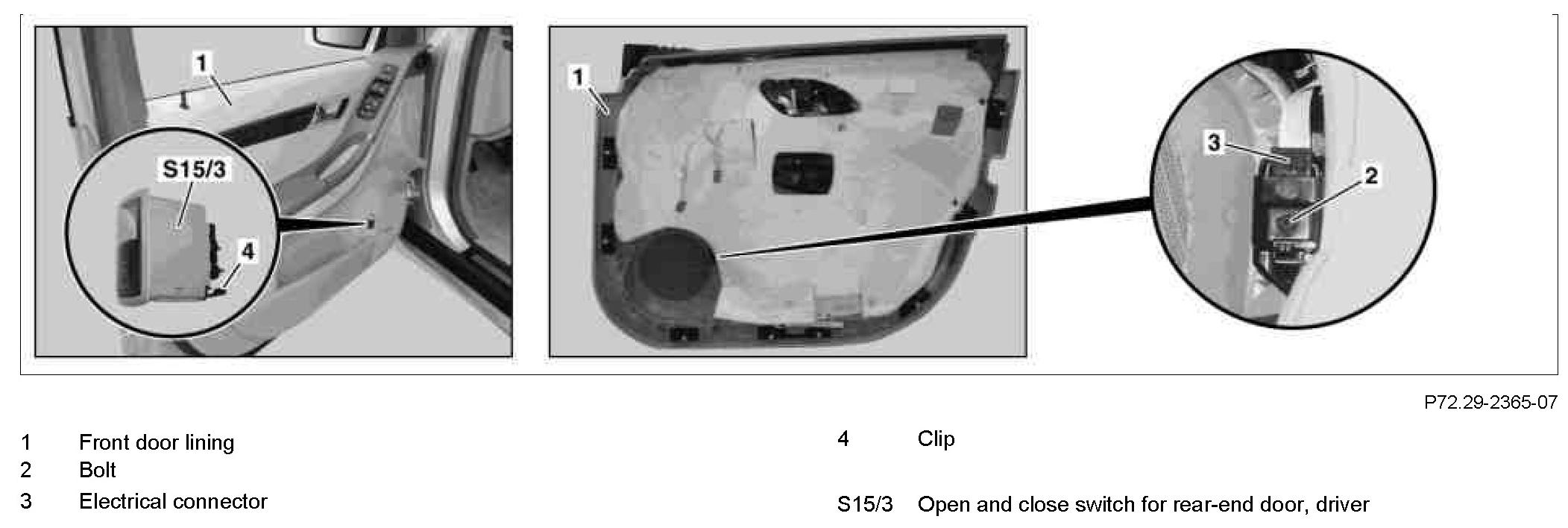

Component Identification:

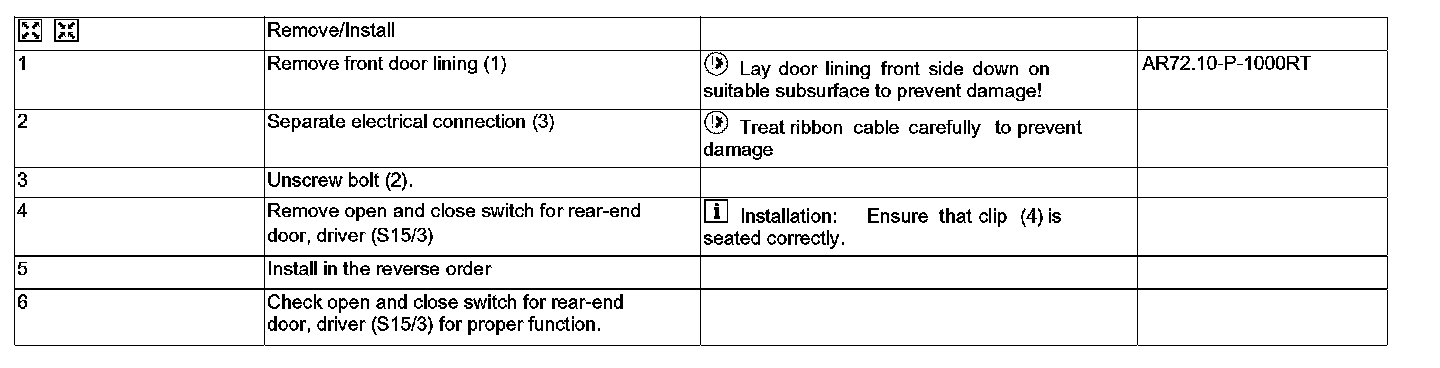

Steps 1 - 6:
