Trunk / Liftgate Closer Module: Service and Repair



AR72.20-P-7551RT Remove/Install Rear Door Closing Control Module
- with CODE (890) Automatic rear-end door

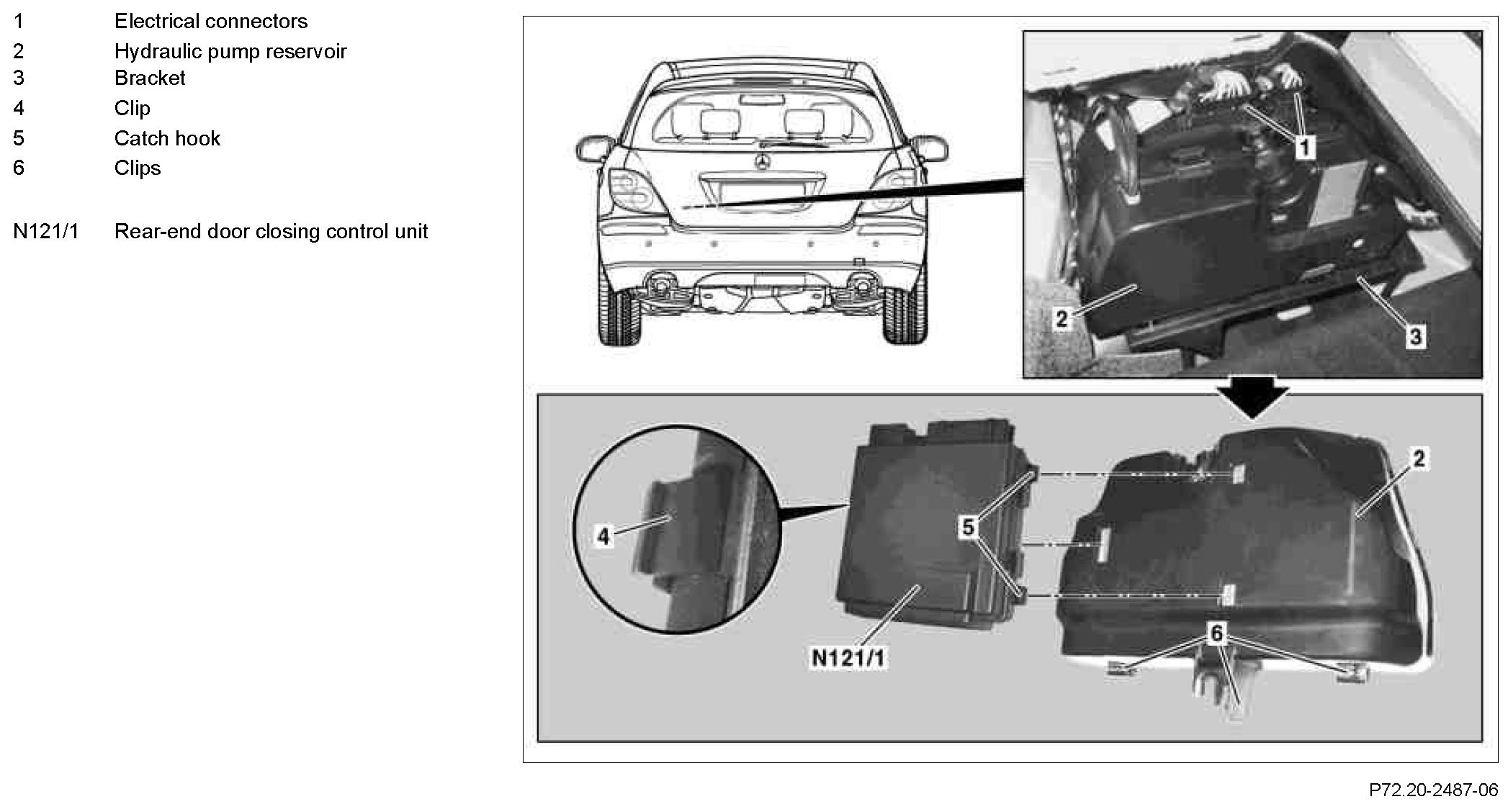

Component Identification:

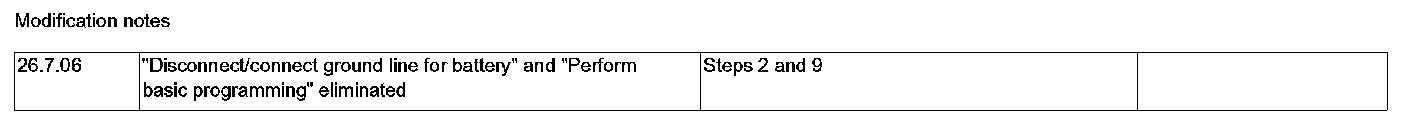

Modification Notes:

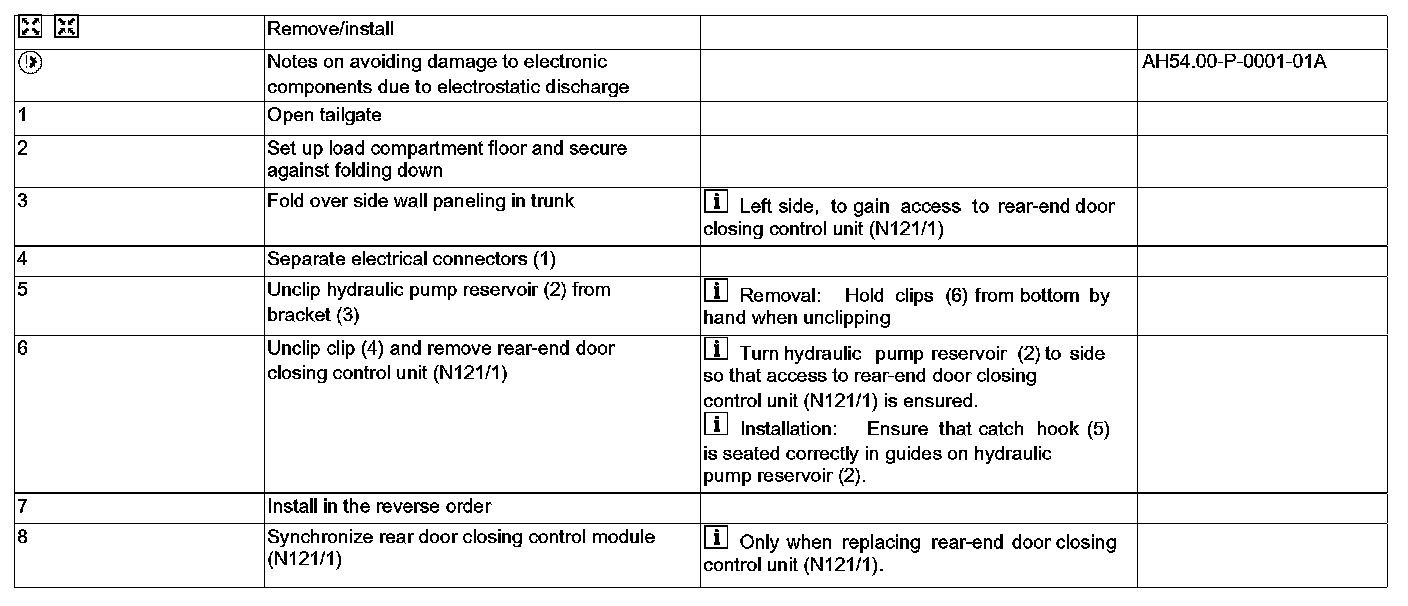

Steps 1 - 8:
