AR91.30-P-0002RT Remove/Install Control Unit For Electrically Heated Left and Right Rear Seats

AR91.30-P-0002RT Remove/Install Control Unit For Electrically Heated Left And Right Rear Seats
- with CODE (872) Electrically heated left and right rear seats

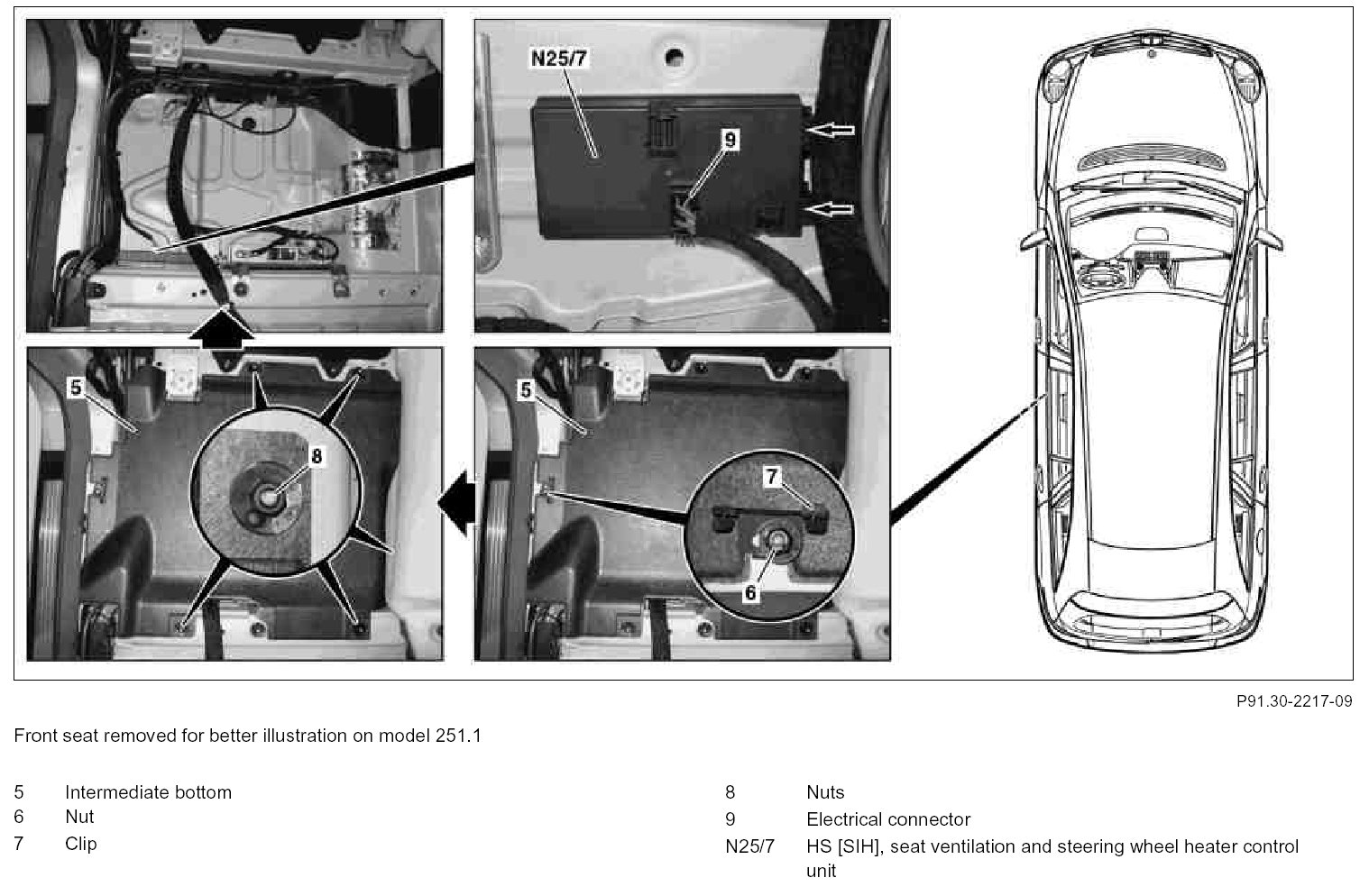

Component Identification:

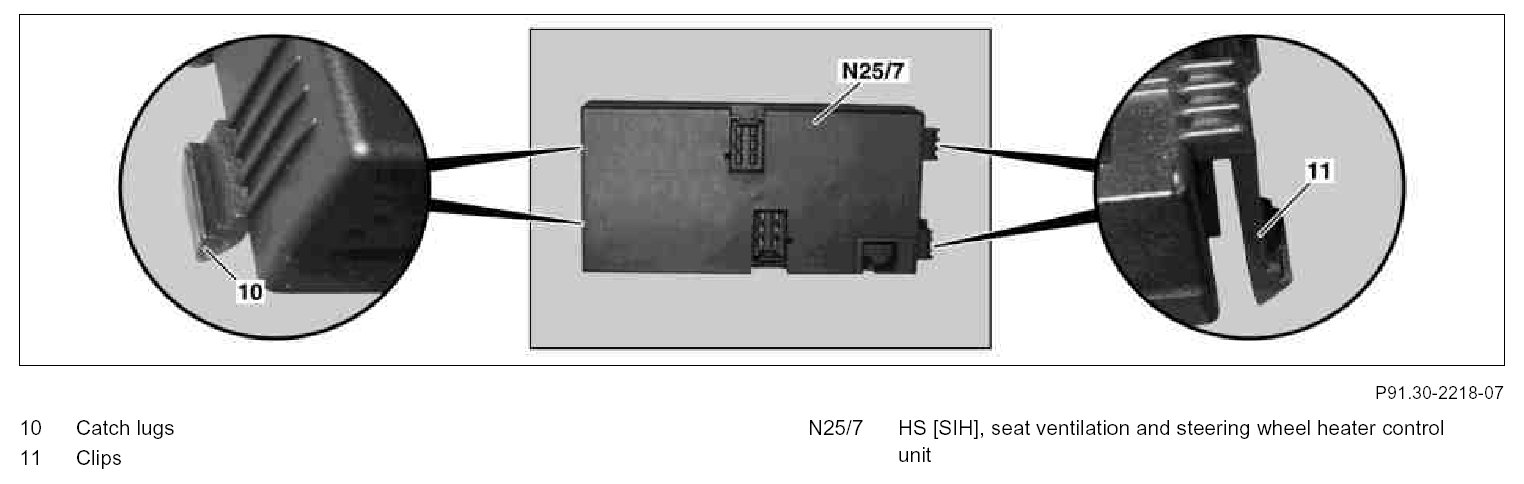

Component Identification:

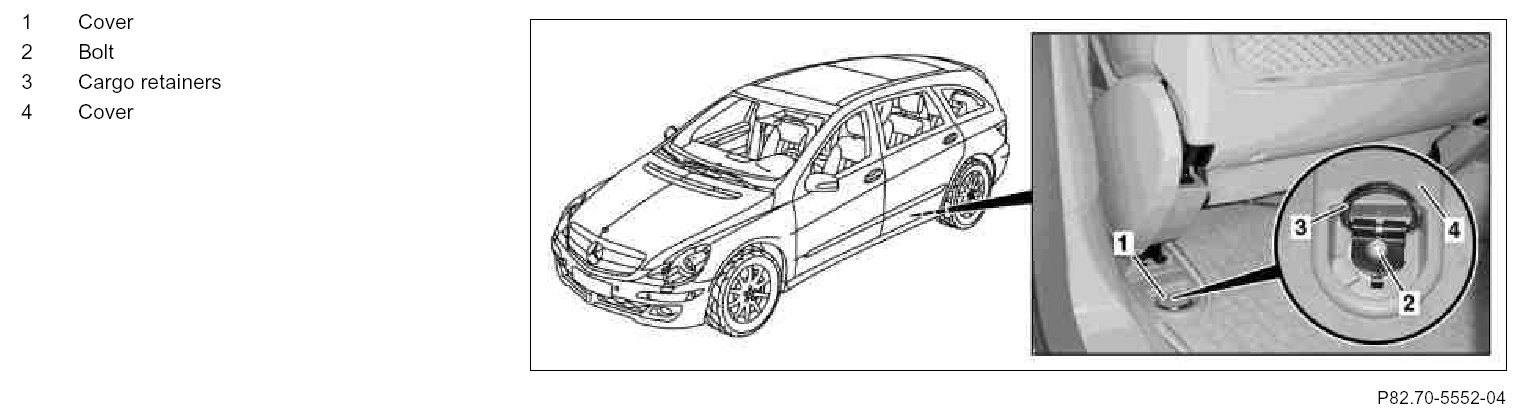

Component Identification:

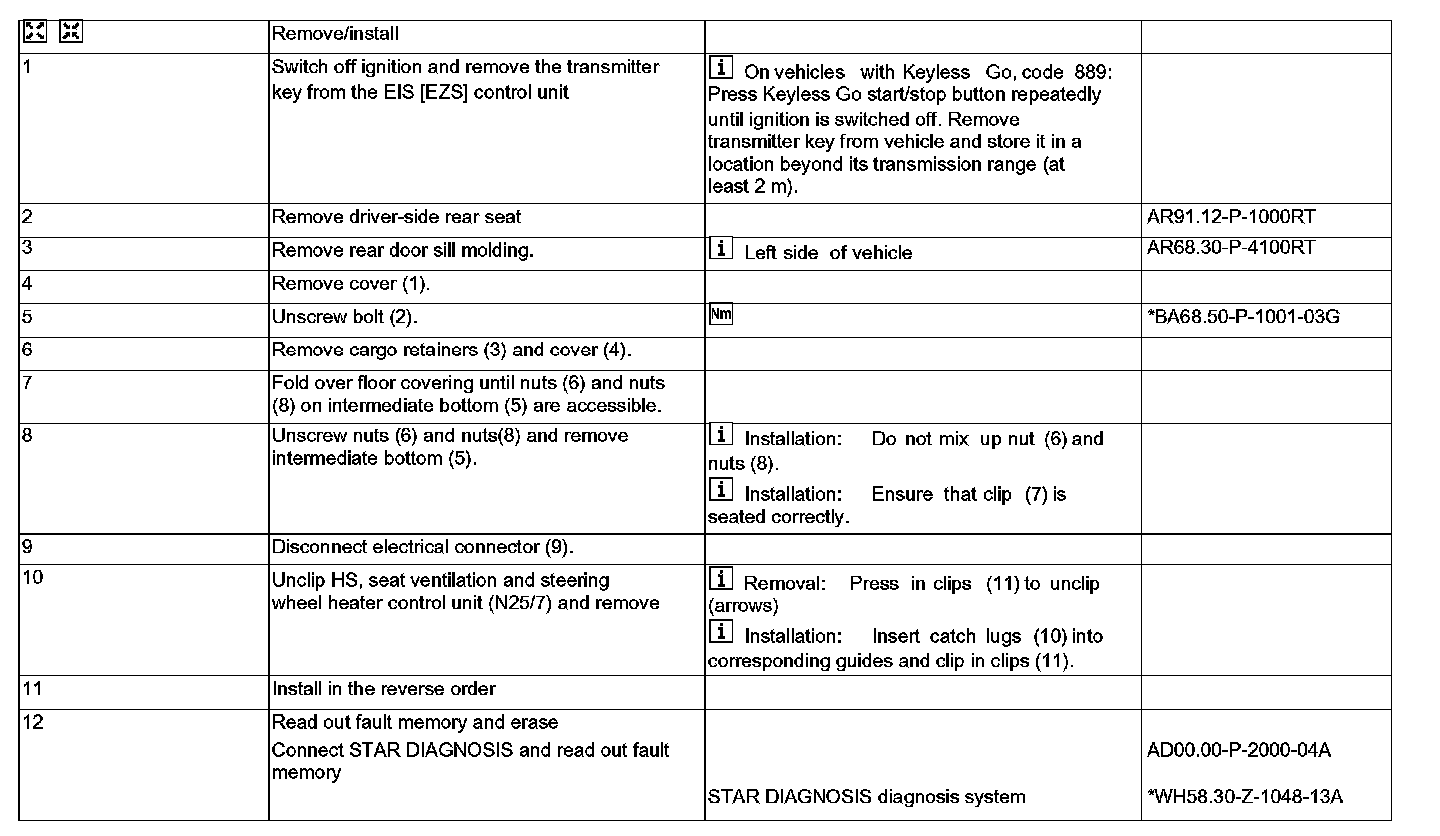

Steps 1 - 12:

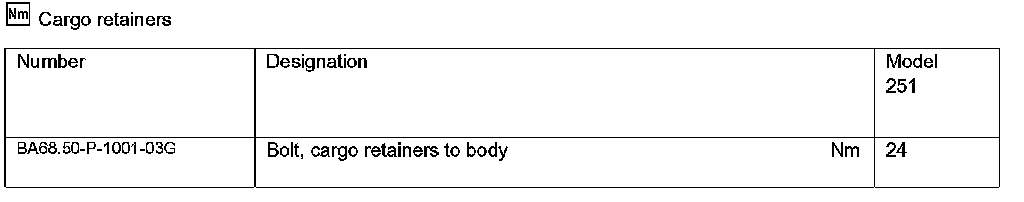

Cargo Retainers:

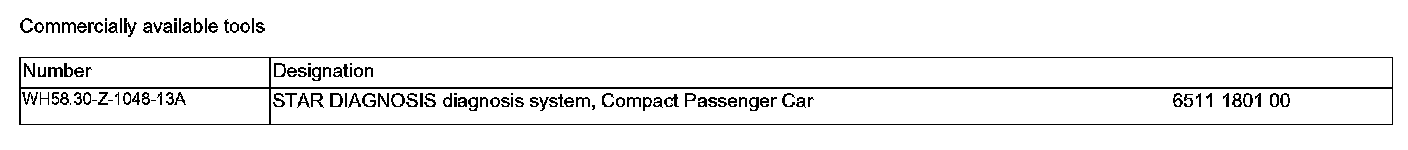

Commercially Available Tools:
