Sun Visor: Service and Repair
AR68.60-P-5480RT Remove/Install
Sun Visor

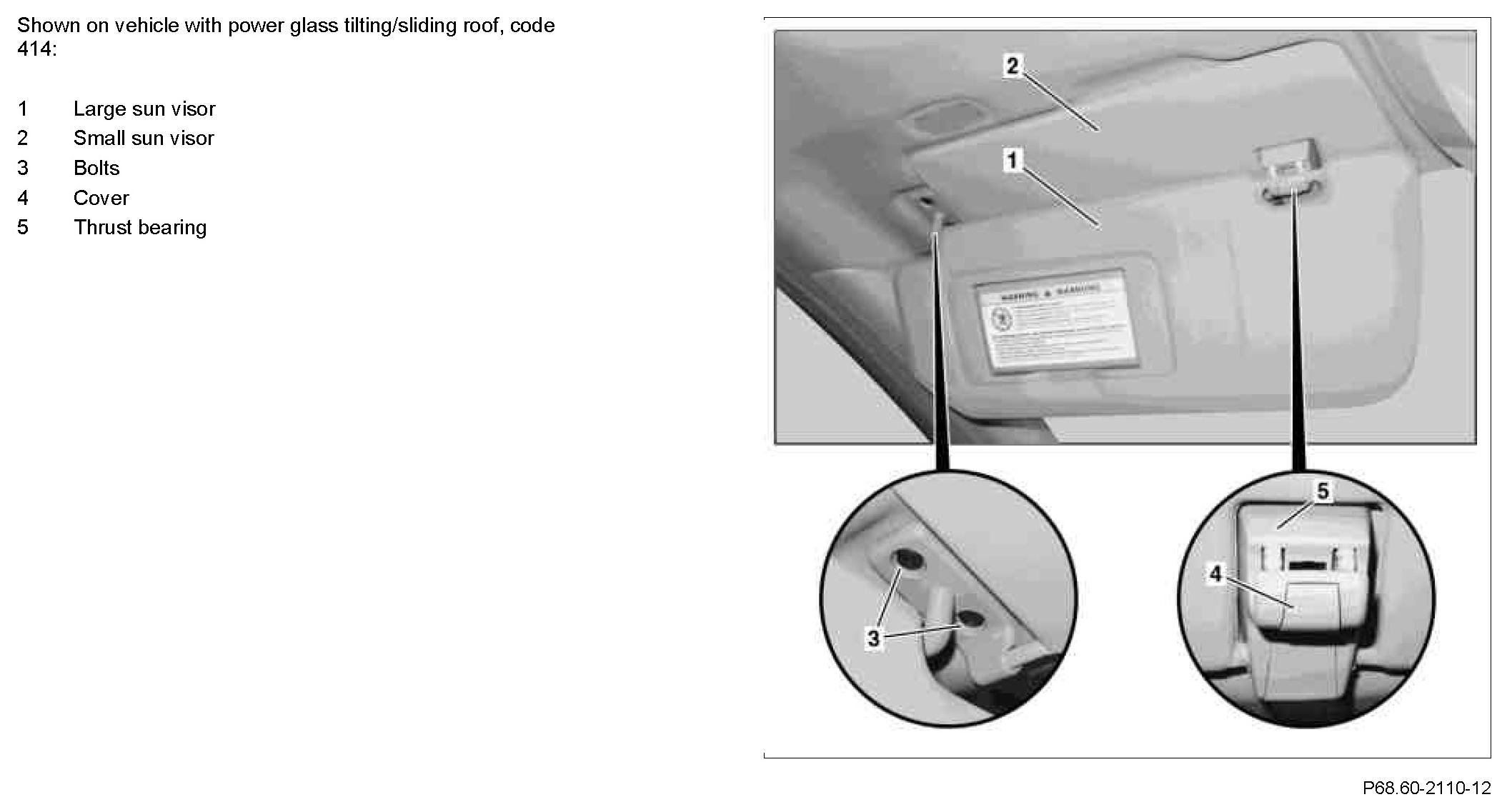

Component Identification:

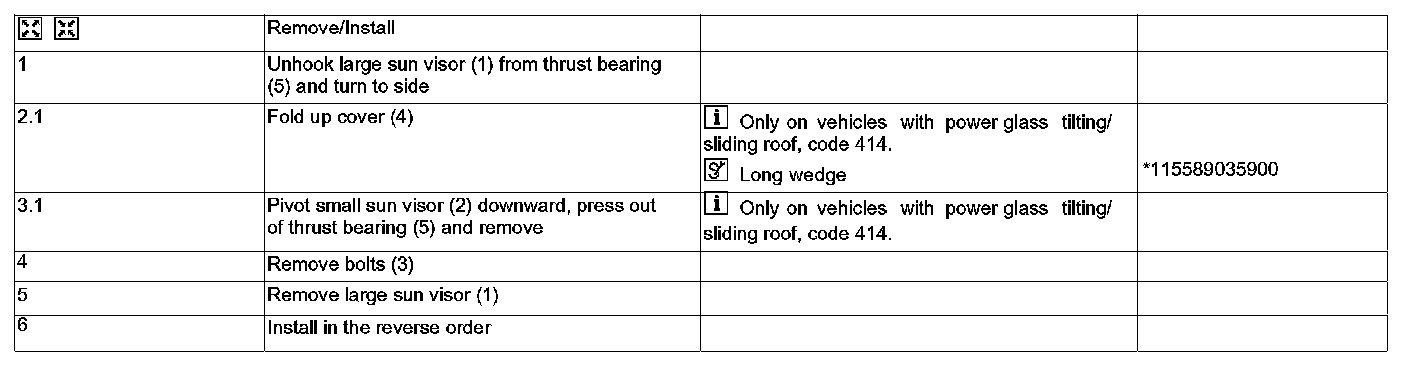

Steps 1 - 6:

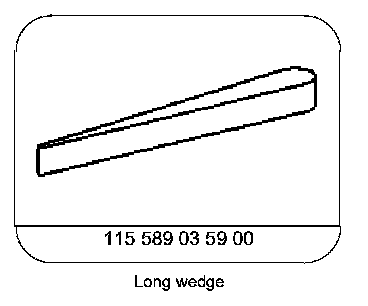

Special Tools:
