Trunk / Liftgate Latch: Service and Repair
AR72.20-P-2550RT Remove/Install Rear-End Door Lock
Component Identification:

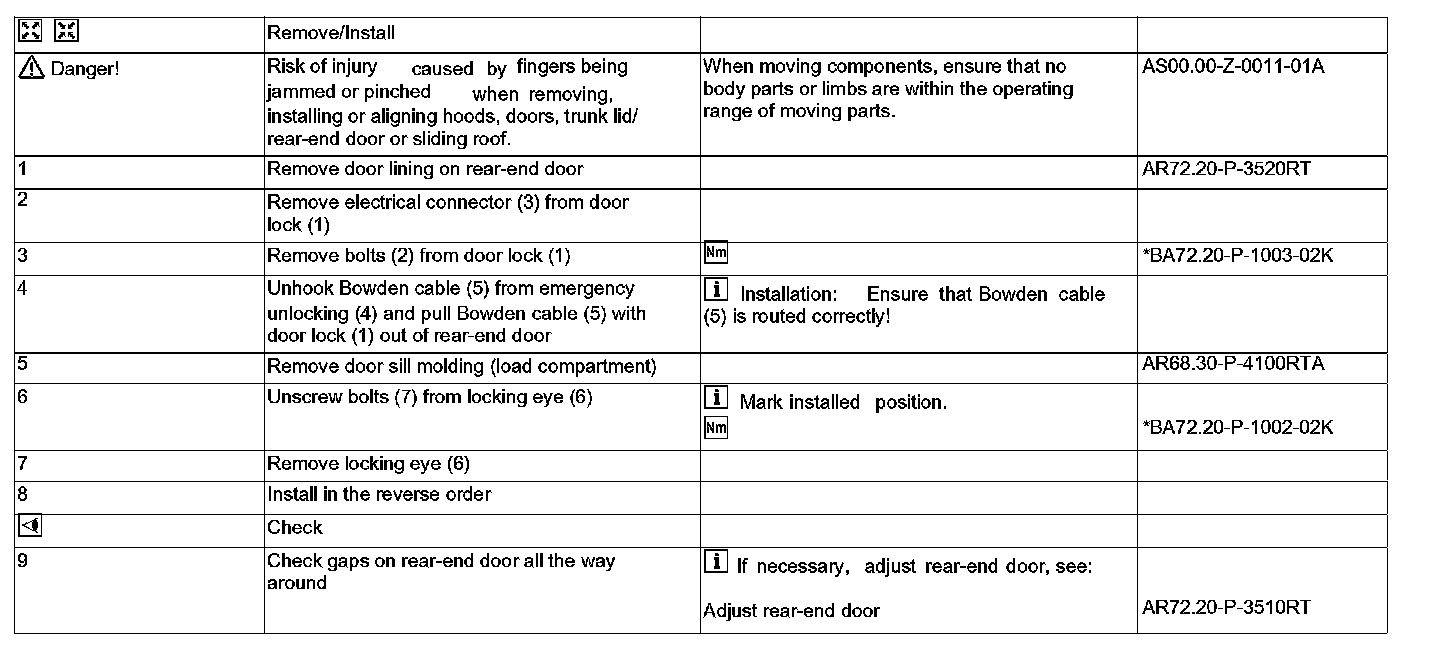

Steps 1 - 9:

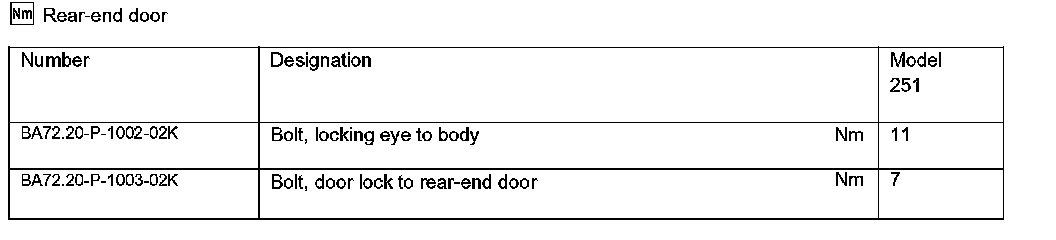

Rear-End Door:
