Trunk / Liftgate: Adjustments
AR72.20-P-3510RT Adjust Rear-End Door

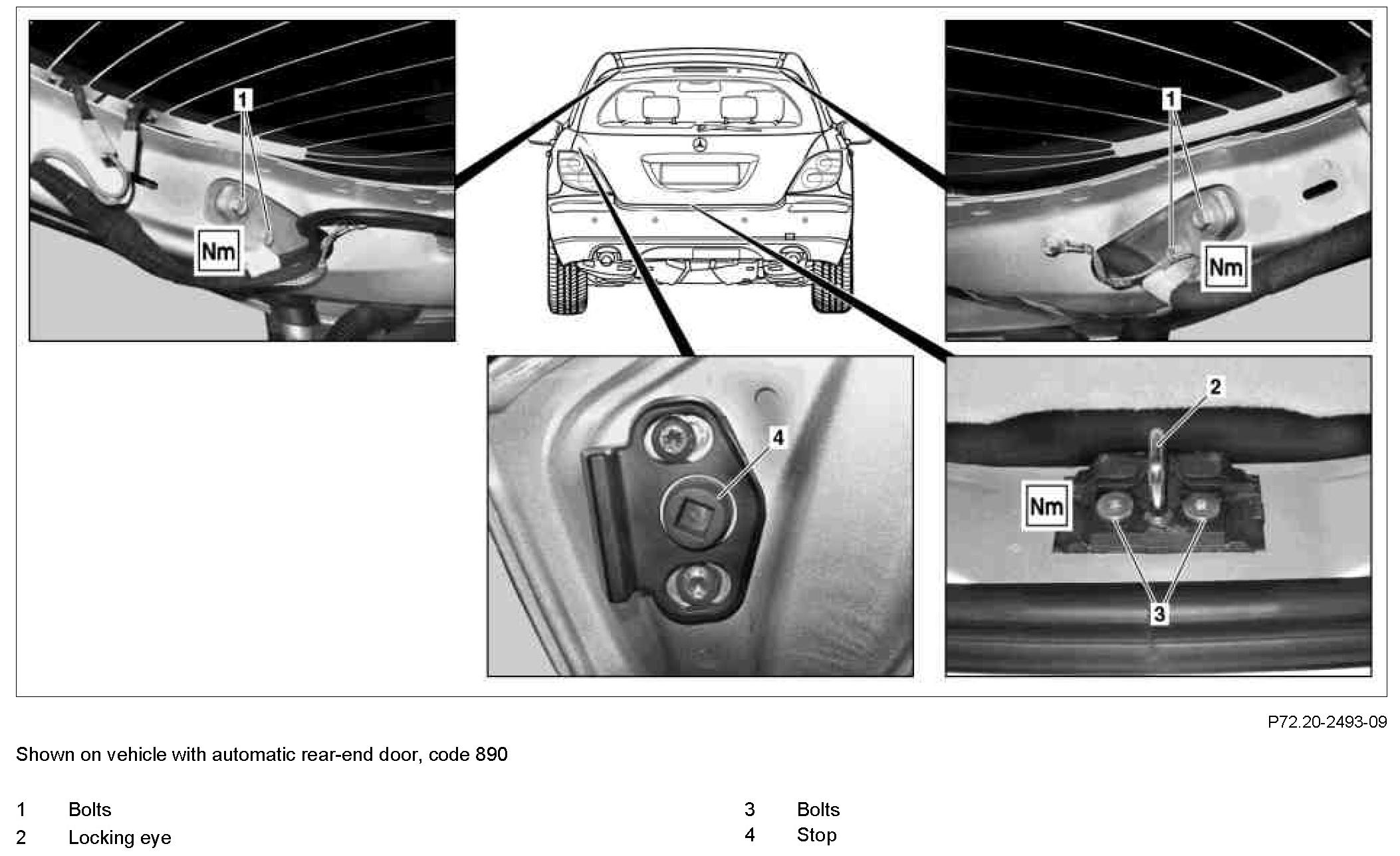

Component Identification:

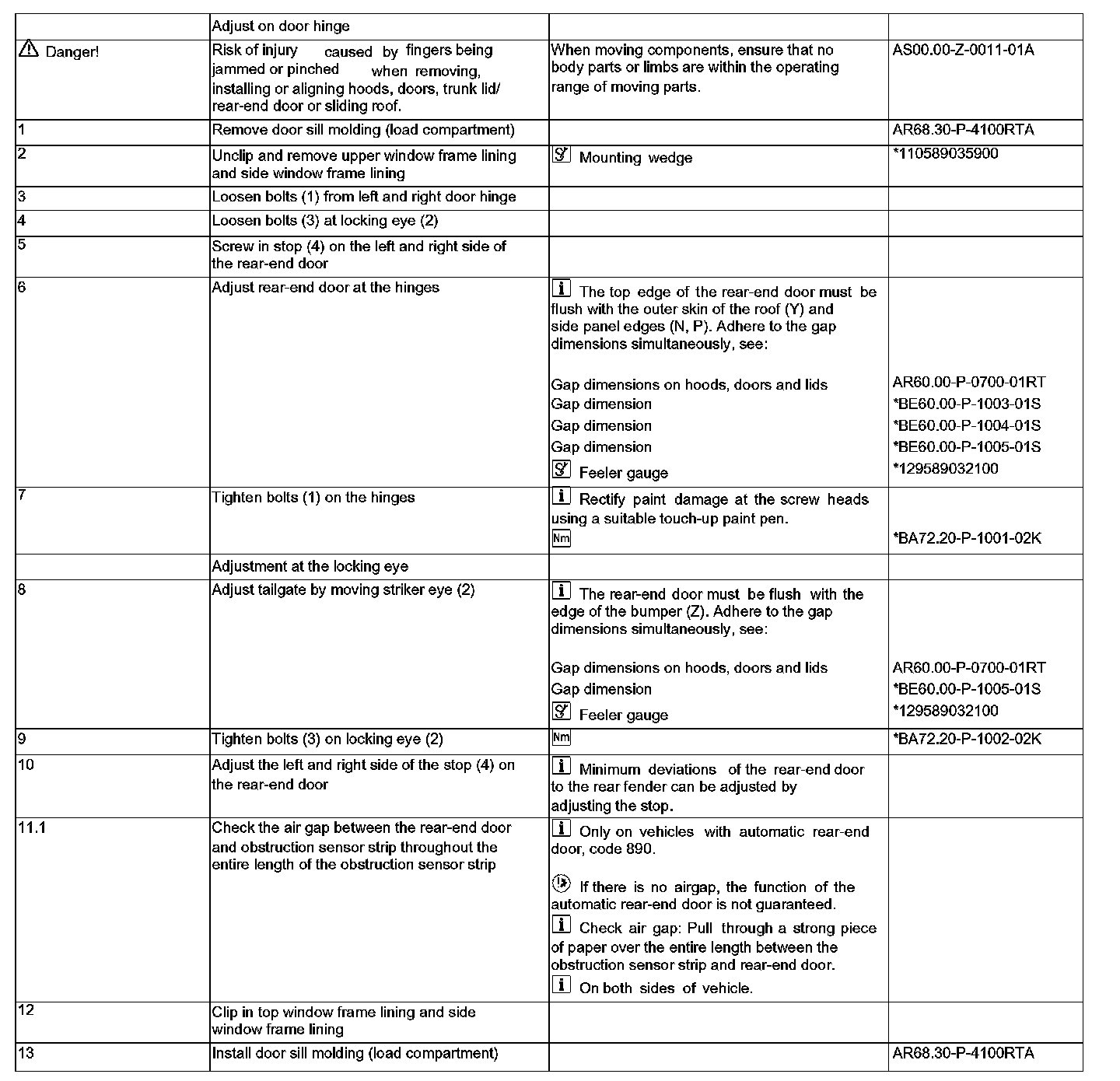

Steps 1 - 13:

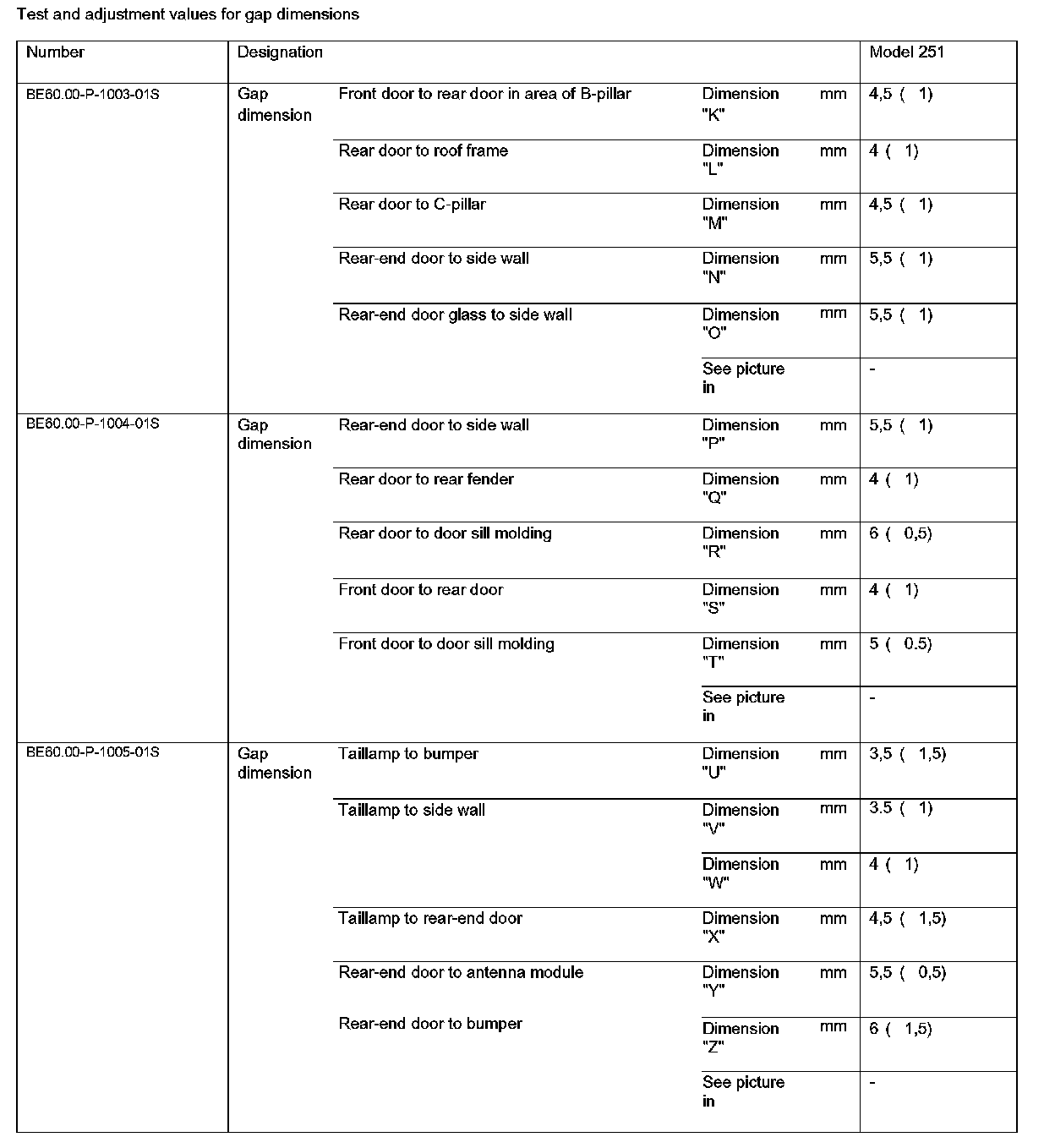

Test And Adjustment Values For Gap Dimensions:

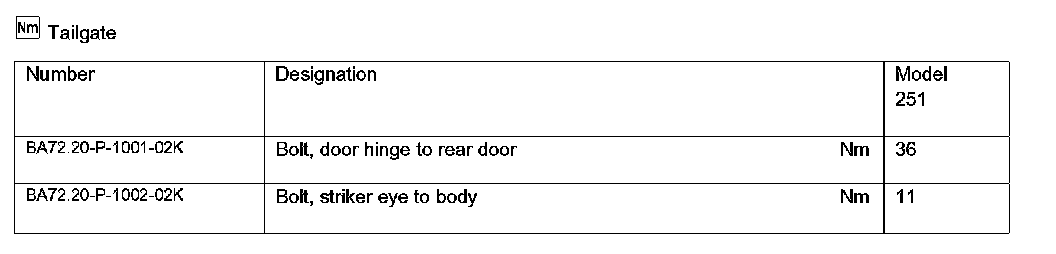

Tailgate:
Special Tools:
