Procedures

AN82.64-P-0001RT Retrofit CD Changer
MODEL 251 up to 30.6.07
- except CODE (808) Model year 2008

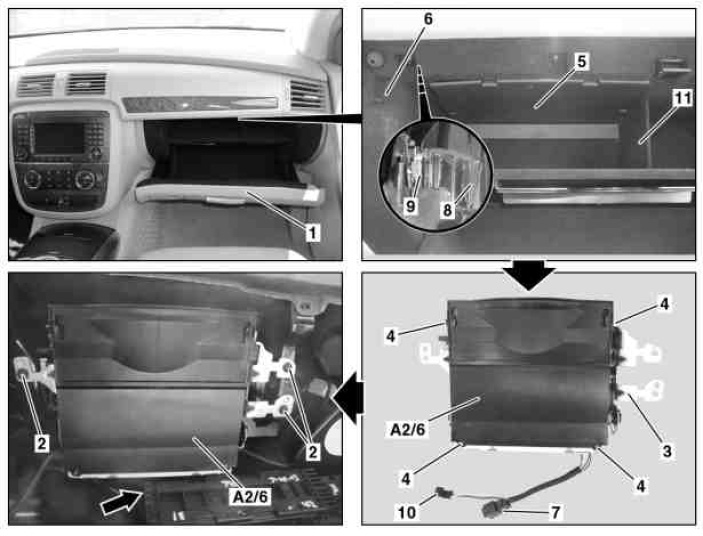

1 Glove compartment
2 Bolts
3 Bracket
4 Bolts
5 Cover
6 Rated breakpoint
7 Electrical connector for Media Oriented System Transport (MOST)
8 Release
9 Spring
10 Electrical connector, cable
11 Web
A2/6 CD changer











115 589 03 59 00
Long wedge
