Home >> Mercedes Benz Truck >> 2007 >> R 320 CDI (251.122) V6-3.0L DSL Turbo (642.950) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Transmitter >> Keyless Entry Transmitter Battery >> Service and Repair >> AR80.35-P-4210RTA Remove/Install Batteries For Transmitter Key

AR80.35-P-4210RTA Remove/Install Batteries For Transmitter Key



AR80.35-P-4210RTA Remove/Install Batteries For Transmitter Key
- except CODE (889) Keyless Go

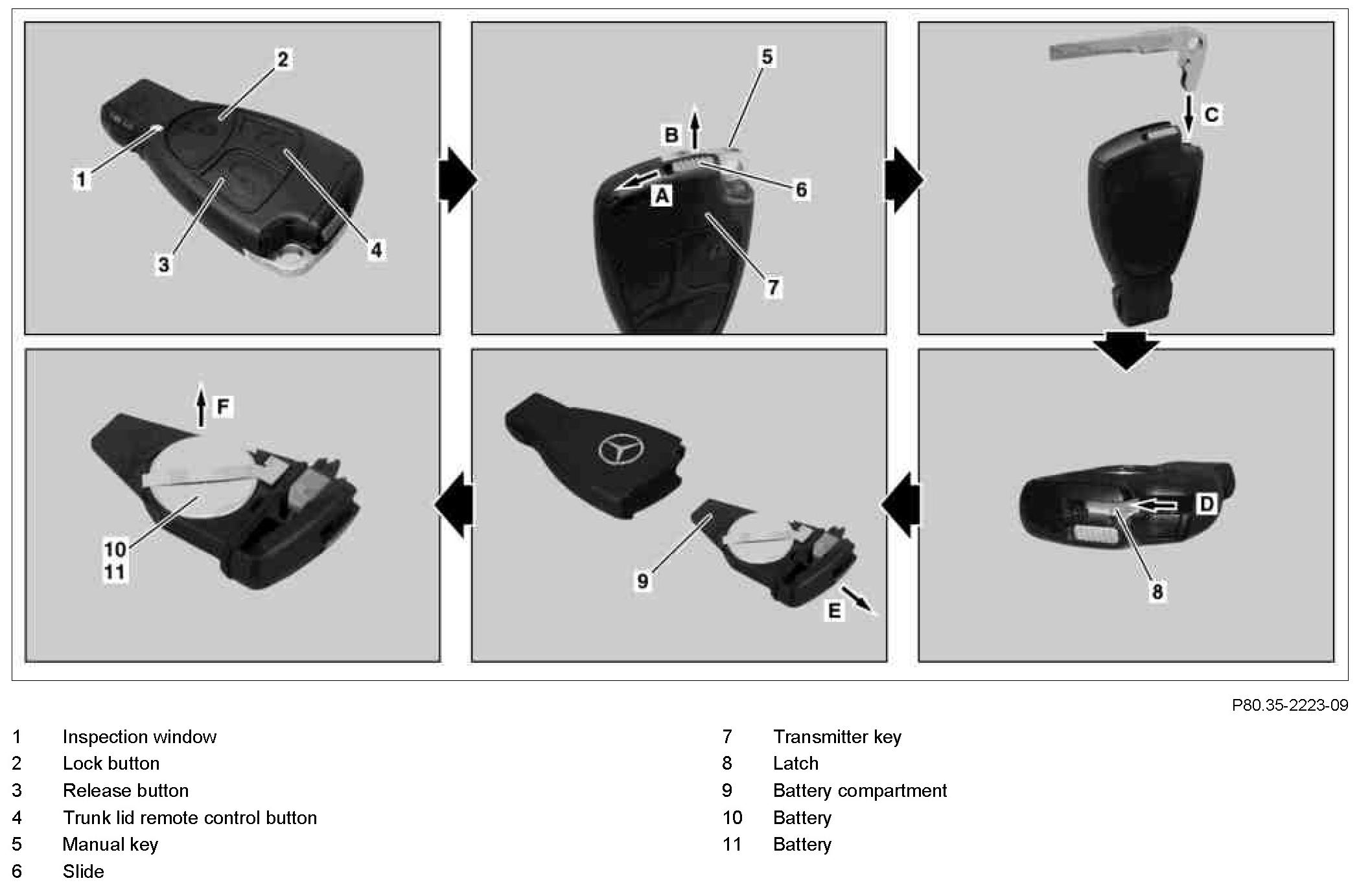

Component Identification:

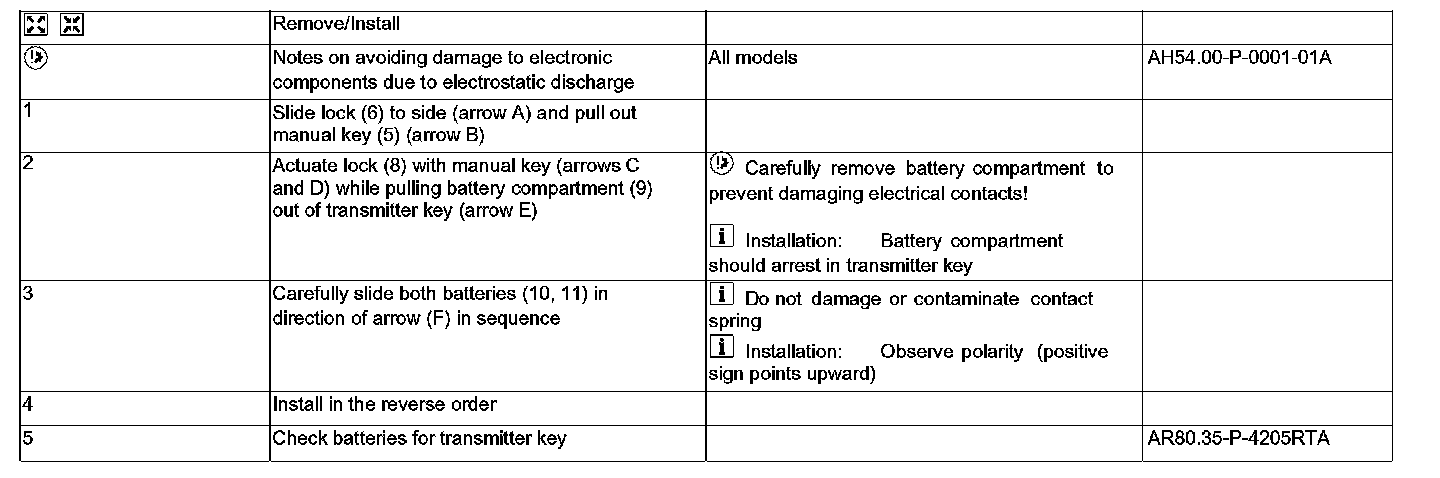

Steps 1 - 5:
