AR28.19-P-1010GZ Remove/Install Transfer Case Switchover Magnet




AR28.19-P-1010GZ Remove/Install Transfer Case Switchover Magnet
MODEL 164
- with CODE (430) Offroad package

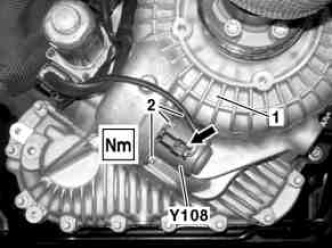

1 Transfer case
2 Bolts

Y108 Transfer case switchover magnet
