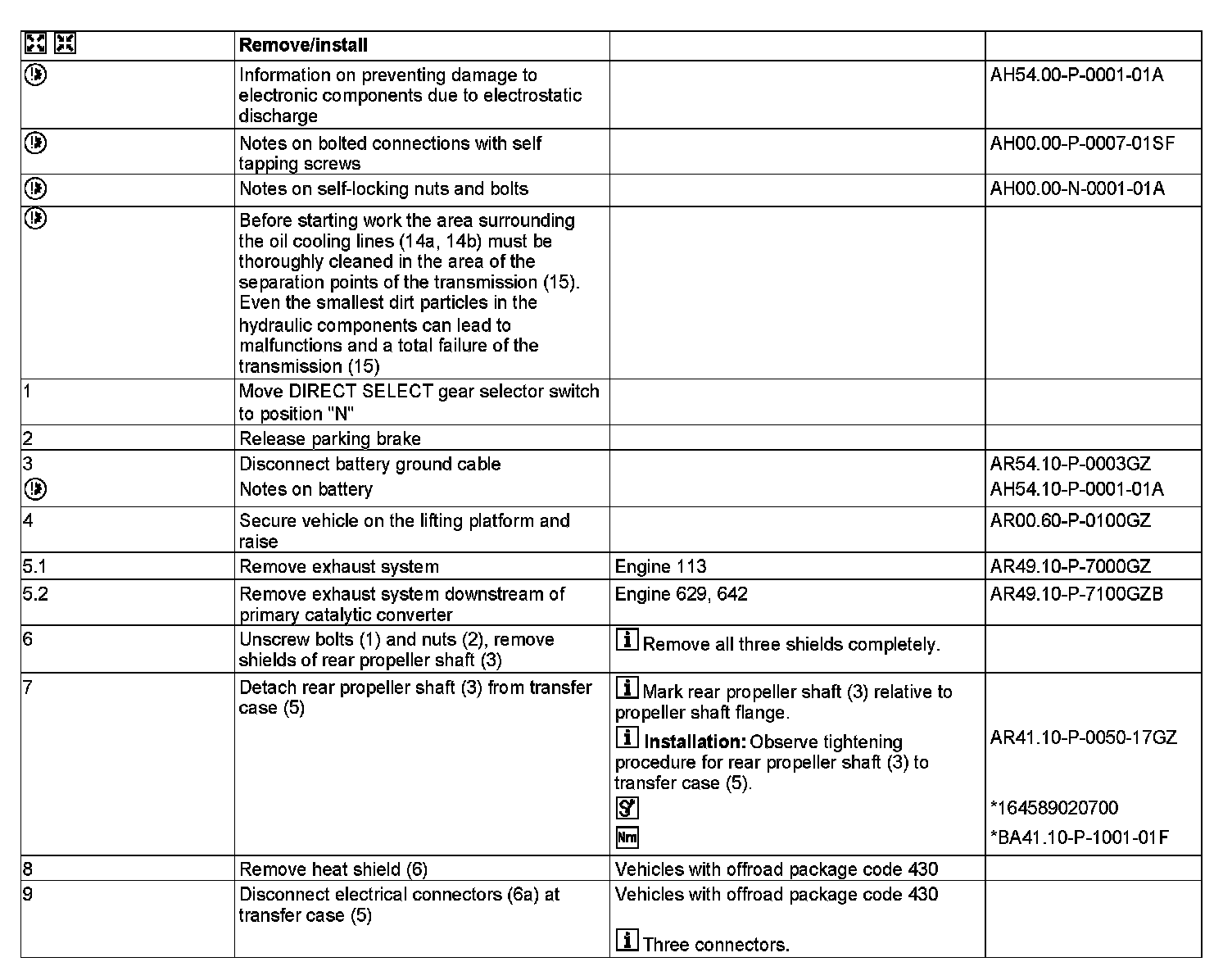

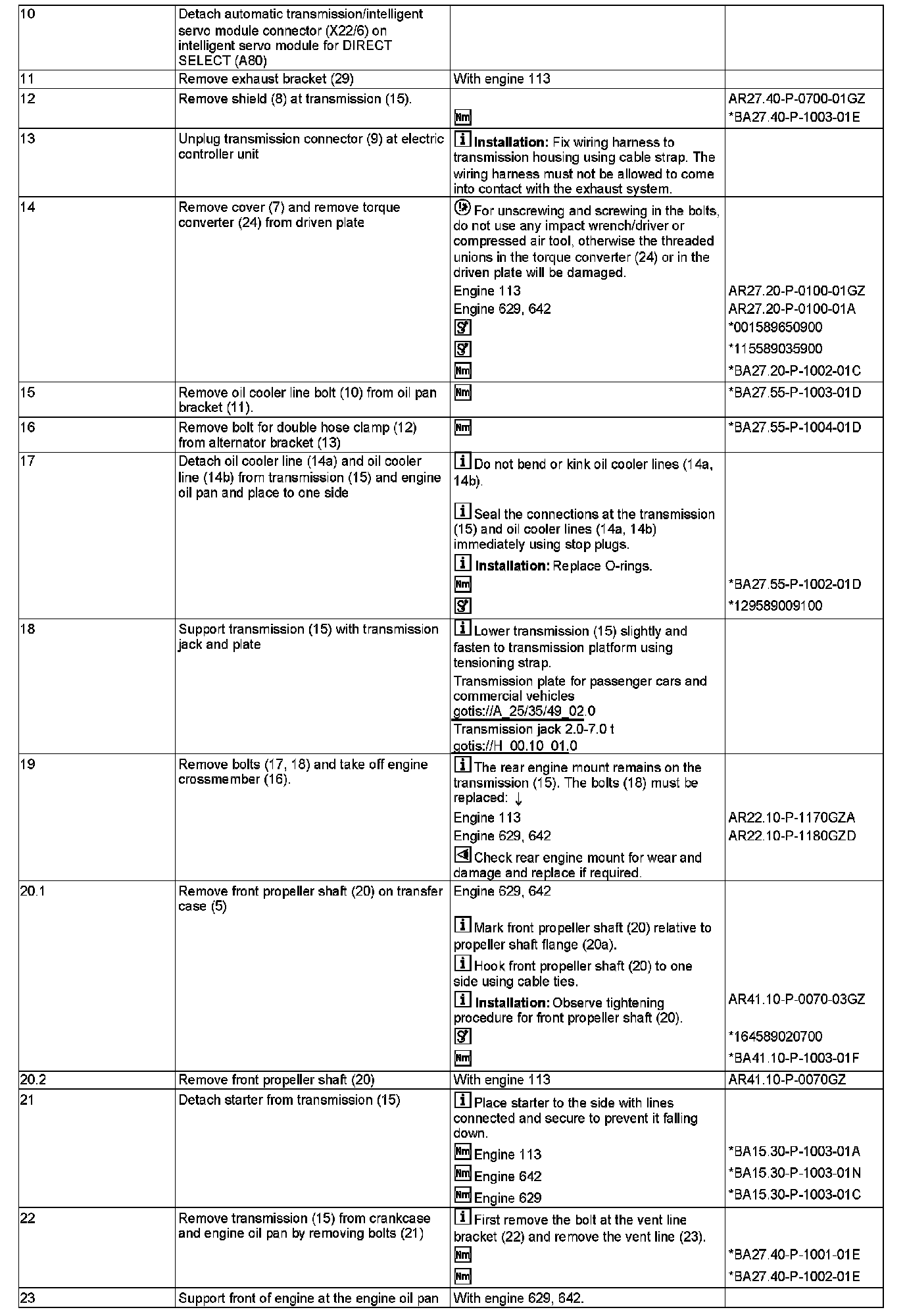

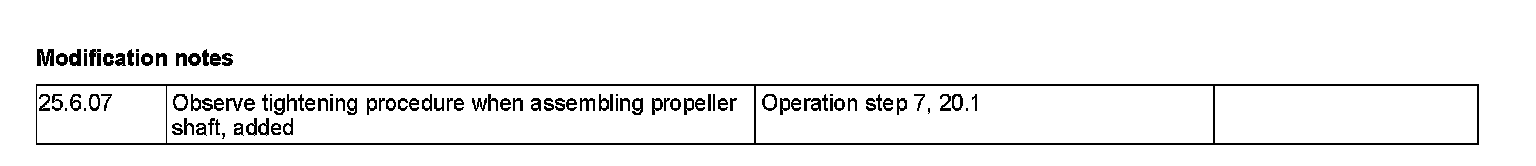

AR27.10-P-0500GZ Remove/Install Transmission With Torque Converter

AR27.10-P-0500GZ Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 164 with ENGINE 113, 642, 629





Shown on model 164.175 with off-road package code 430

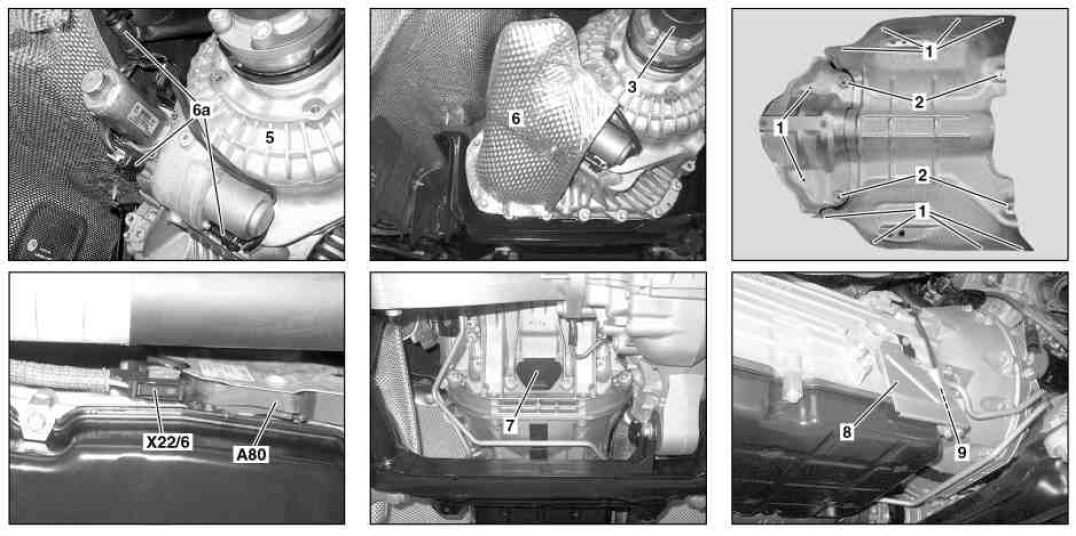

1 Bolts
2 Nuts
3 Propeller shaft
5 Transfer case
6 Heat shield
6a Electrical connectors
7 Cover
8 Shield
9 Transmission connector
A80 Intelligent servo module for DIRECT SELECT
X22/6 Automatic transmission/intelligent servo module connector





Shown on model 164.175 with off-road package code 430

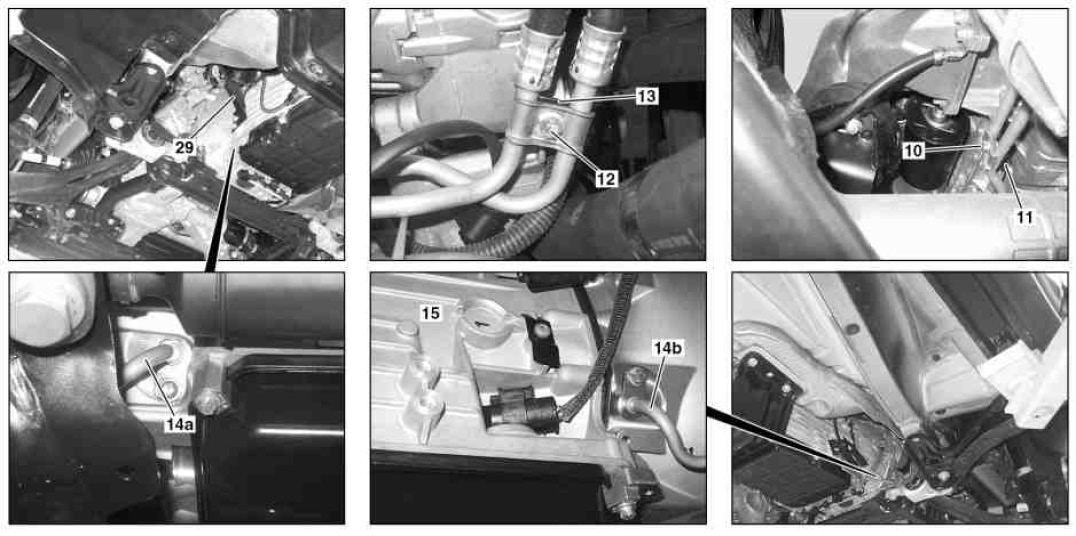

10 Oil cooler line bolt
11 Oil pan bracket
12 Double hose clamp bolt
13 Alternator bracket
14a Oil cooler line
14b Oil cooler line
15 Transmission
29 Exhaust bracket





Shown on model 164.175 with off-road package code 430

5 Transfer case
15 Transmission

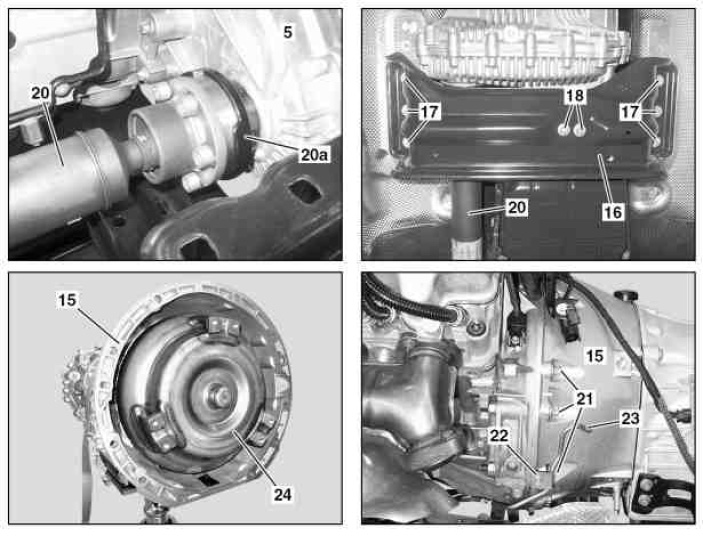

16 Engine crossmember
17 Bolts
18 Bolts
20 Front propeller shaft
20a Propeller shaft flange
21 Bolts
22 Vent line bracket
23 Vent line
24 Torque converter






































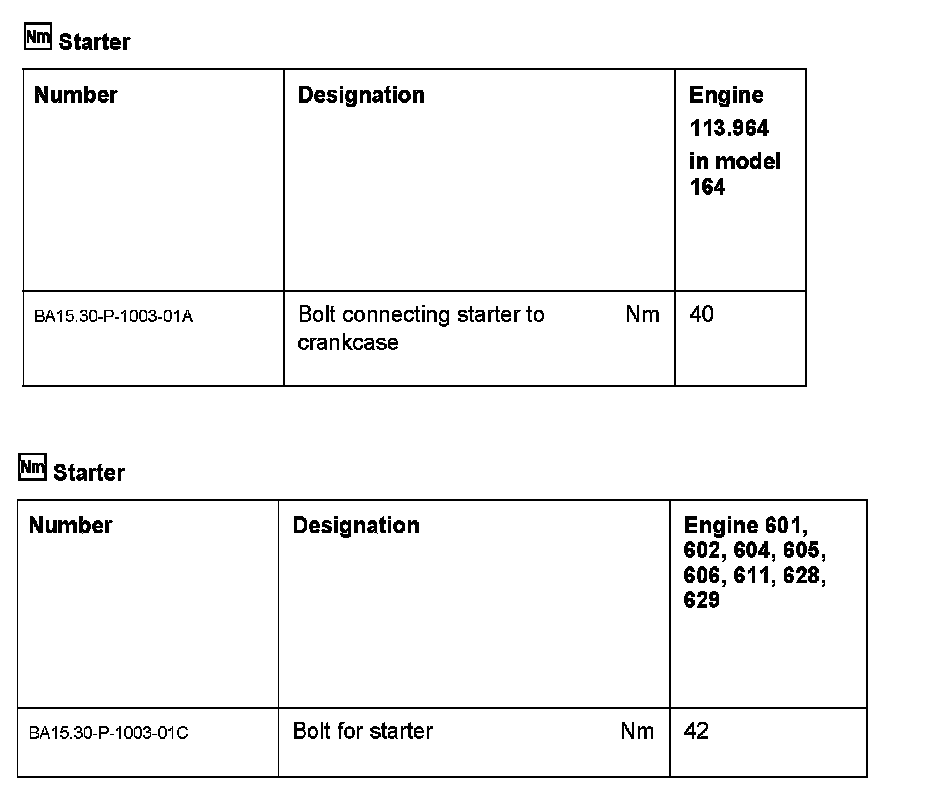

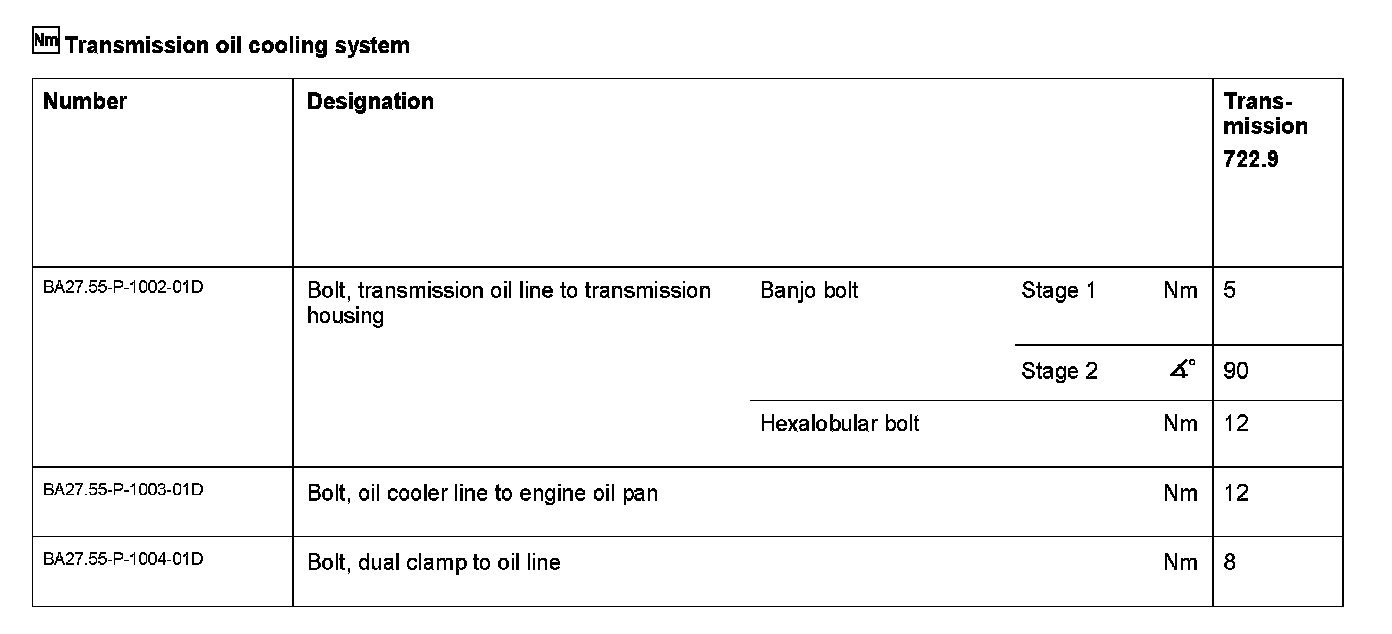

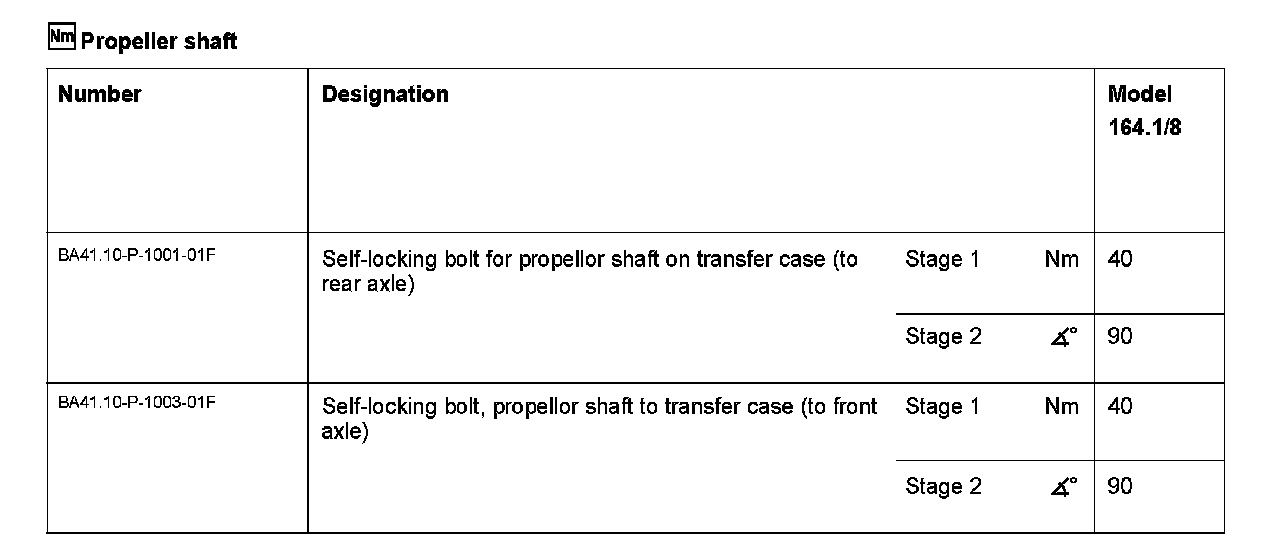

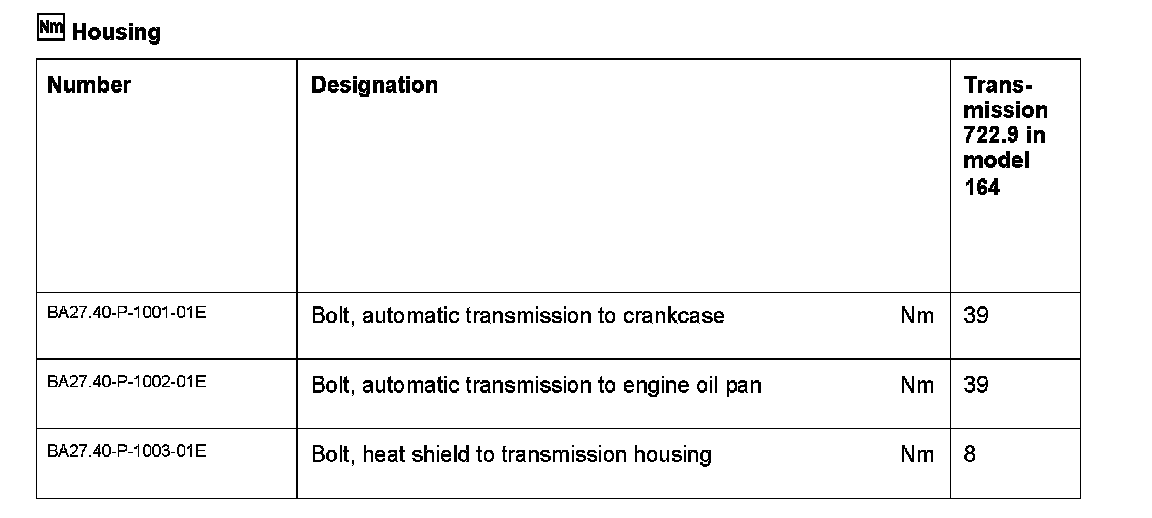

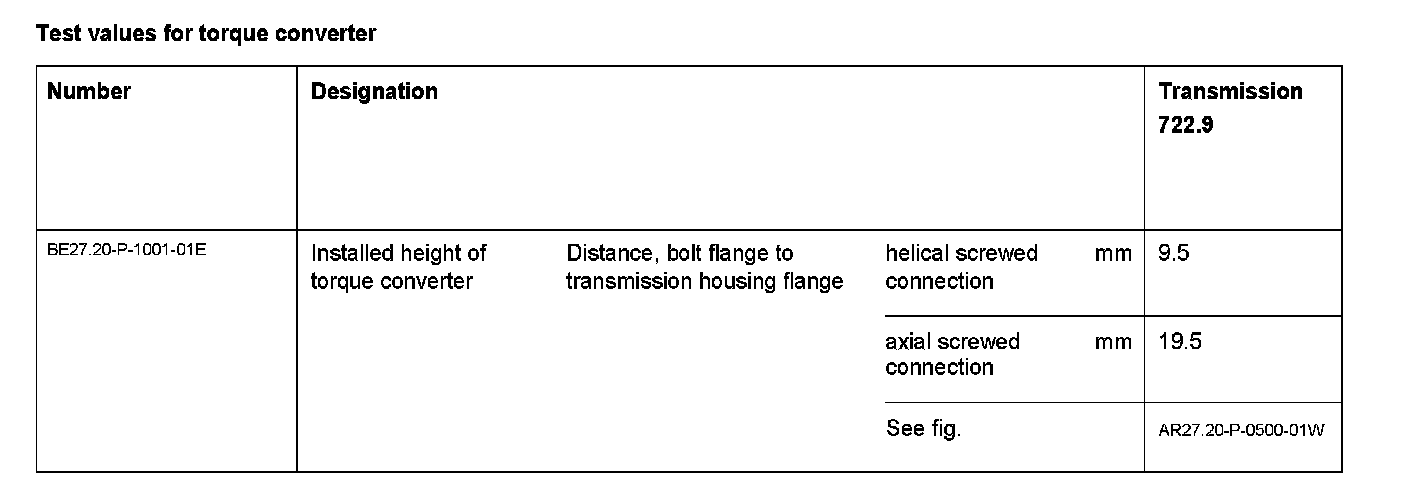

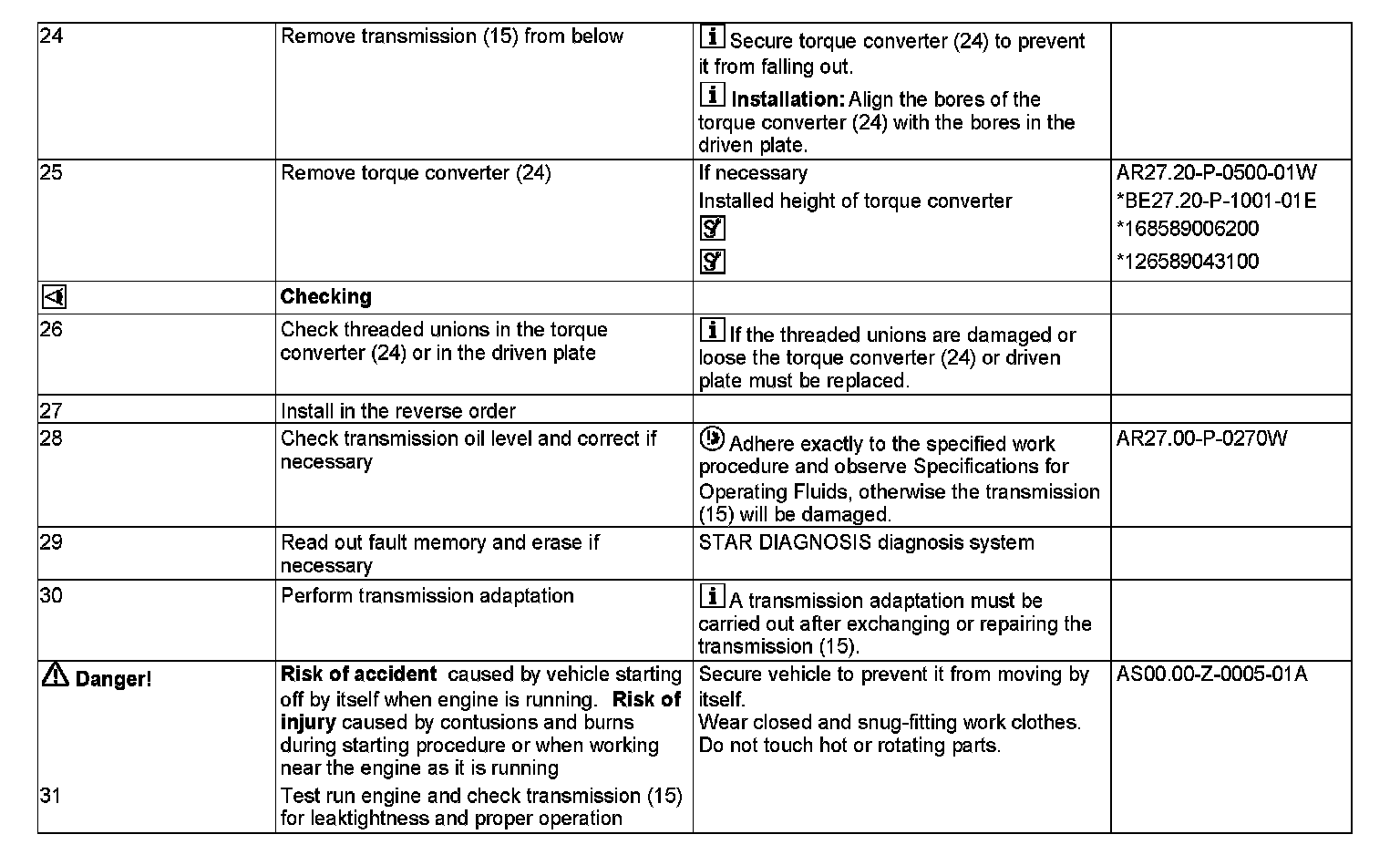

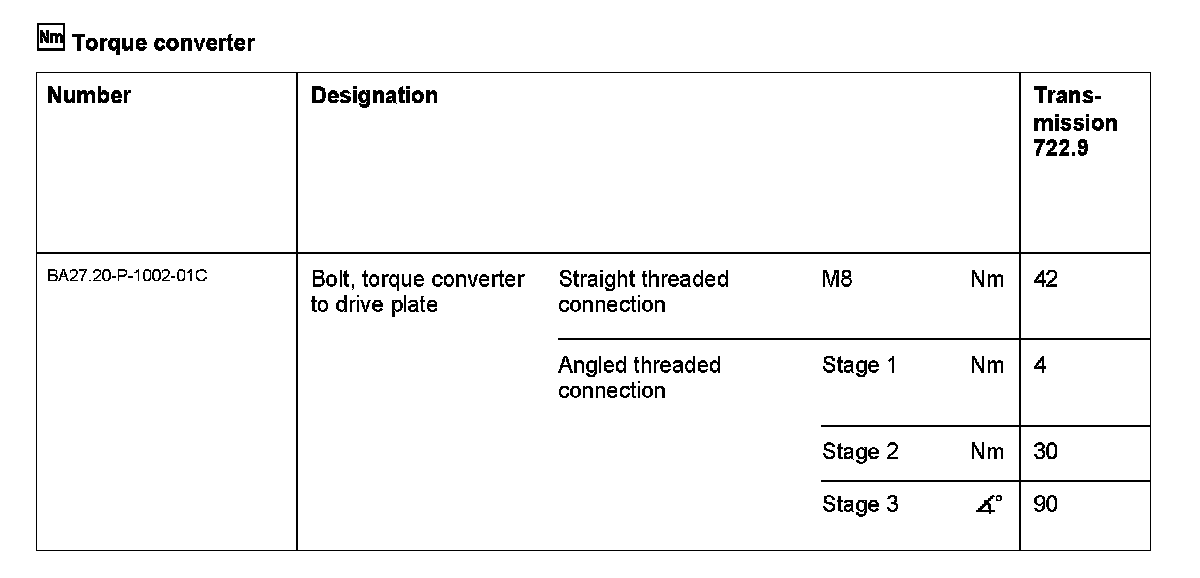

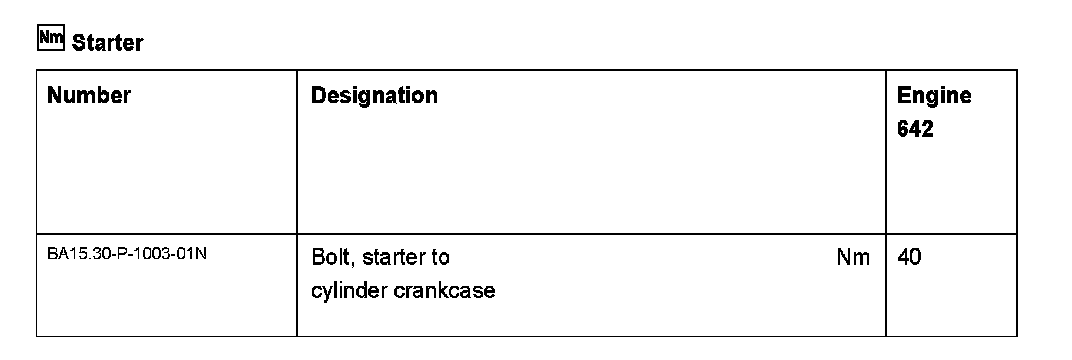

129 589 00 91 00
Set of stop plugs





164 589 02 07 00
Retainer wrench





168 589 00 62 00
Grab handle





126 589 04 31 00
Parallel support





001 589 65 09 00
Wrench socket





115 589 03 59 00
Long wedge
