AR54.15-P-1261GZ Remove Fuse and Relay Box In Rear
AR54.15-P-1261GZ Remove Fuse and Relay Box In Rear
AR54.15-P-1261GZ Remove Fuse And Relay Box In Rear

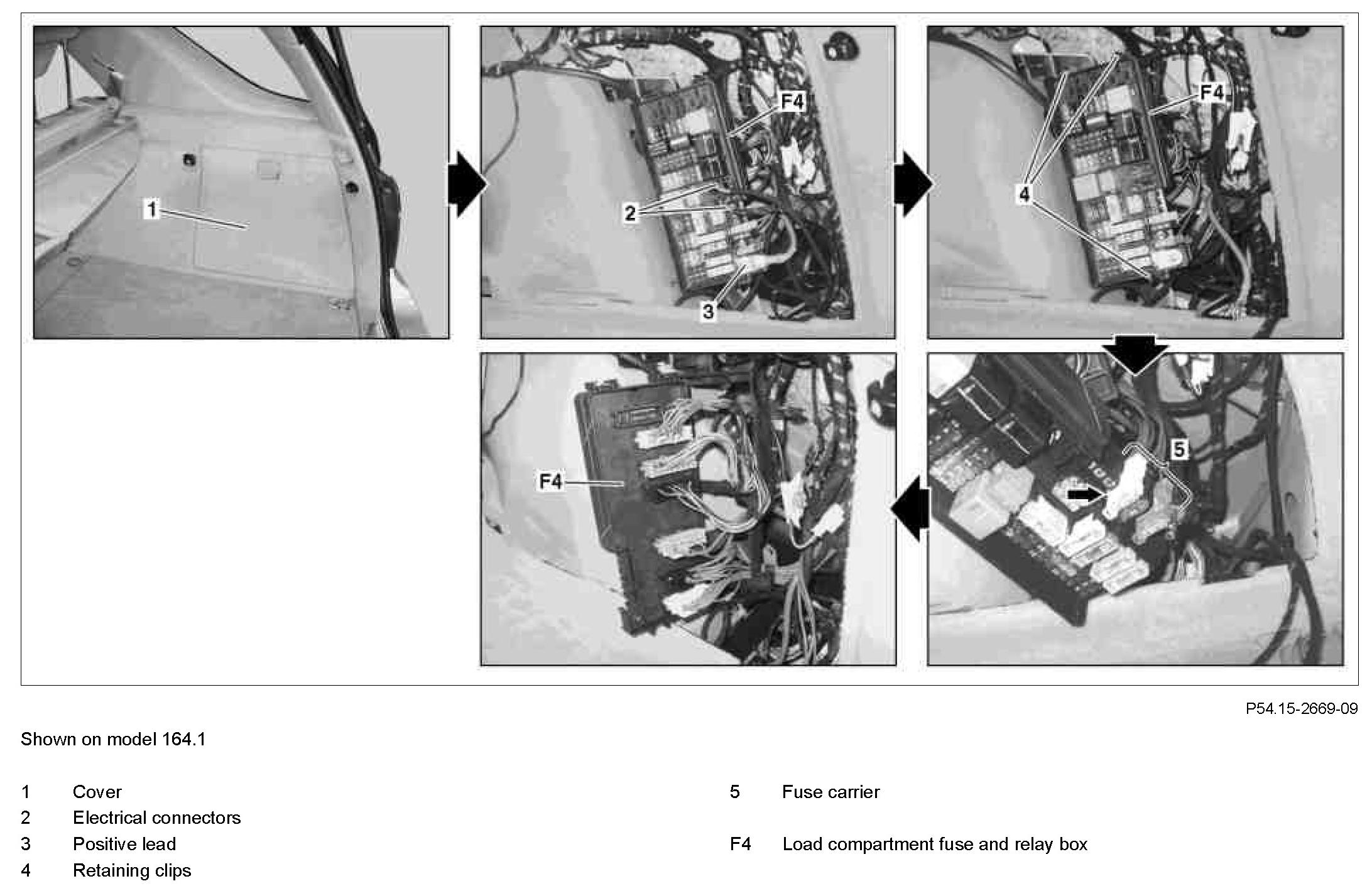

Component Identification:

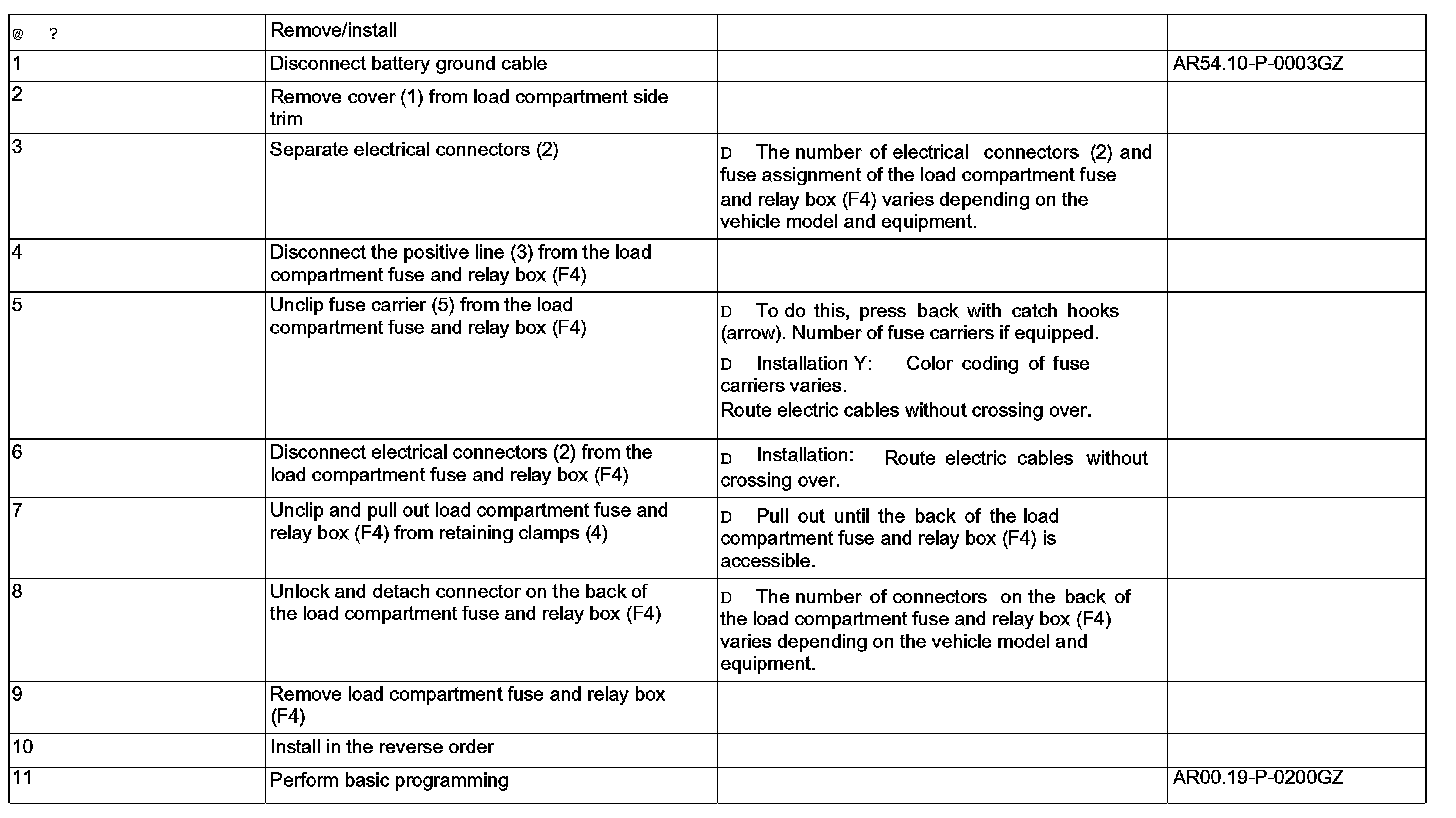

Steps 1 - 11:
