Relay Location and Identification

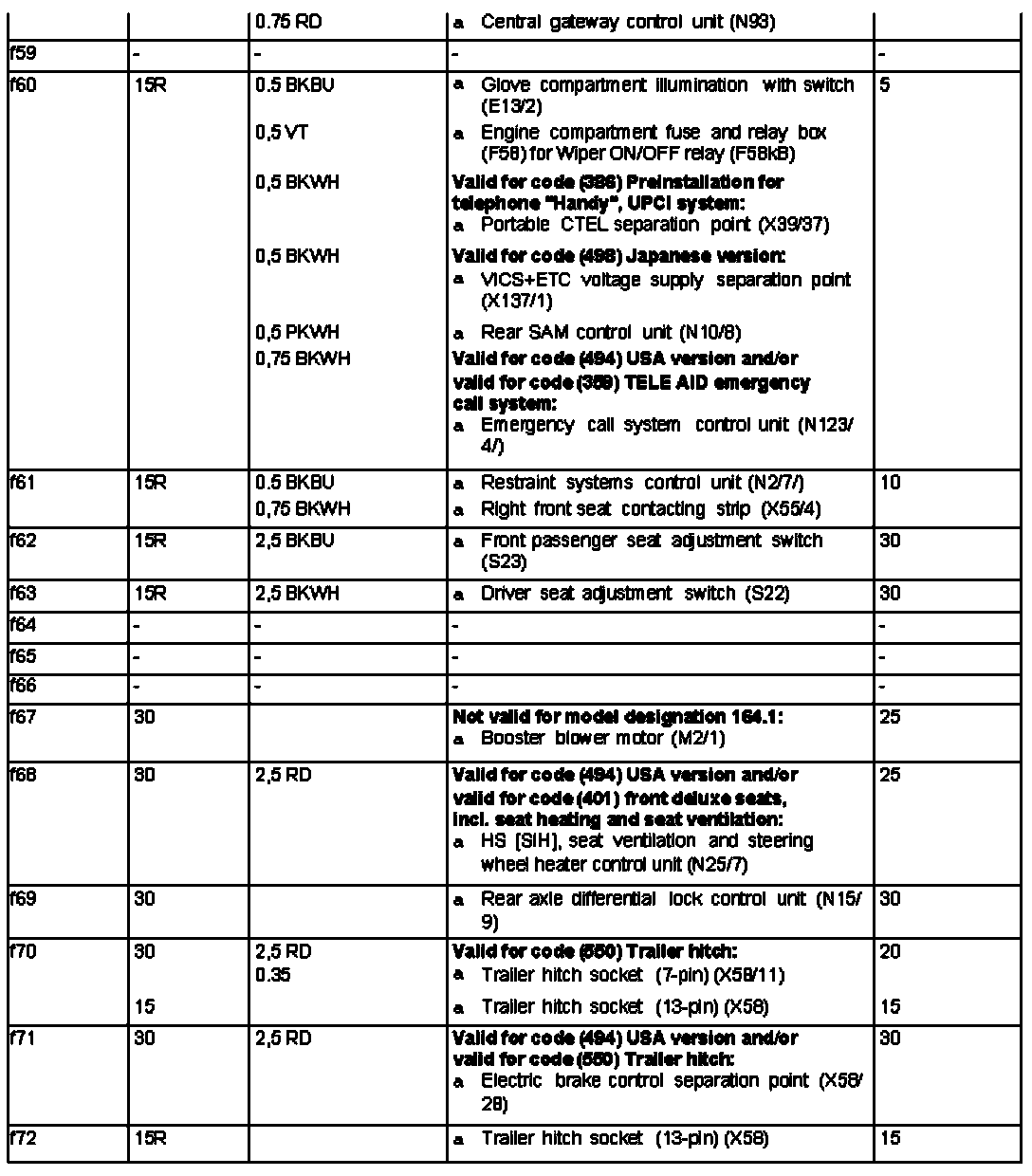

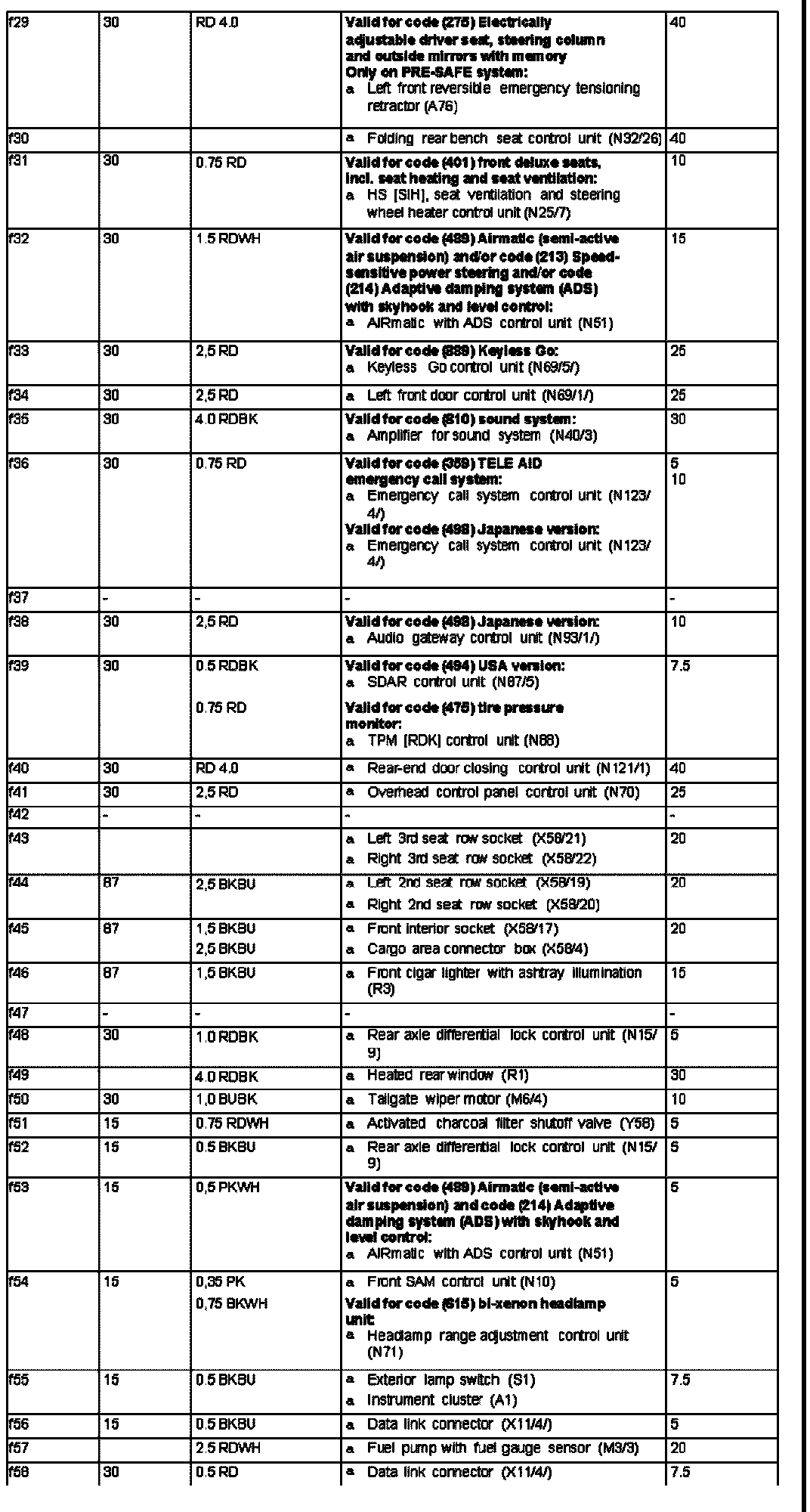

Fuse Assignment

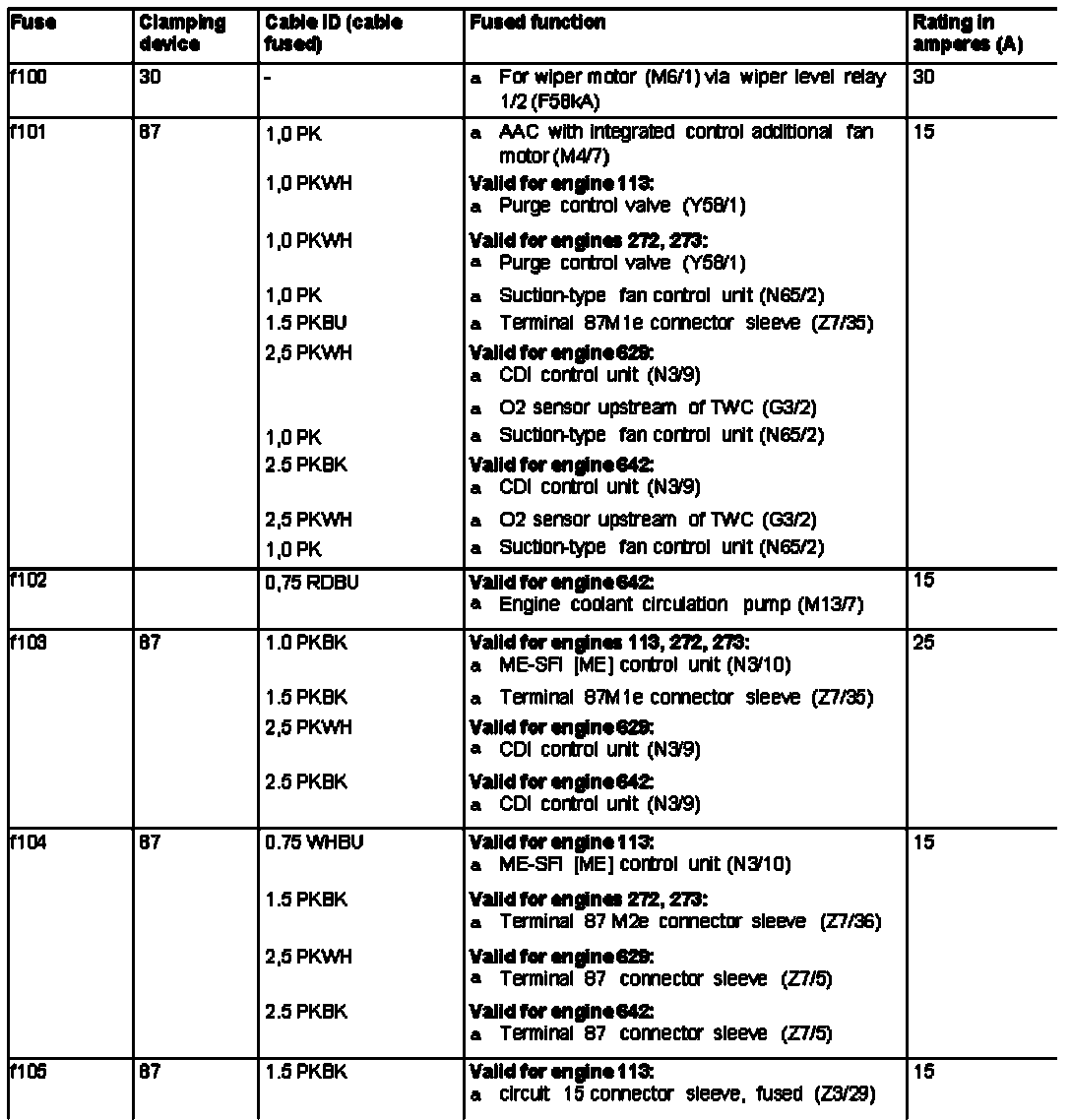

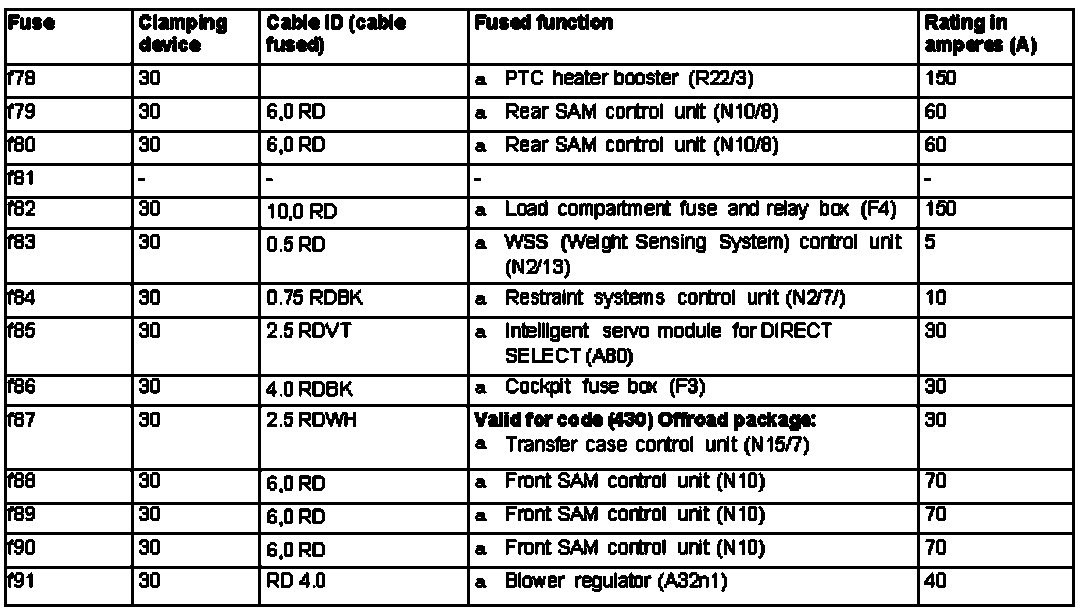

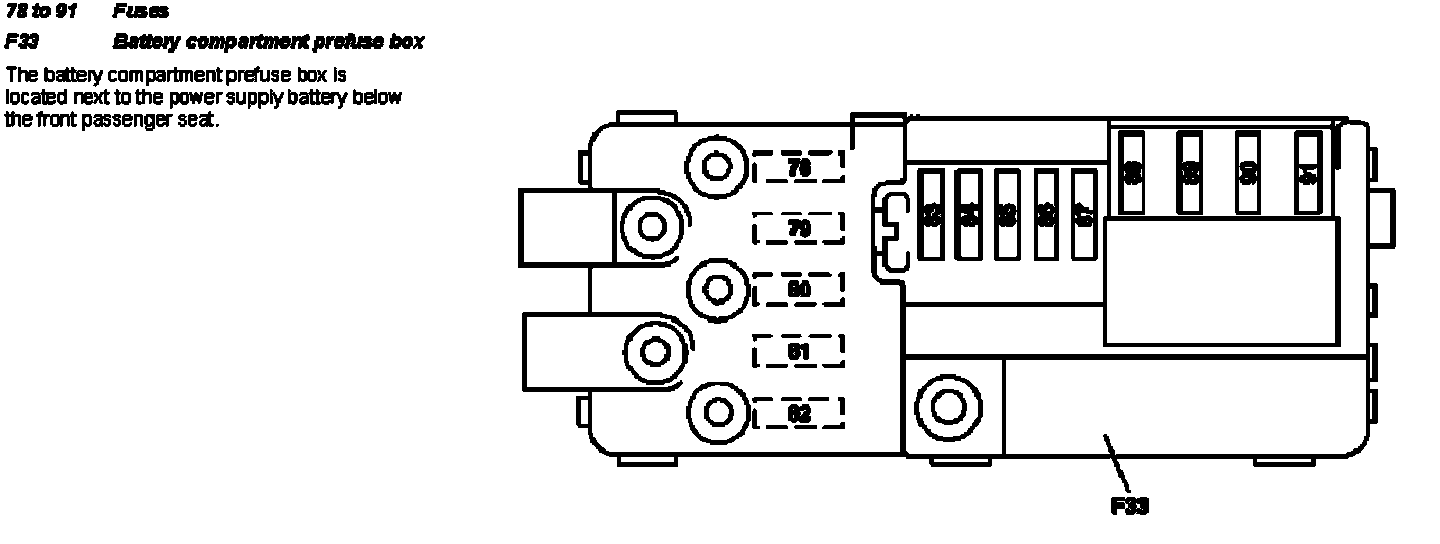

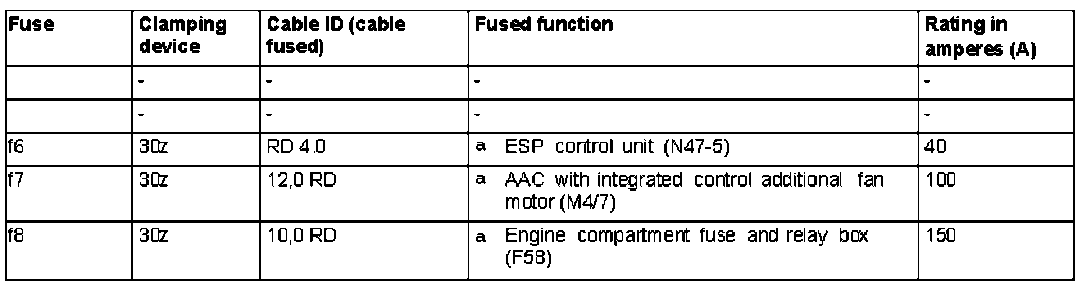

Fuse assignment of battery compartment prefuse box

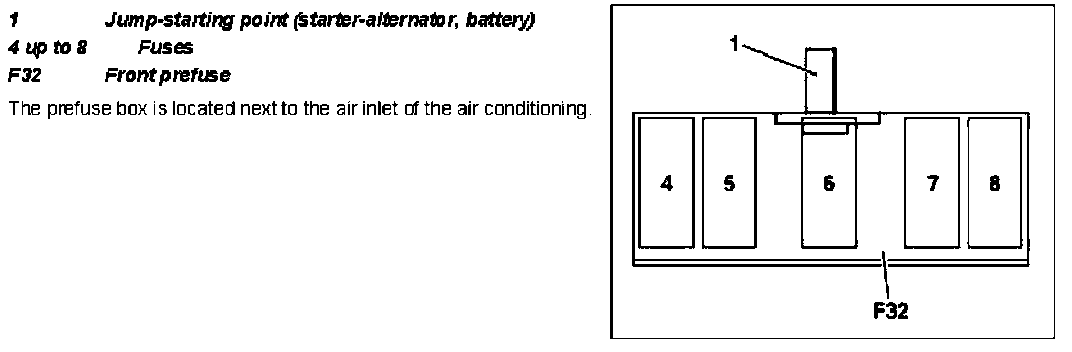

Fuse assignment of front prefuse box

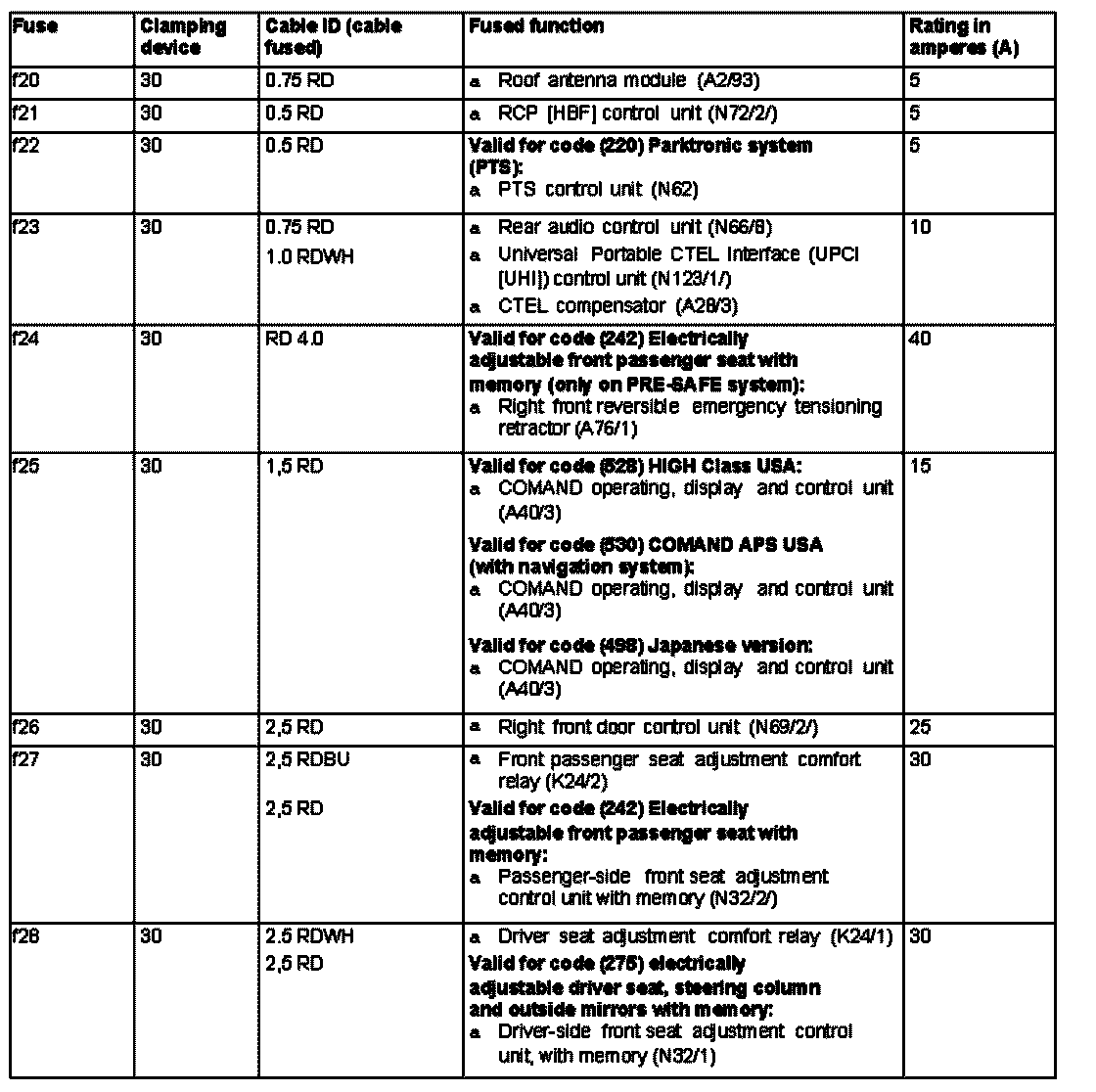

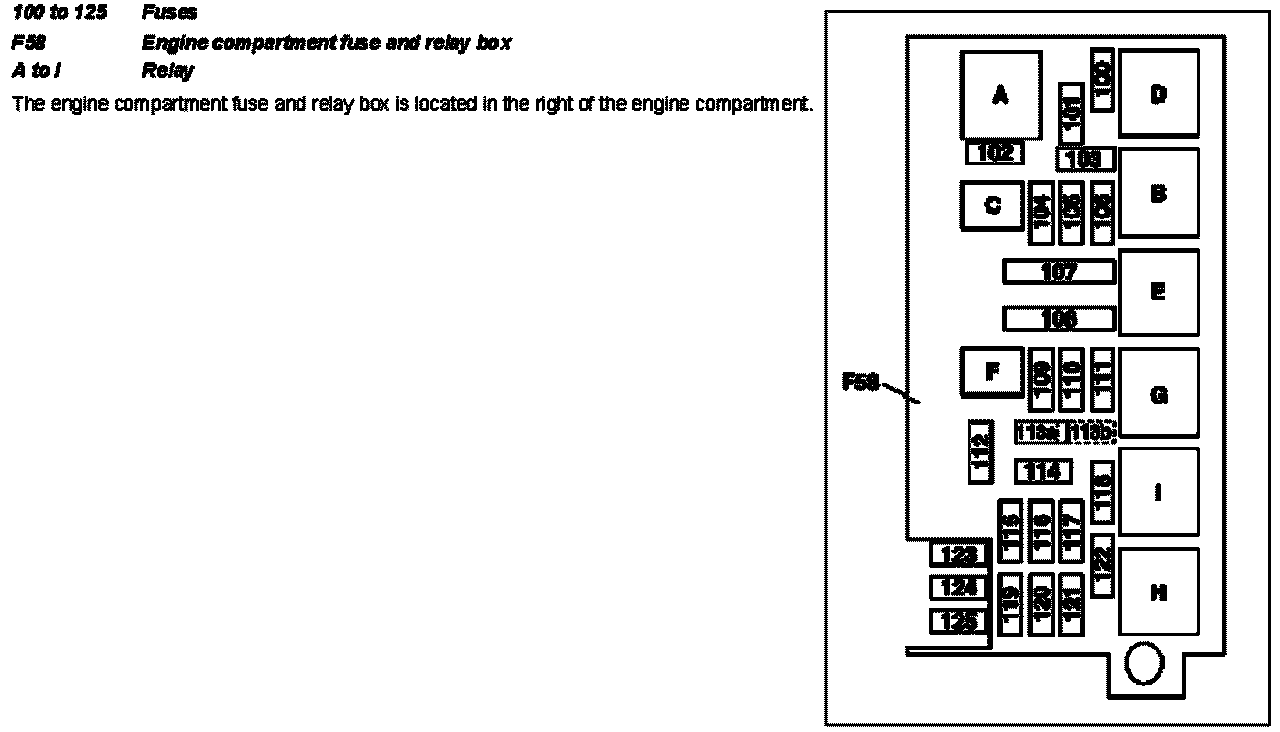

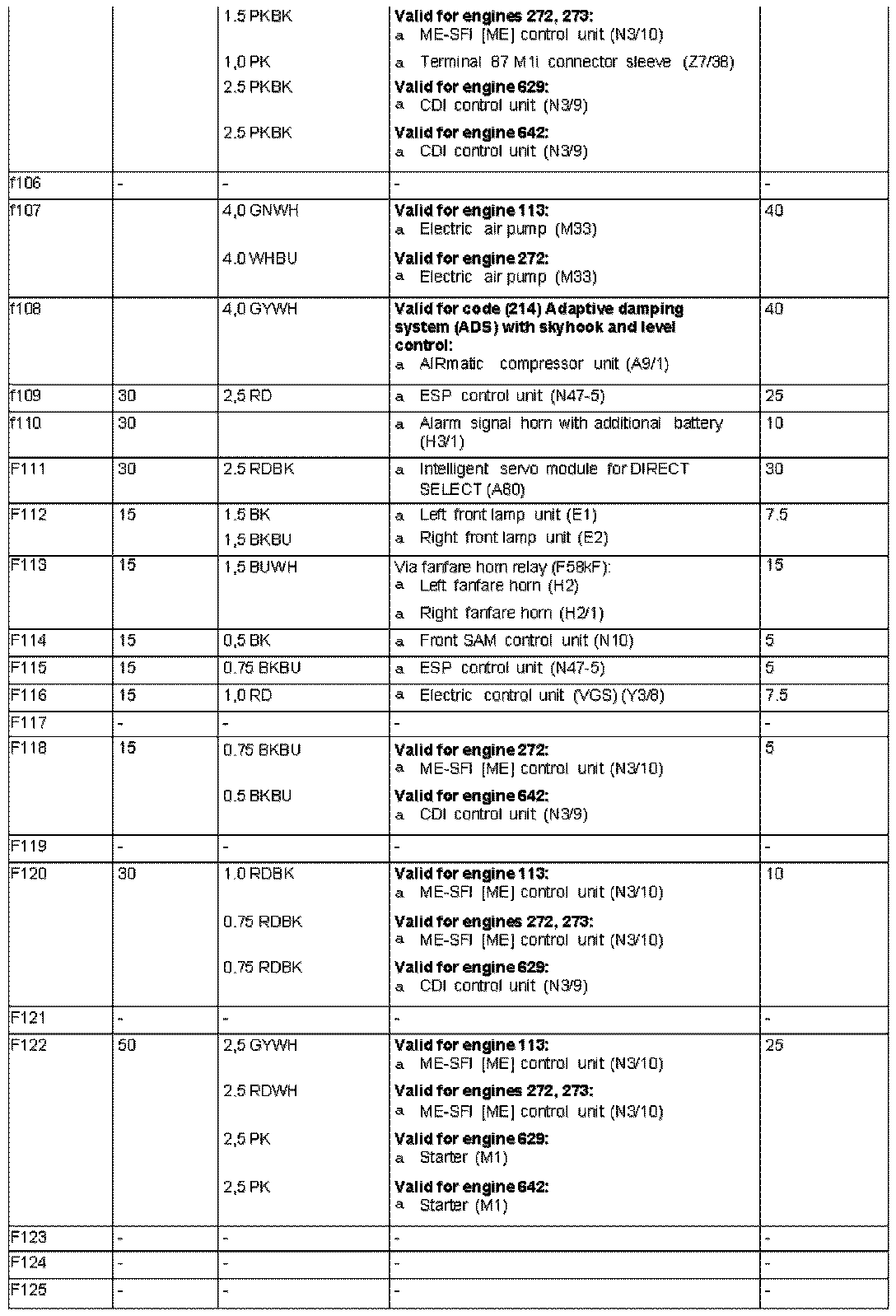

Fuse assignment of fuse and relay box in right engine compartment

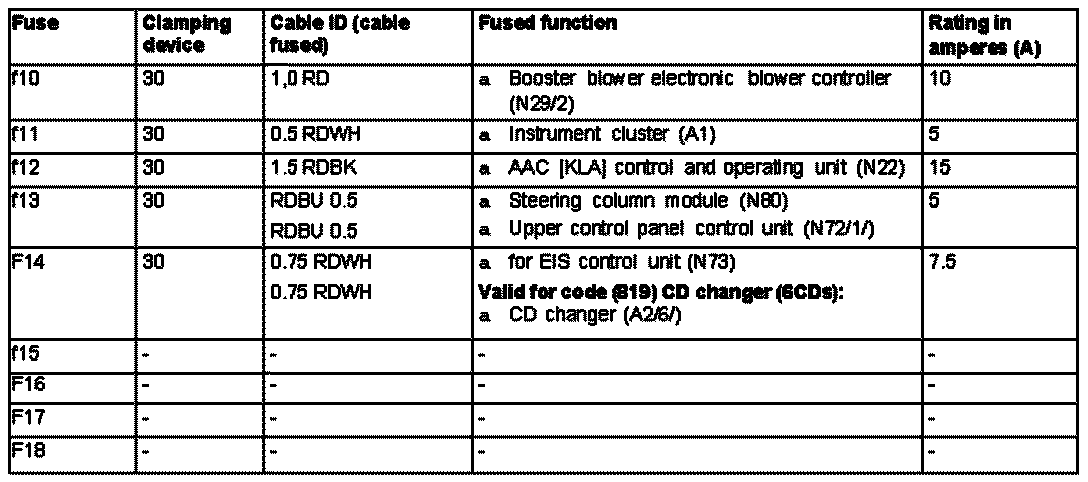

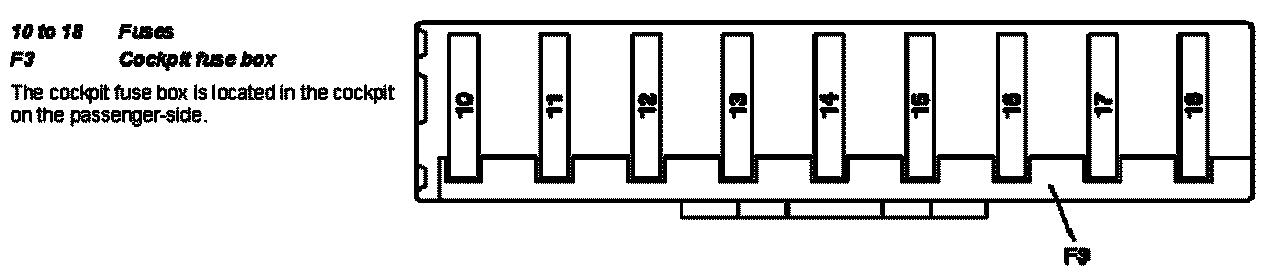

Fuse assignment of fuse box in cockpit

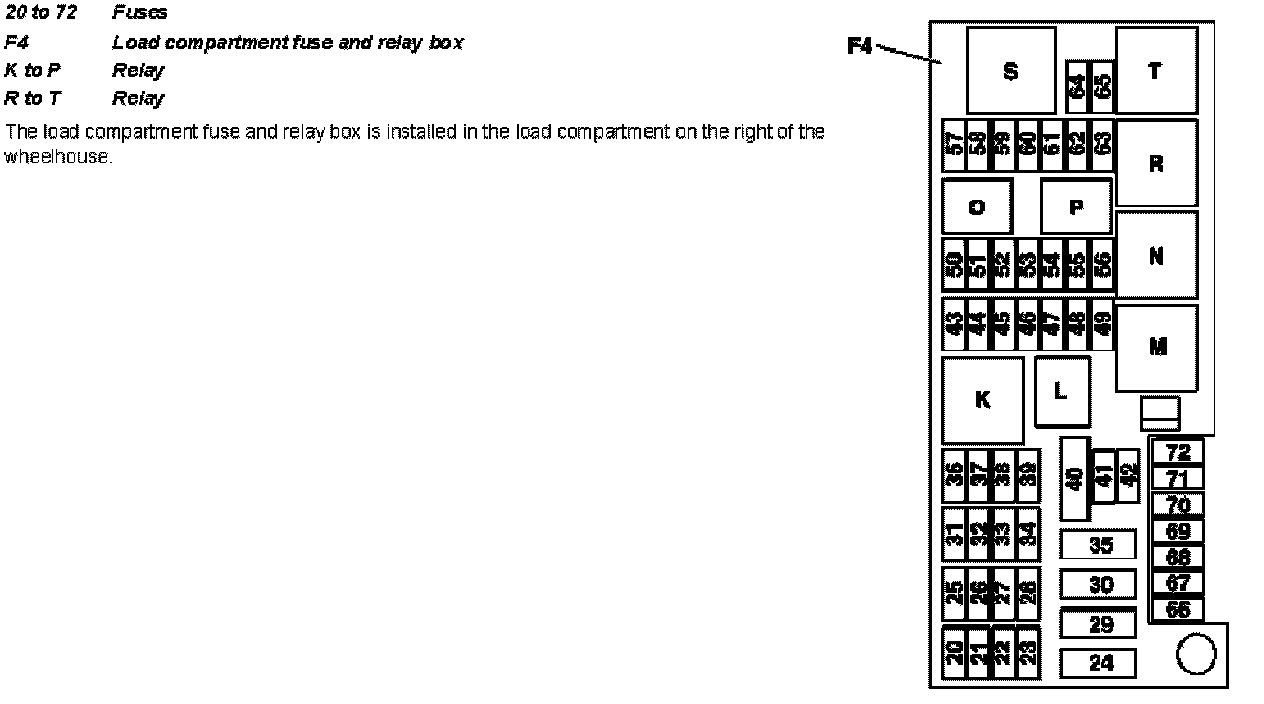

Fuse assignment of load compartment fuse and relay box

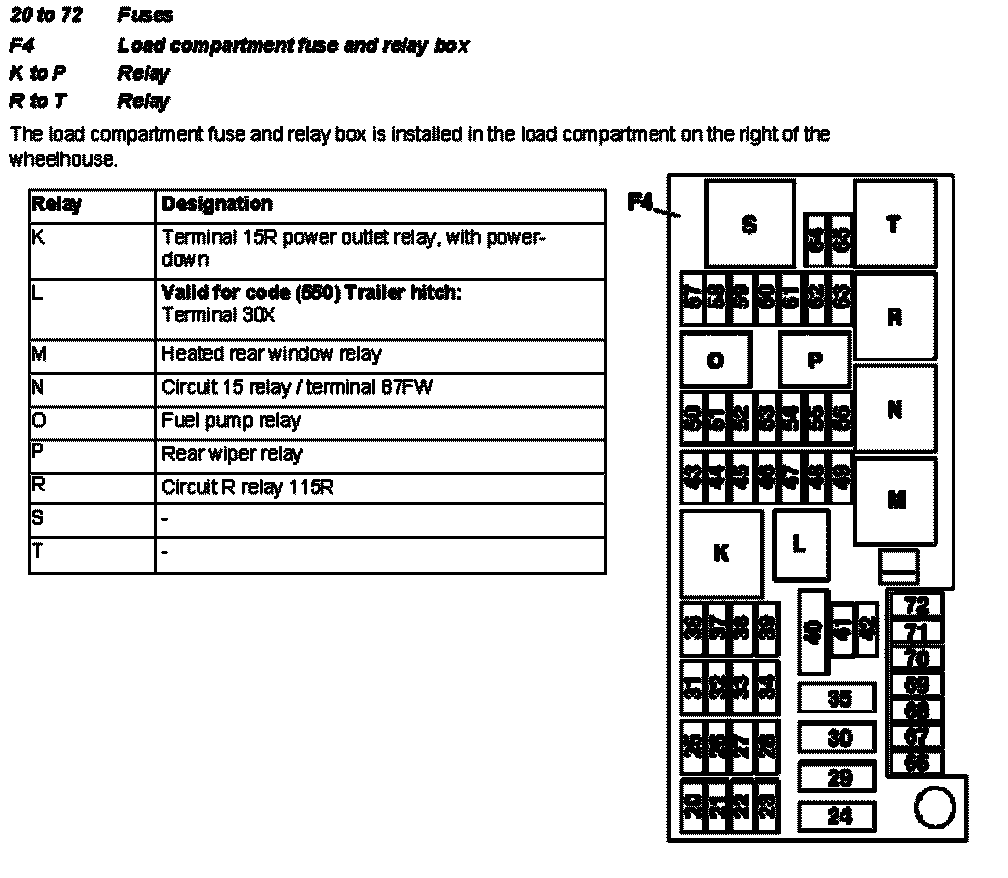

Relay assignment of the load compartment fuse and relay box





Relay assignment of fuse and relay box in right engine compartment
