Home >> Mercedes Benz Truck >> 2007 >> ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Description and Operation >> GF54.15-P-1257-08GZ Relay Assignment of the Load Compartment Fuse and Relay Box

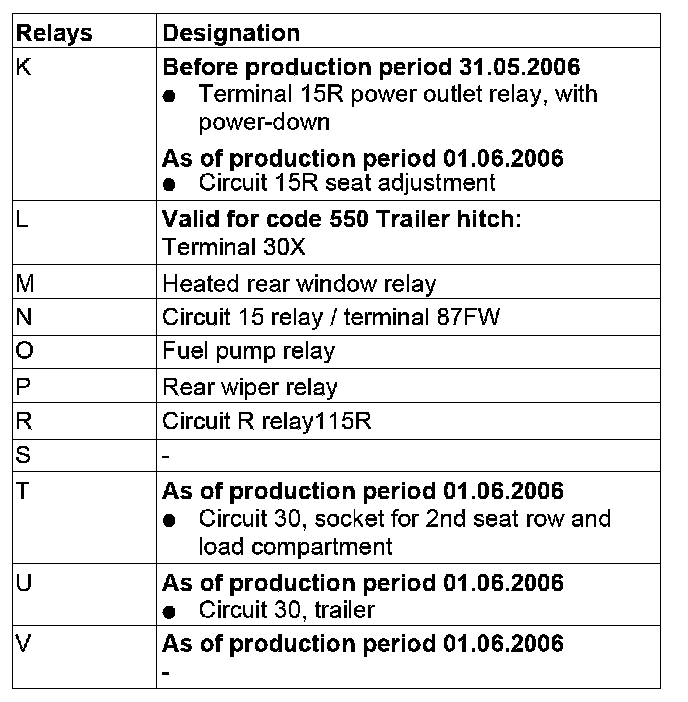

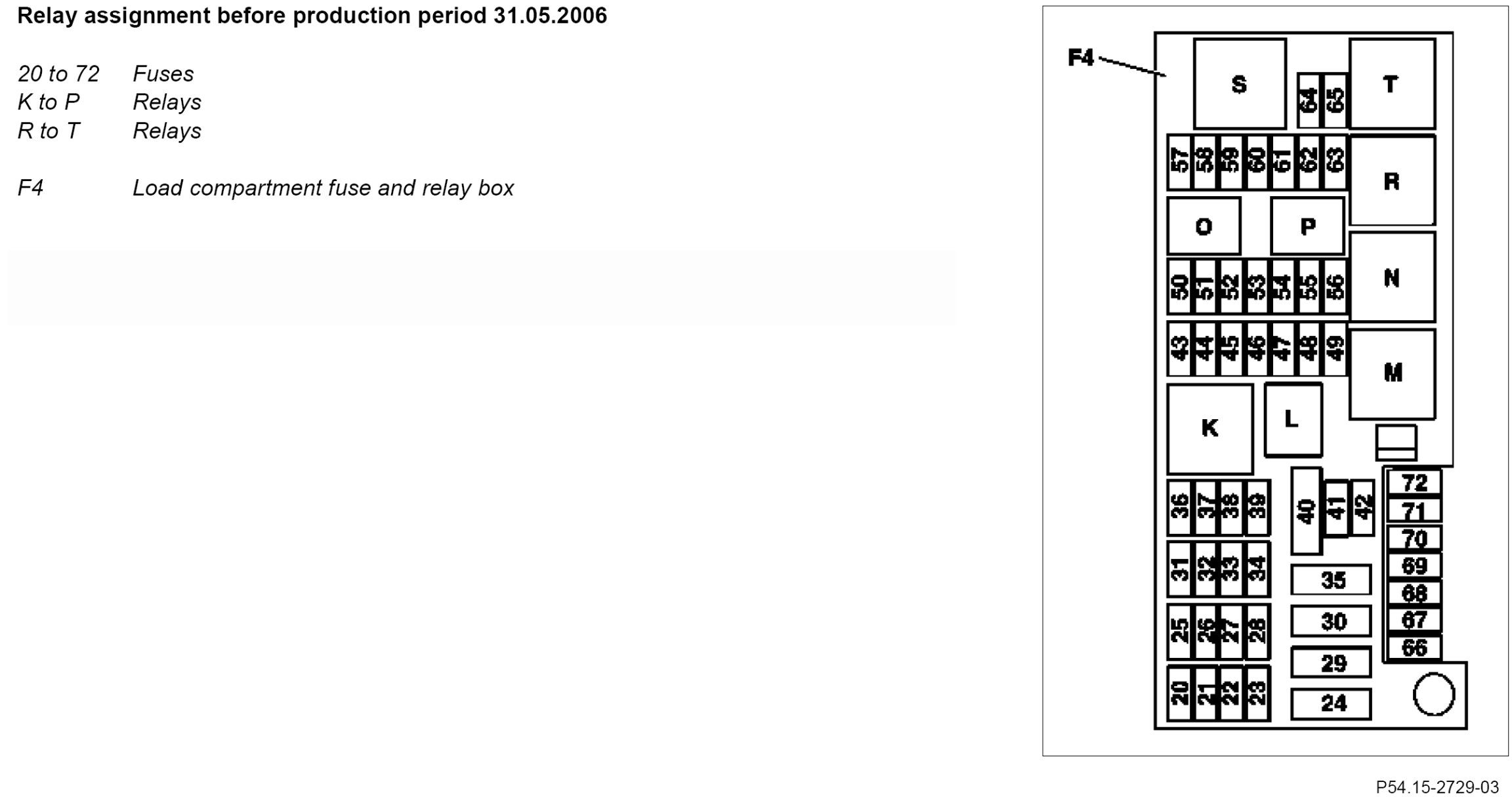

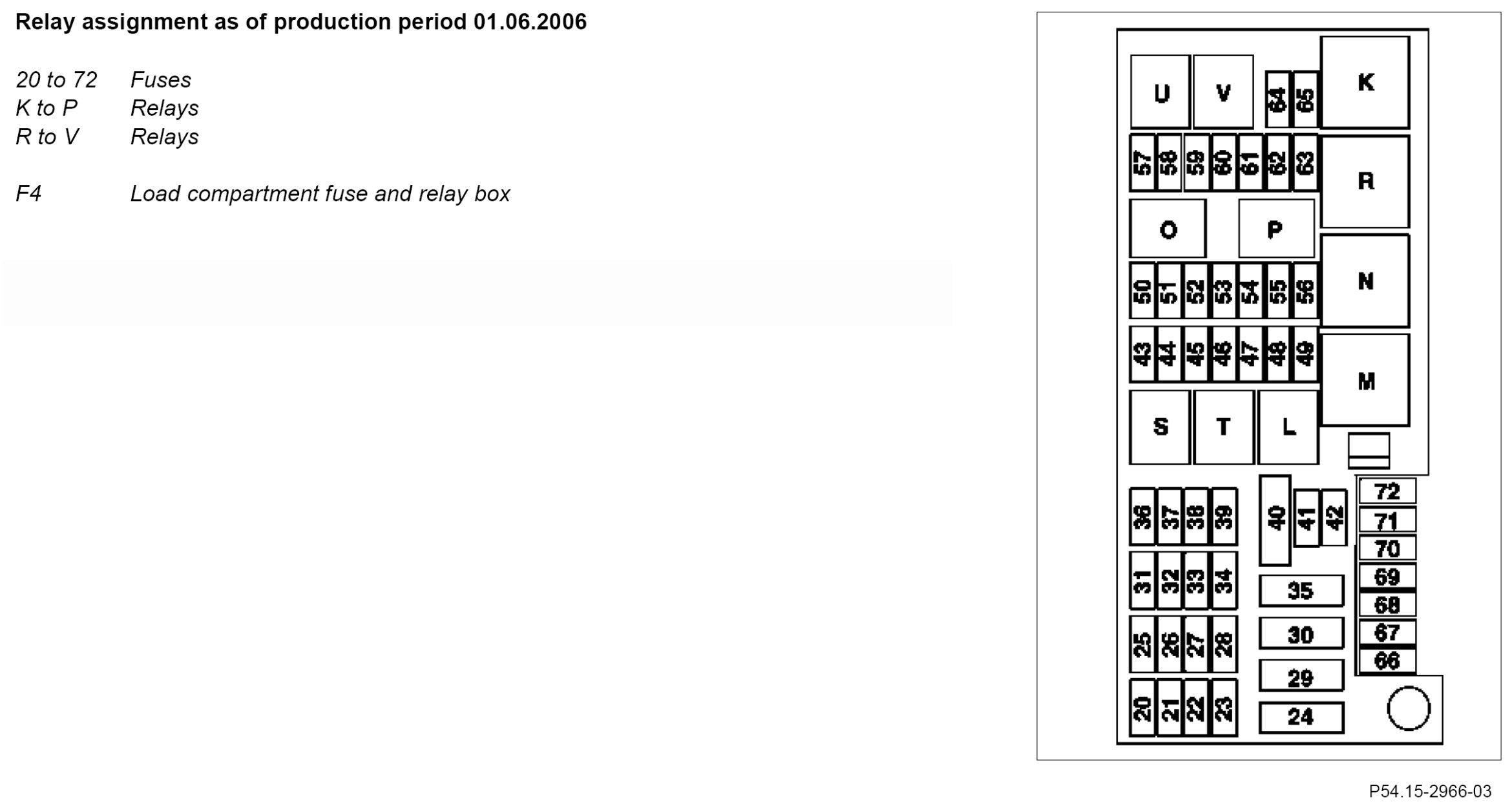

GF54.15-P-1257-08GZ Relay Assignment of the Load Compartment Fuse and Relay Box



GF54.15-P-1257-08GZ Relay Assignment Of The Load Compartment Fuse And Relay Box
- up to model year 08

Component Identification:






The load compartment fuse and relay box is installed in the load compartment on the right of the wheelhouse.


Component Identification:






The load compartment fuse and relay box is installed in the load compartment on the right of the wheelhouse.
