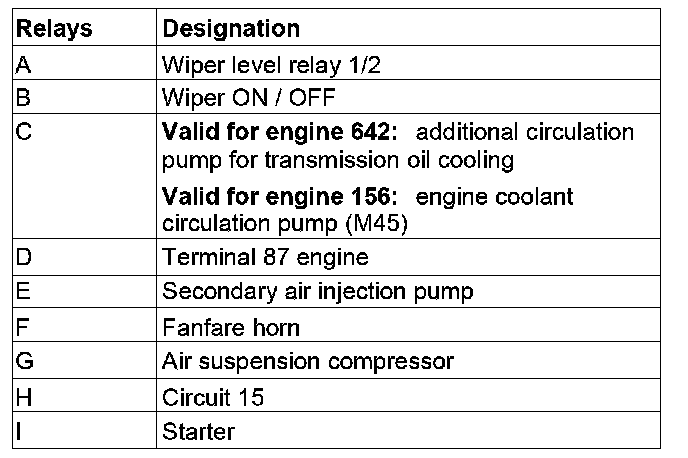

GF54.15-P-1257-02GZ Relay Assignment of Fuse and Relay Box In Right Engine Compartment

GF54.15-P-1257-02GZ Relay Assignment Of Fuse And Relay Box In Right Engine Compartment
- up to model year 08

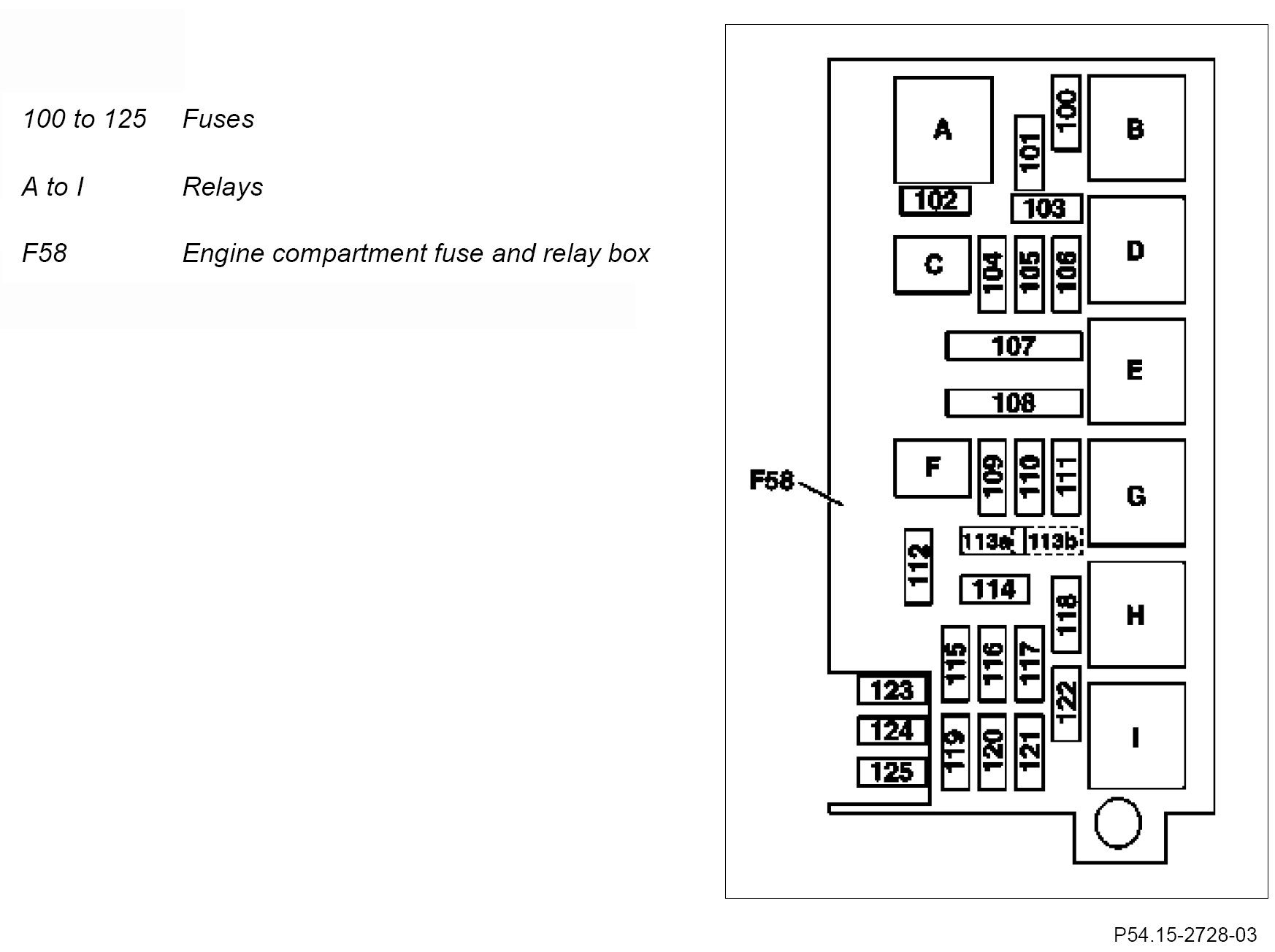

Component Identification:

The engine compartment fuse and relay box is located in the right of the engine compartment.
