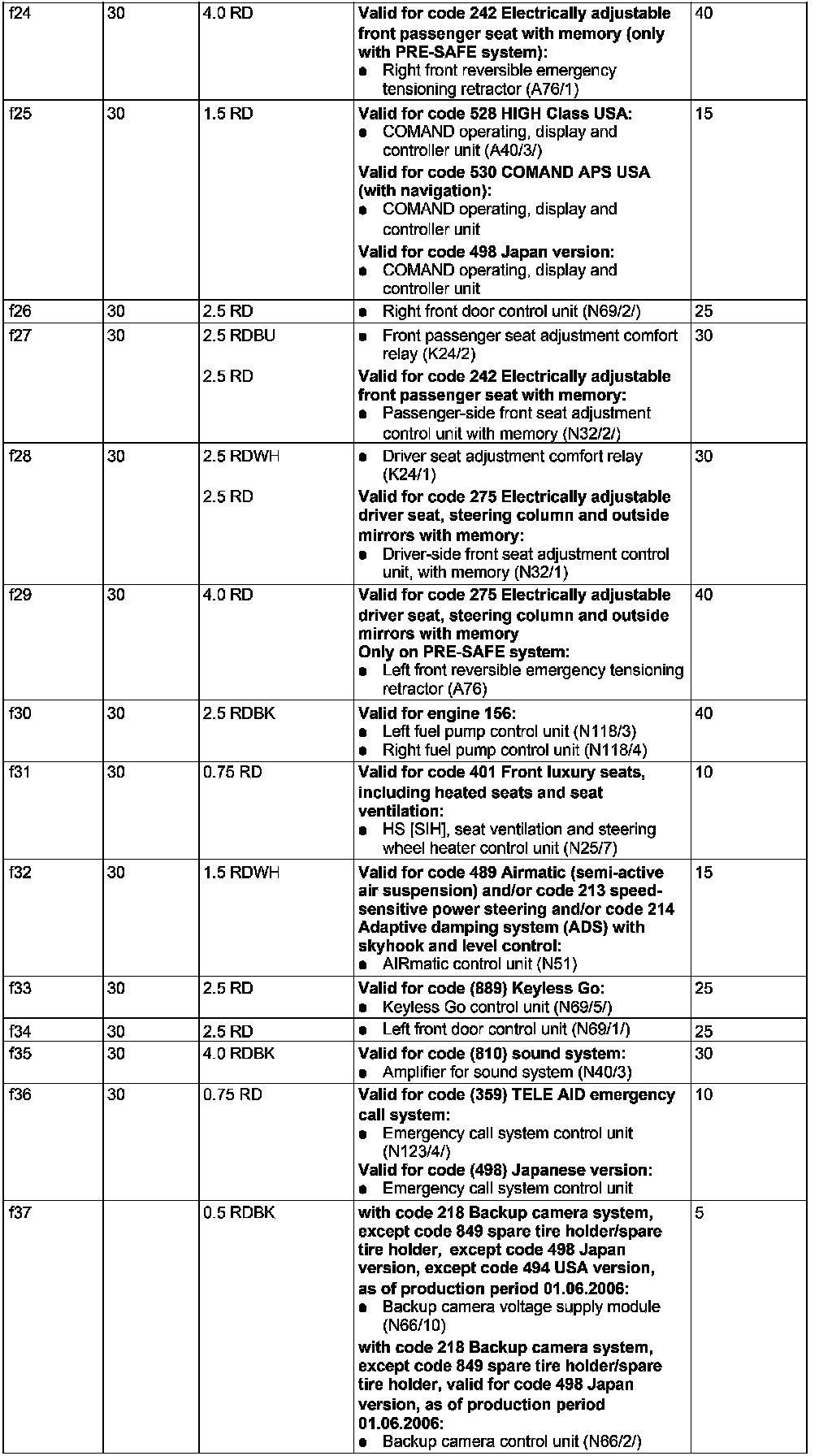

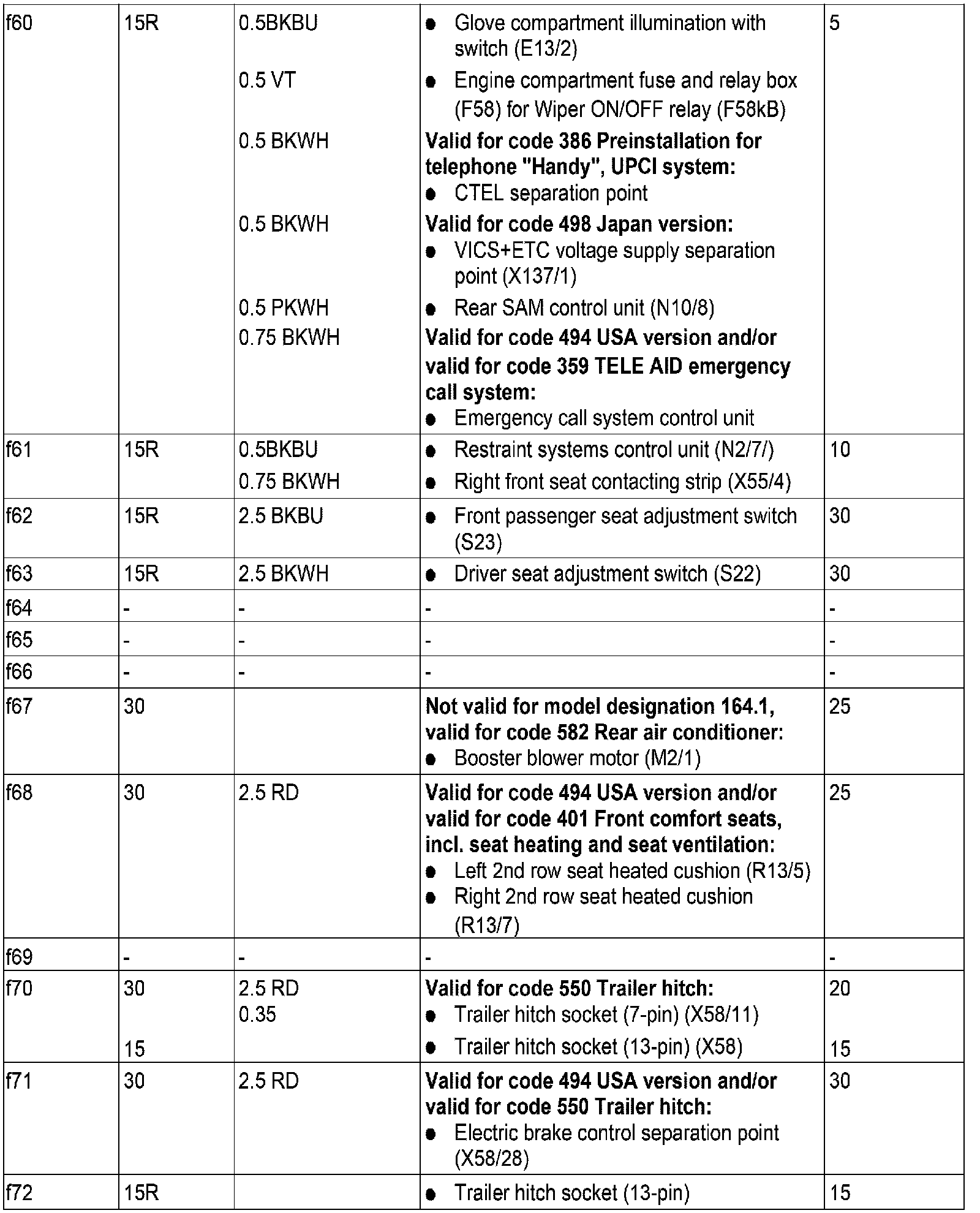

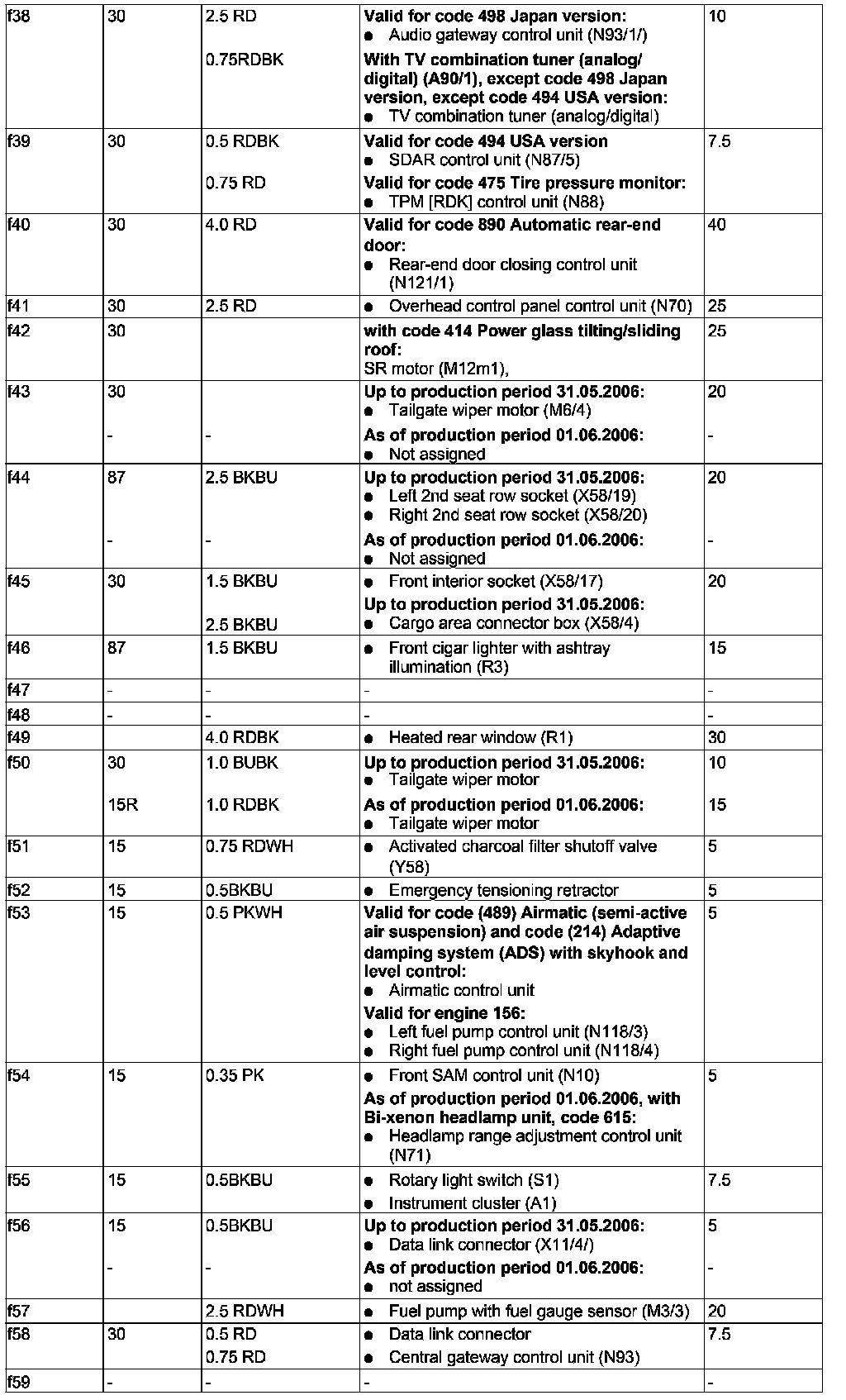

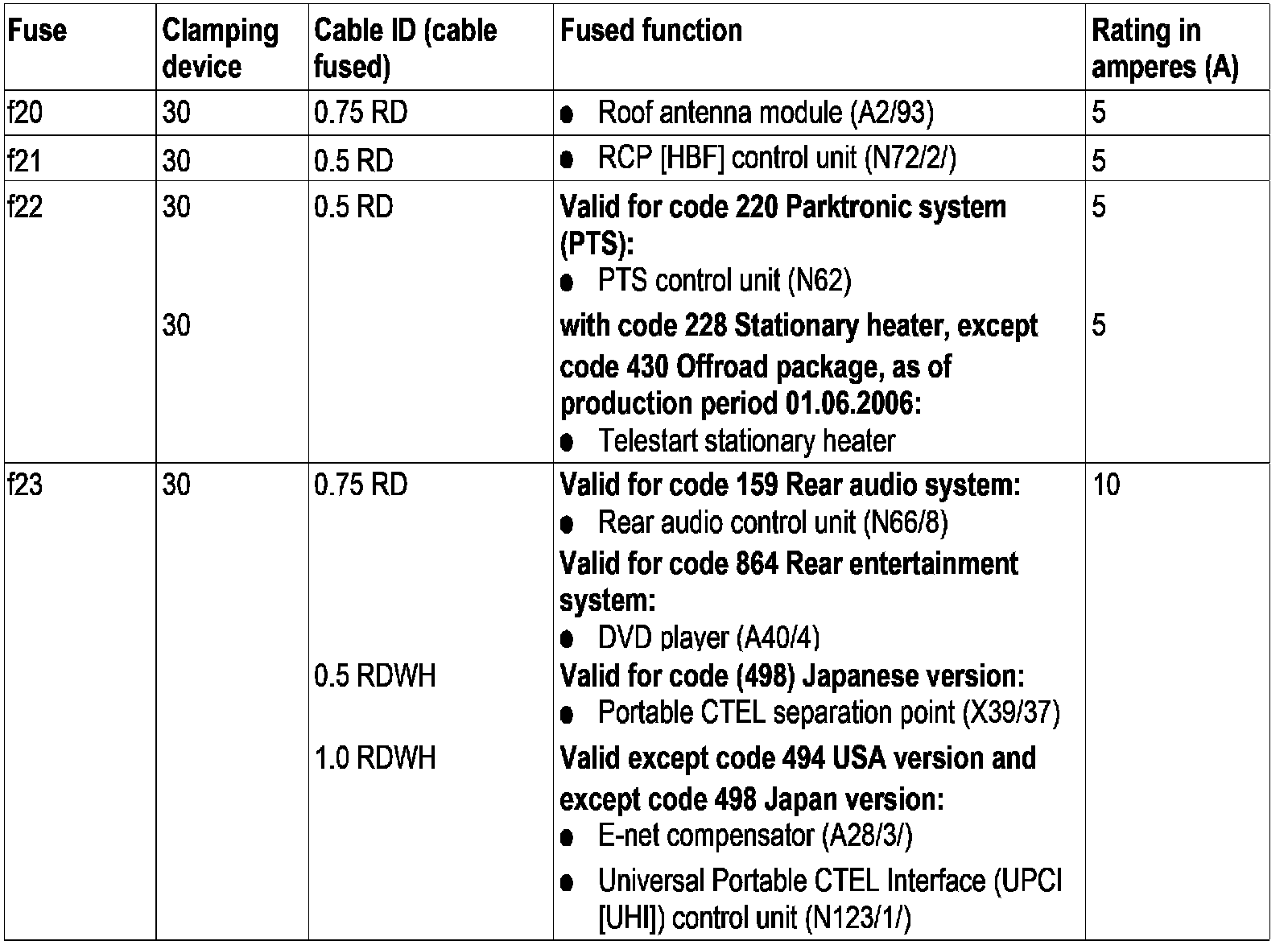

GF54.15-P-1256-14GZ Fuse Assignment of Load Compartment Fuse and Relay Box



GF54.15-P-1256-14GZ Fuse Assignment Of Load Compartment Fuse And Relay Box
- up to model year 08

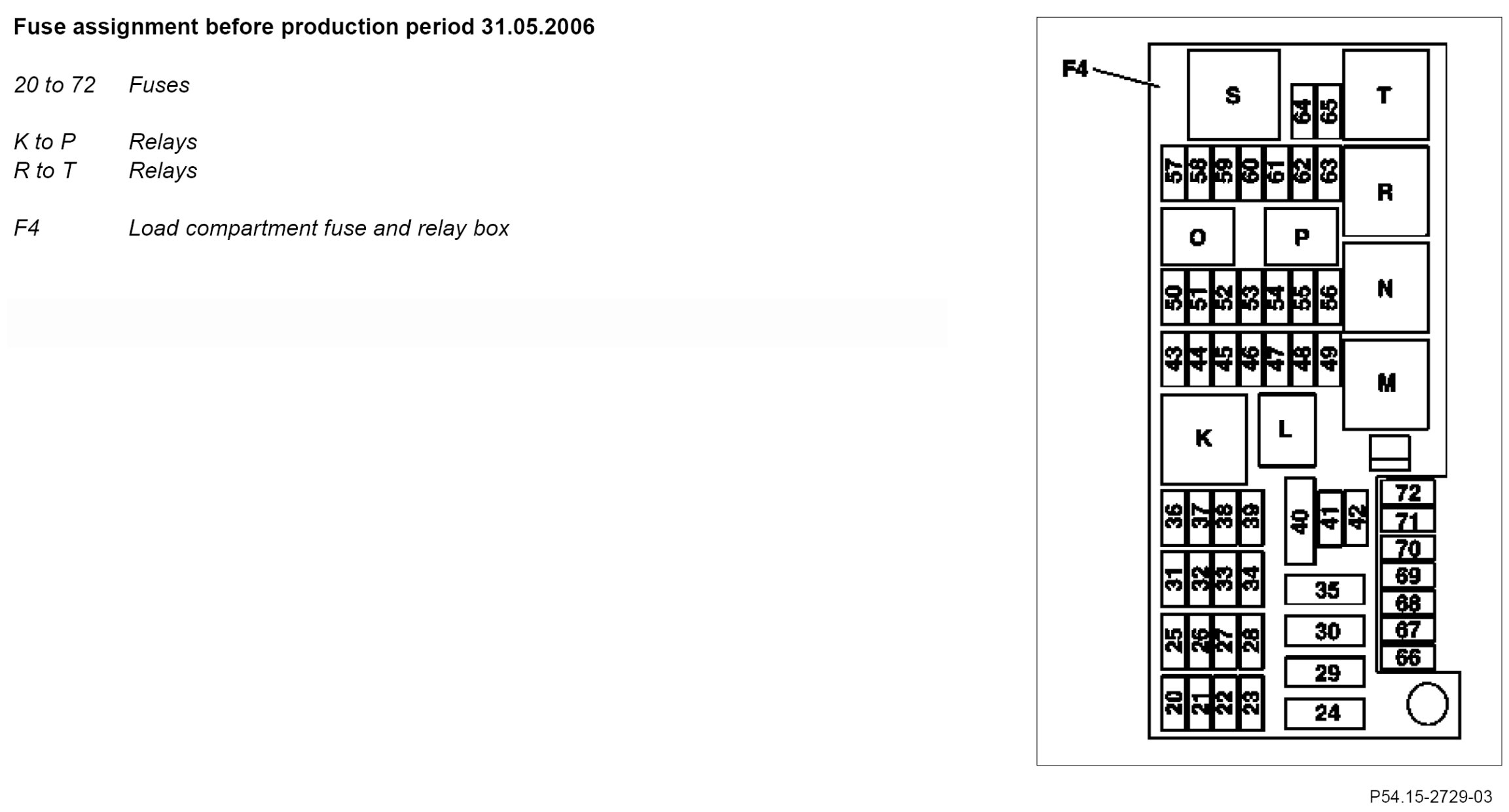

Component Identification:






The load compartment fuse and relay box is installed in the load compartment on the right of the wheelhouse.

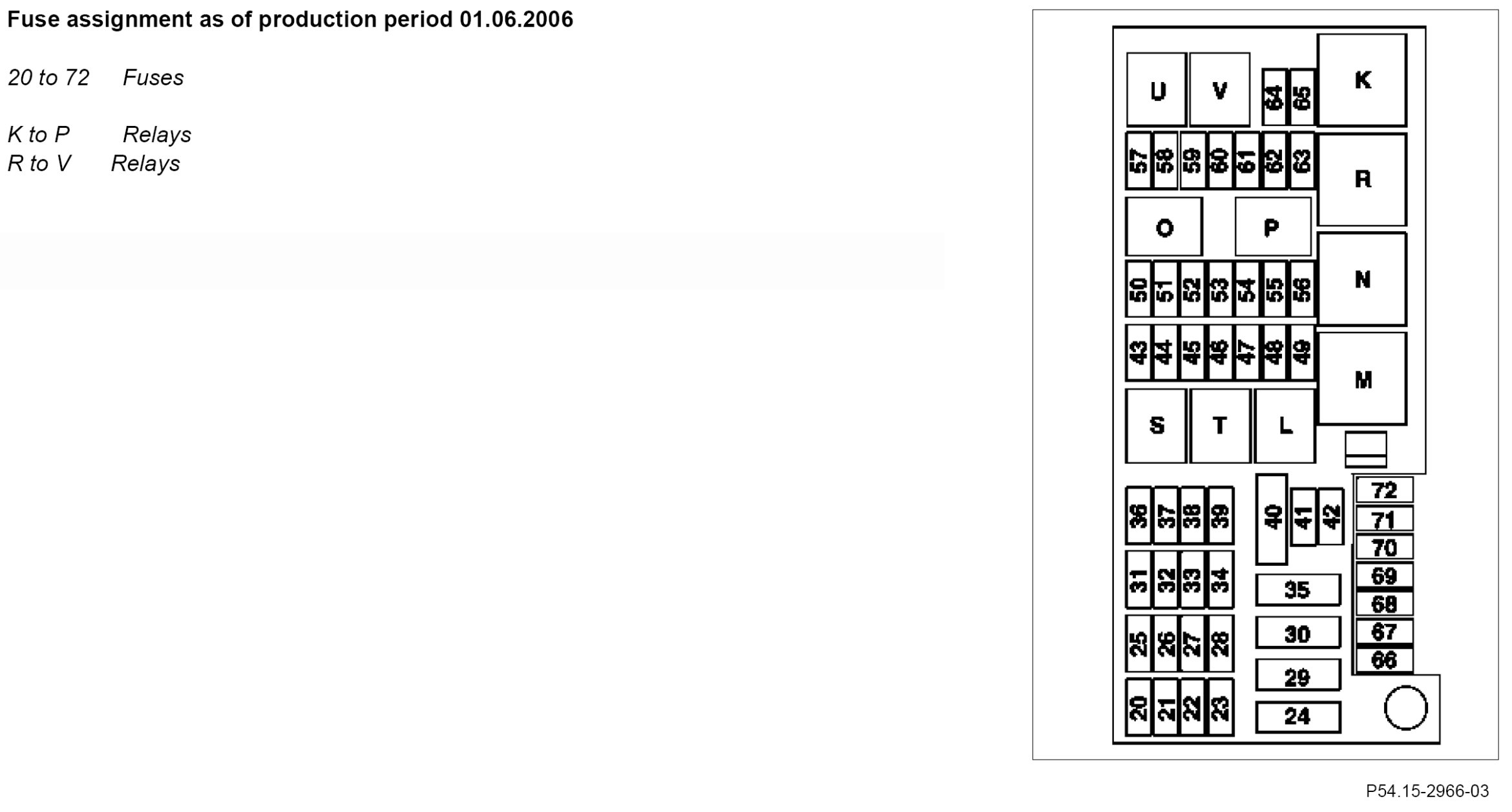

Component Identification:






The load compartment fuse and relay box is installed in the load compartment on the right of the wheelhouse.
