AR03.20-P-4351-02PI Tightening Diagram of Crankshaft Bearing Caps

AR03.20-P-4351-02PI Tightening diagram of crankshaft bearing caps

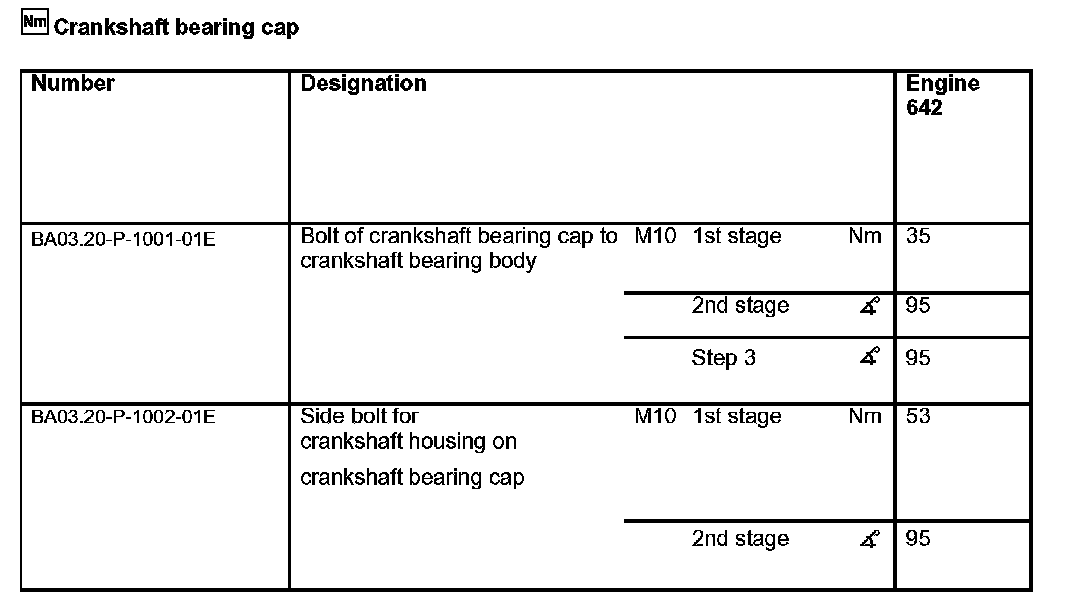

Crankshaft bearing cap:

Component Identification:

1 Moisten the thread and head contact surface of the bolts of the crankshaft bearing caps with oil.
2 Tighten the bolts of the crankshaft bearing caps as specified in the tightening diagram.
3 Tighten the bolts of the crankcase to the crankshaft bearing cap as specified in the tightening diagram.
4 Turn the crankshaft.
To inspect ease of operation.
