Mercedes Benz Truck
>>
2007
>>
ML 320 CDI (164.122) V6-3.0L DSL Turbo (642.940)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Description and Operation
Wheel Speed Sensor: Description and Operation

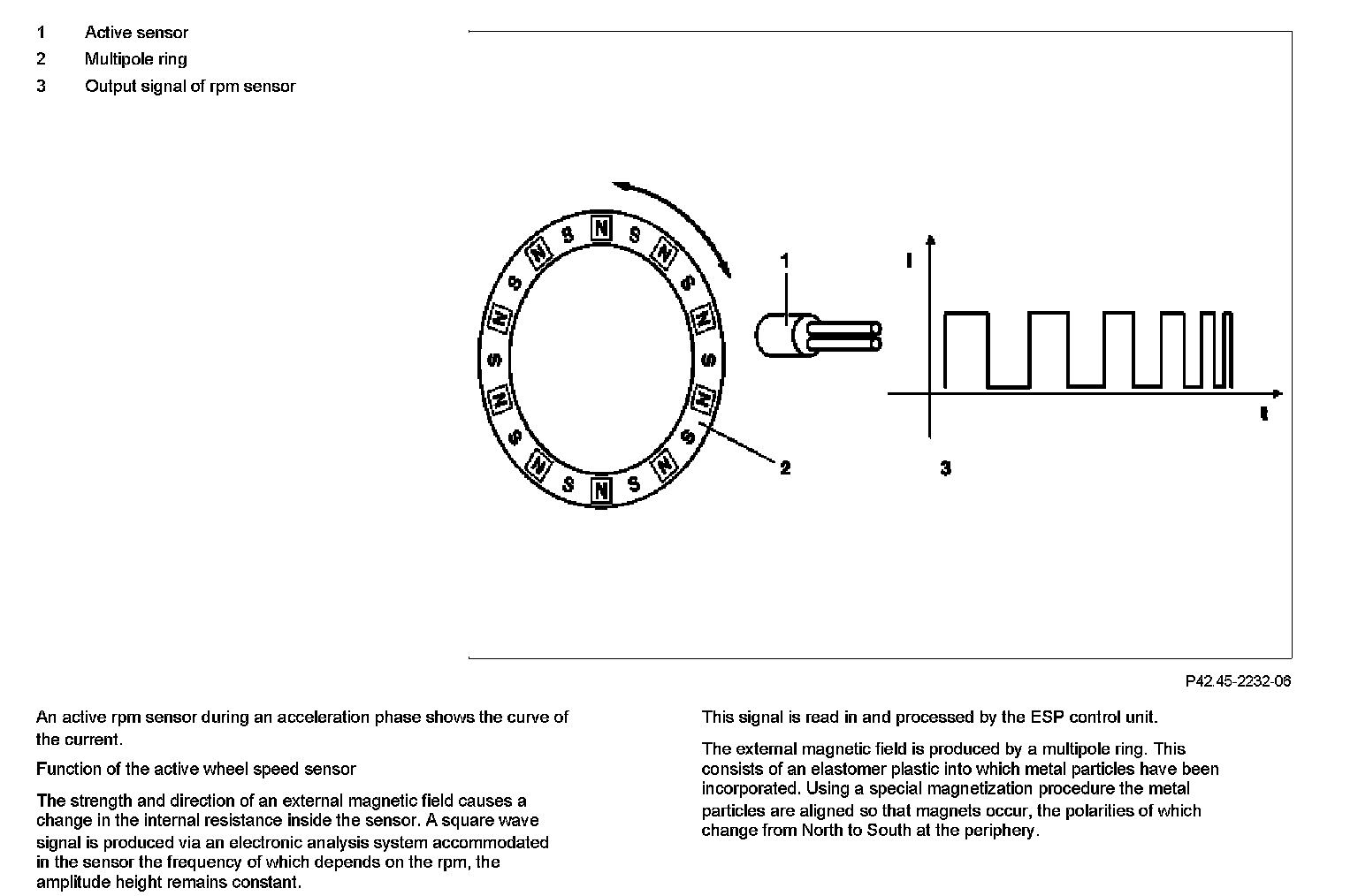

GF42.45-P-5134GZ Wheel rpm sensor, component description

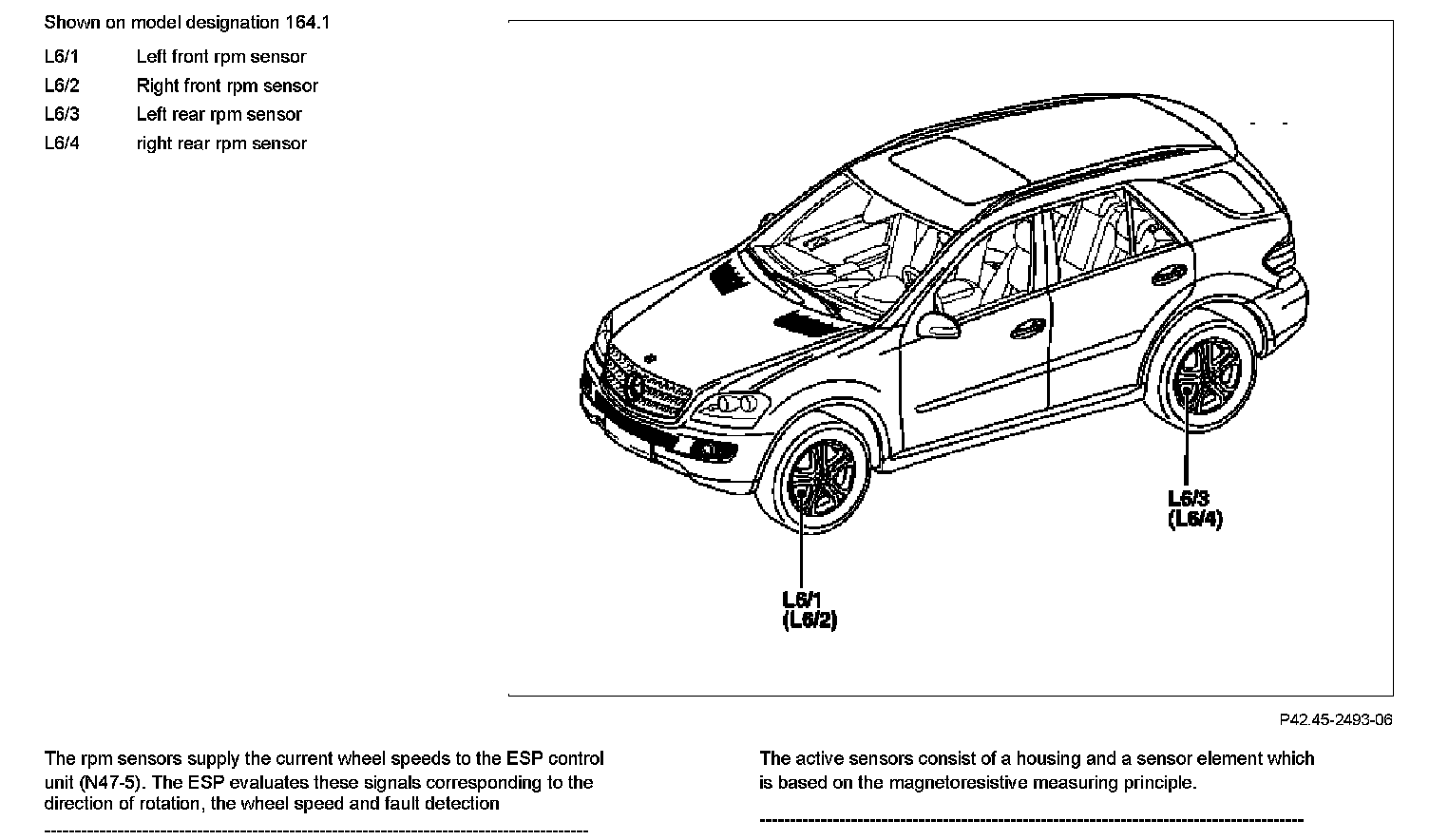

Component Identification:
Component Identification:
