Vacuum/Pressure Pump Switch: Service and Repair

AR91.25-P-1720GZ Remove/Install Multicontour Seat Switch
- with CODE (404) Left multicontour seat
- with CODE (405) Right multicontour seat

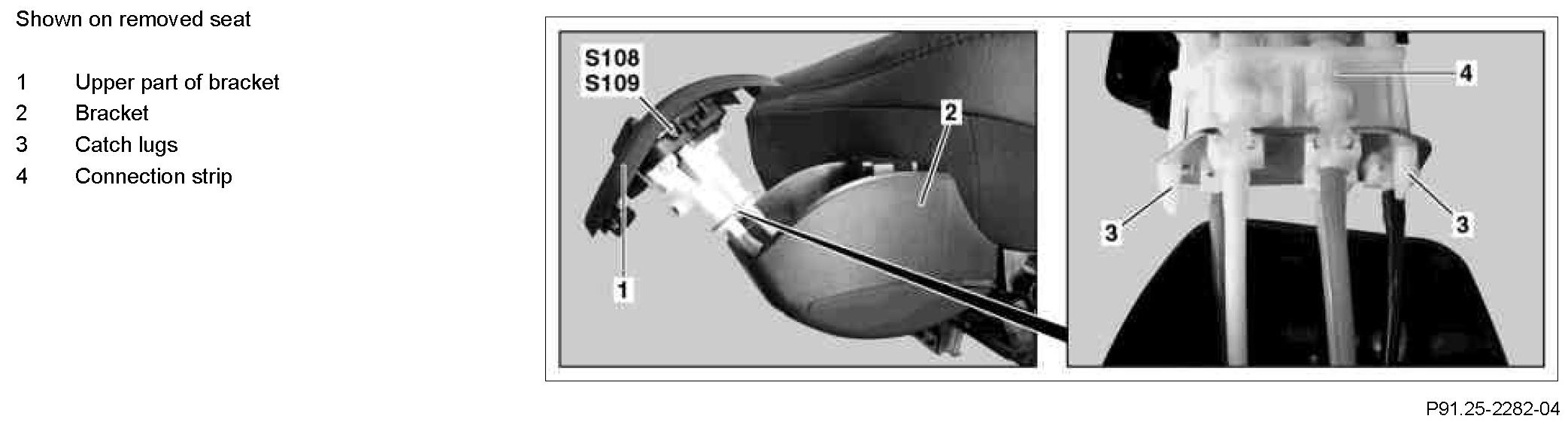

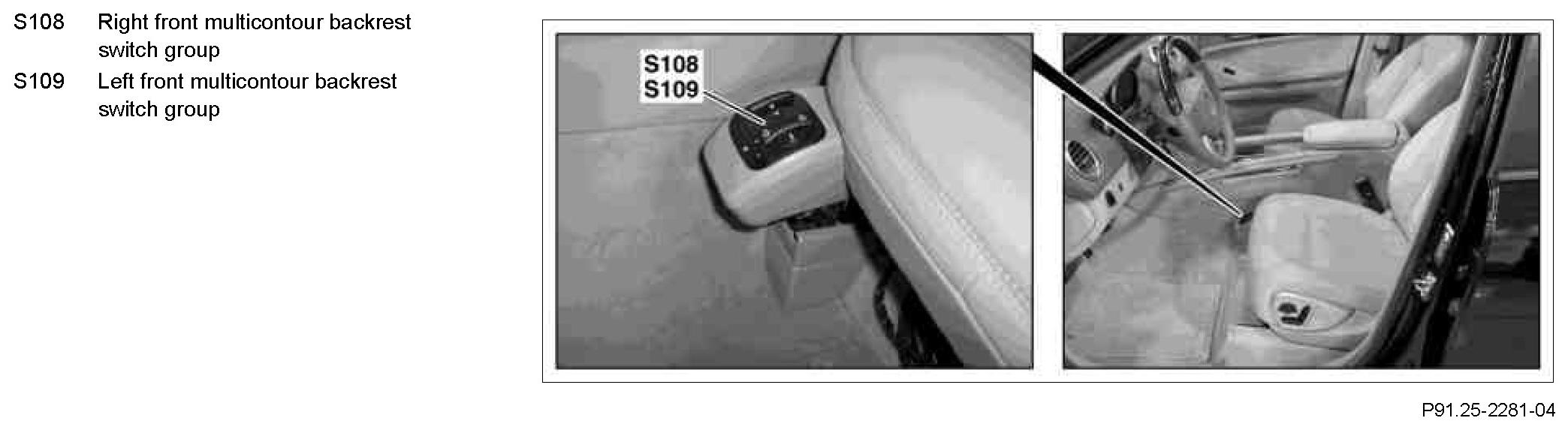

Component Identification:

Component Identification:

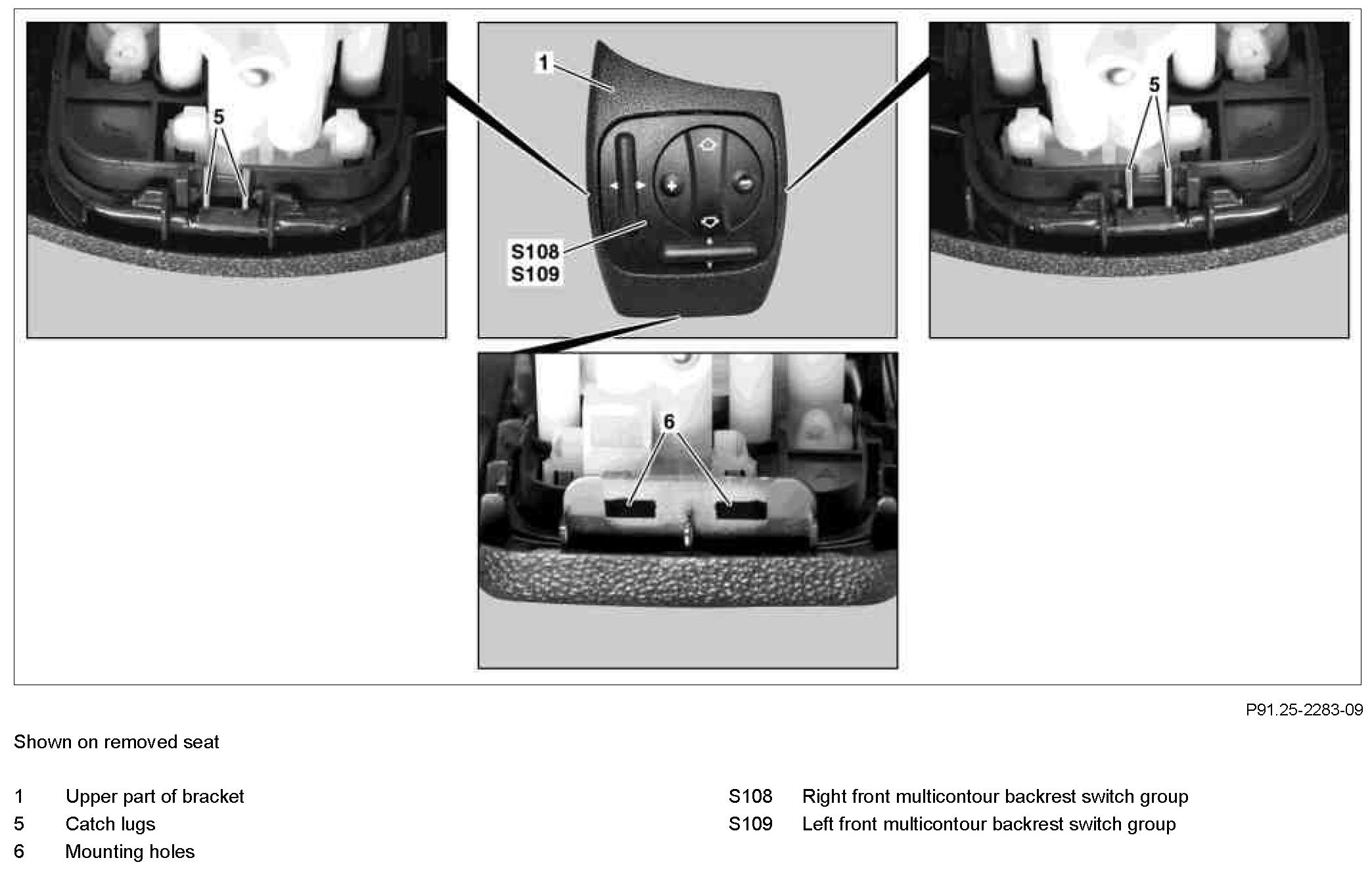

Component Identification:

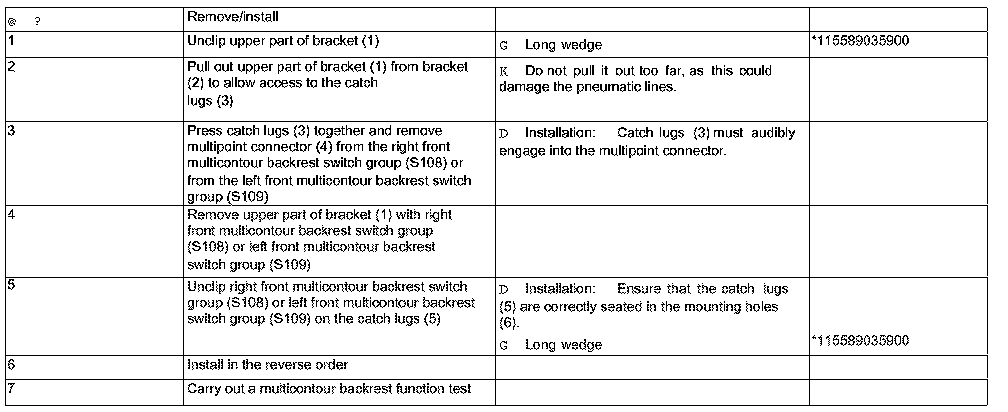

Steps 1 - 7:

Special Tools:
