Navigation Module: Service and Repair



AR82.85-P-7373GZ Remove/Install Navigation Processor
- 164.### #A up to 441247

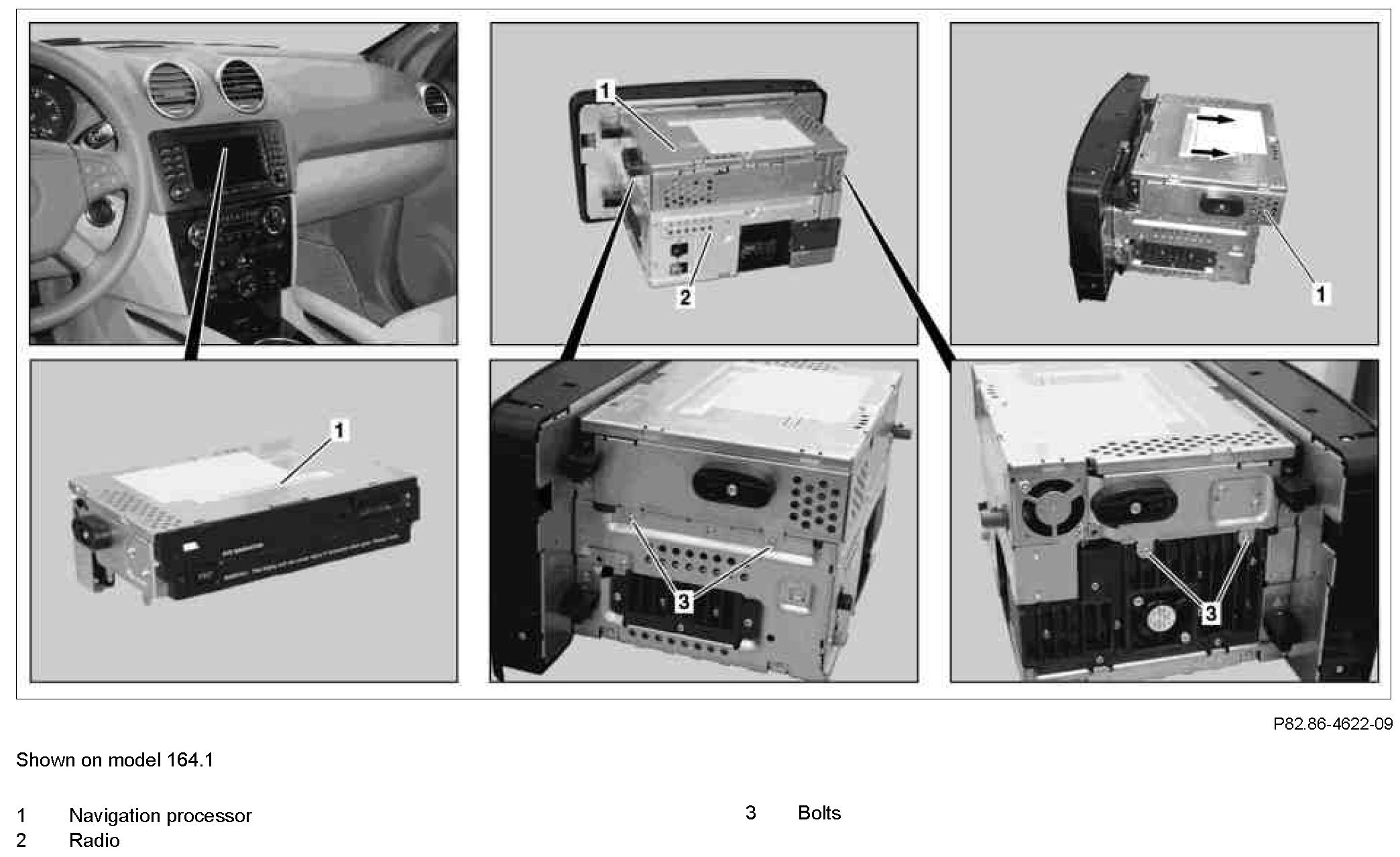

Component Identification:

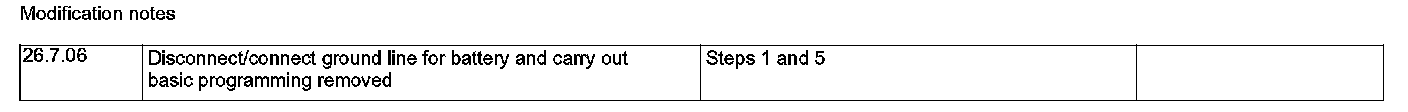

Modification Notes:

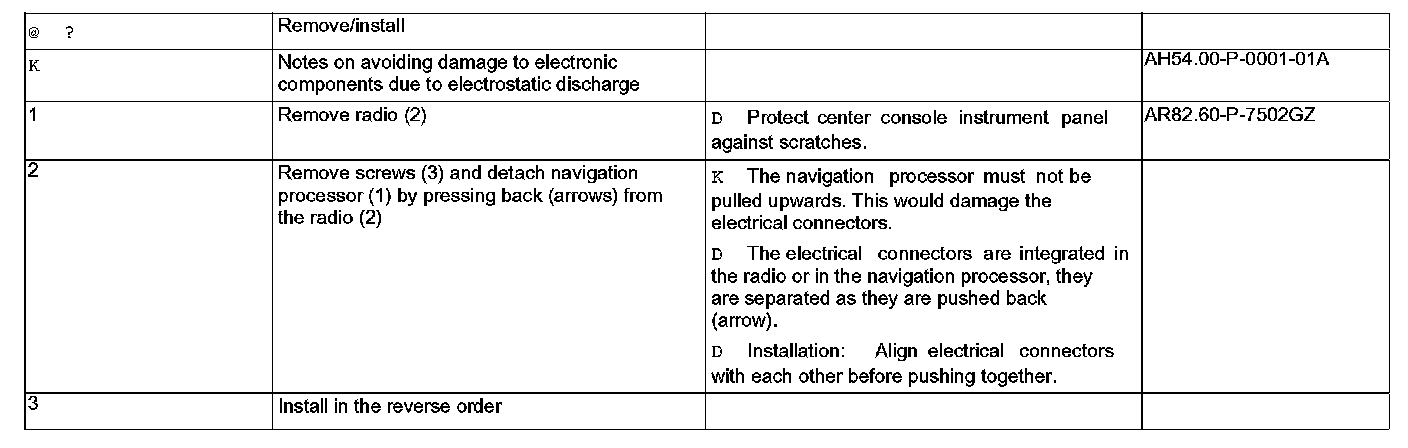

Steps 1 - 3:
